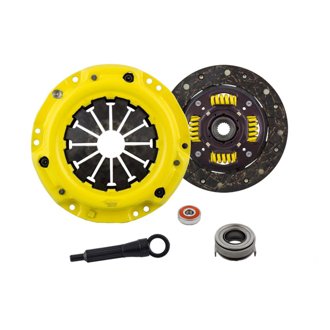

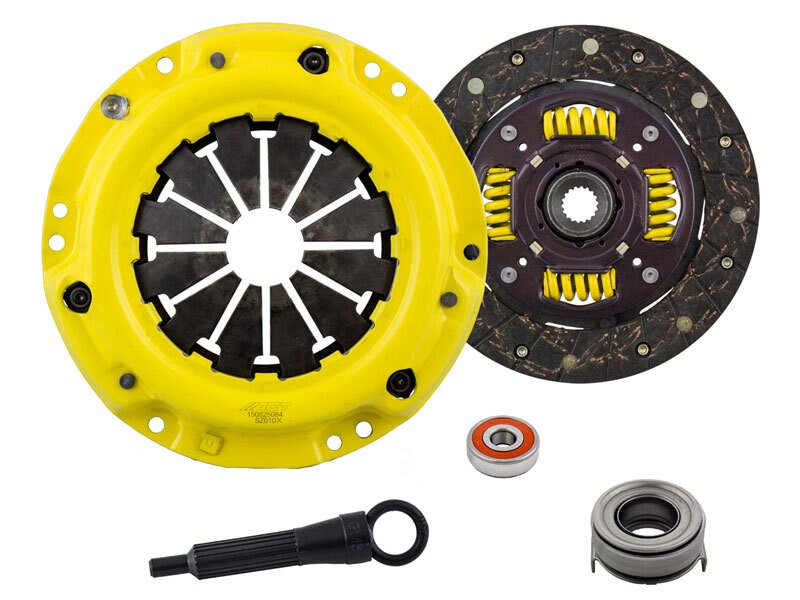

SZ1-XTMM kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT Modified spring-centered street discs feature premium organic friction material with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. Modified street discs allow for quicker shifting and engagement. Quiet operation with increased strength and reliability.
This part fits the following vehicles.
| Alignment Tool Included | Yes |
|---|---|
| Clutch Disc Diameter | 190 |
| Clutch Master Cylinder Included | No |
| Clutch Slave Cylinder Included | No |
| Country Of Origin | JP |
| Disc Material | Organic |
| Disc Type Sprung Solid | Solid |
| Flywheel Bolts Included | No |
| Grade Type | Performance |
| Grease Included | Yes |
| Input Shaft Diameter | 0.75 |
| Input Spline Quantity | 18 |
| Pilot Bearing Included | Yes |
| Pilot Bushing Included | No |
| Pressure Plate Bolts Included | No |
| Pressure Plate Type | Xtreme |
| Product Weight (lbs.) | 8.8 |
| Release Bearing Included | Yes |
| Street Legal | No |
| Torque Capacity (ft/lbs.) | 225 |
| Torque Capacity Over OE | 95% |
12 Months
Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
