Act Extreme Performance Street Sprung Clutch Kit

Name: Act Extreme Performance Street Sprung Clutch Kit
Brand: Advanced Clutch
SKU: 107254757
Price: 1254.00 USD
Availability: InStock

Part Number SB12-XTSS (107254757)

$1,254.00 ~~$1,548.00~~ SAVE 18%

In stockShips by 7th Oct

Select vehicle for guaranteed fit

Description

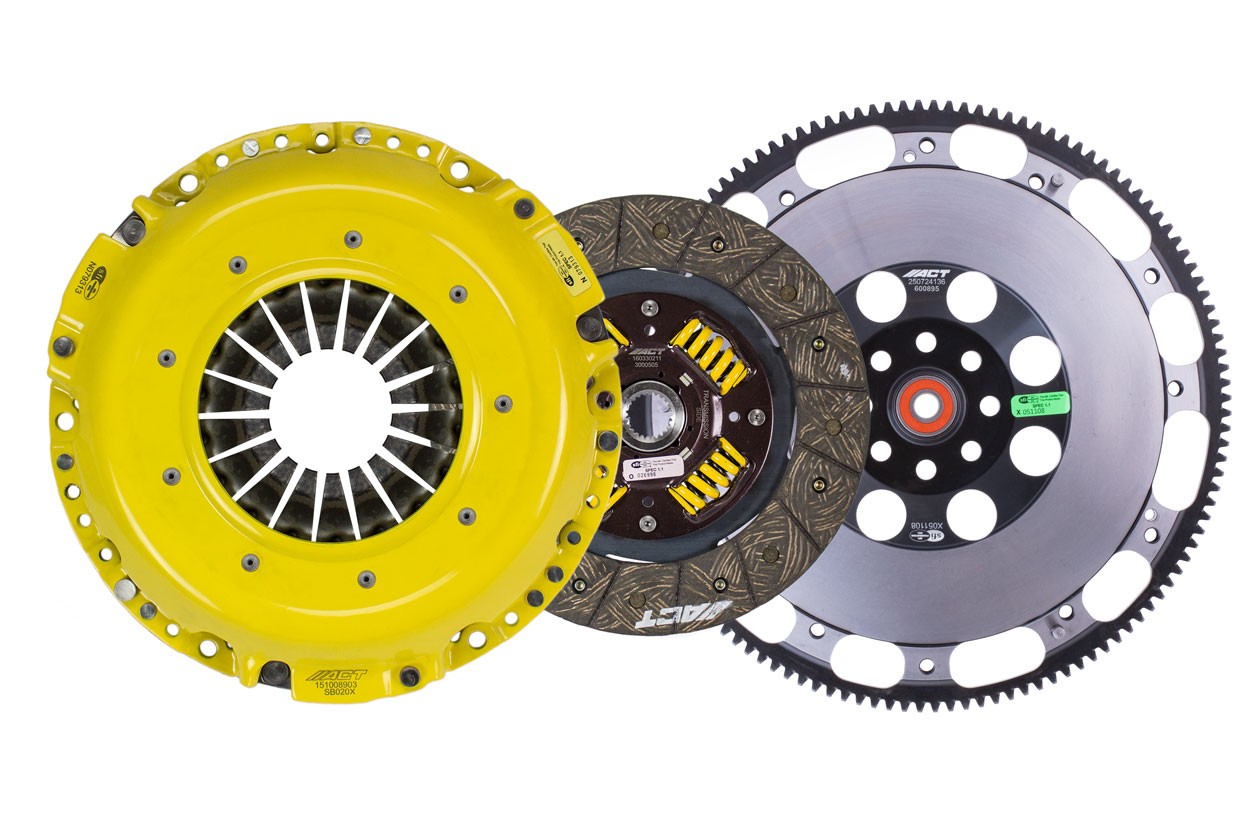

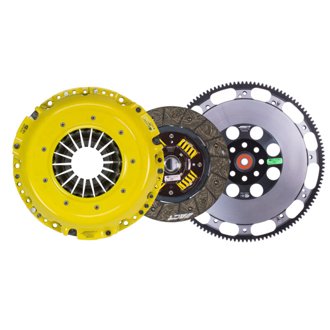

SB12-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Fitment

This part fits the following vehicles.

2005-2009 Subaru Outback
2005-2012 Subaru Legacy
2006-2008 Subaru Forester
2006-2014 Subaru Impreza
2006 Subaru Baja
2012-2026 Subaru WRX

Features & benefits

"Excellence in Performance", backed by the best one-year warranty in the industry!

Specifications

Alignment Tool Included	Yes
Clutch Disc Diameter	240
Clutch Master Cylinder Included	No
Clutch Slave Cylinder Included	No
Country Of Origin	US
Disc Material	Organic
Disc Type Sprung Solid	Sprung
Flywheel Bolts Included	No
Flywheel Included	Yes
Flywheel Type	Prolite
Grade Type	Performance
Grease Included	Yes
Input Shaft Diameter	1
Input Spline Quantity	24
Part Fitment Requirement	240mm upgrade. Pressure plate bolts included (M8-1.25 x 16mm).
Pilot Bearing Included	Yes
Pilot Bushing Included	No
Pressure Plate Bolts Included	Yes
Pressure Plate Type	Xtreme
Product Weight (lbs.)	24.3
Release Bearing Included	Yes
Street Legal	No
Torque Capacity (ft/lbs.)	532
Torque Capacity Over OE	72%

Warranty

12 Months

Videos and guides

Warranty PDF Installation Instructions PDF

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
