ACT Extreme Race Rigid 4 Pad Clutch Kit

Name: ACT Extreme Race Rigid 4 Pad Clutch Kit
Brand: Advanced Clutch
SKU: 107254530
Price: 1546.00 USD
Availability: OutOfStock

Part Number BM12-XTR4 (107254530)

$1,546.00 ~~$1,909.00~~ SAVE 19%

Out of stock

Select vehicle for guaranteed fit

Description

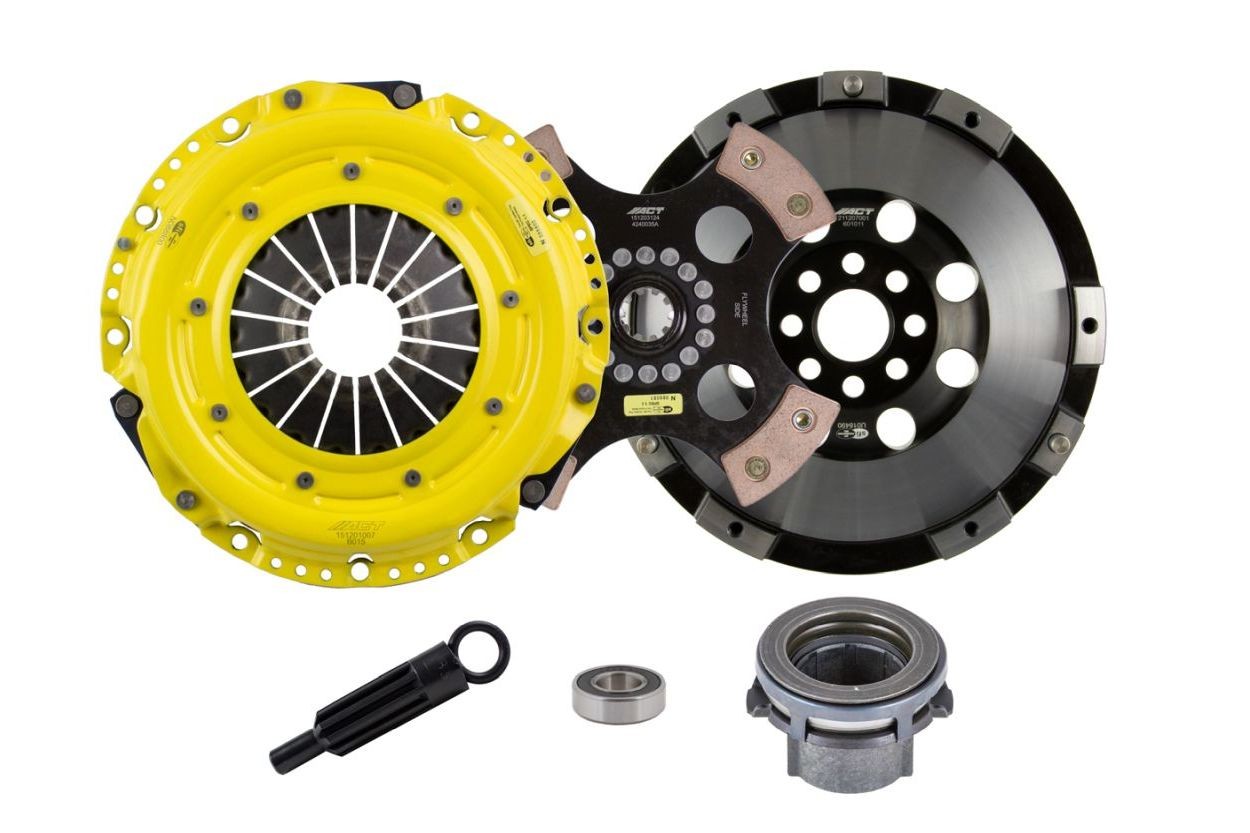

BM12-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Fitment

This part fits the following vehicles.

1991-1995, 2001-2003 BMW 525i
1992-1995, 2001-2003 BMW 325i
1992-1995 BMW 325is
1996-1999 BMW 318i
1996-1999 BMW 318is
1996-1999 BMW 318ti
1996-1999 BMW 328is
1996-1999 BMW M3
1996-2000 BMW 328i
1996-2002 BMW Z3
1997-2000 BMW 528i
1998-1999 BMW 323is
1998-2000 BMW 323i
2000 BMW 323Ci
2000 BMW 328Ci
2001-2003 BMW 325Ci
2001-2003 BMW 325xi
2001-2003 BMW 330Ci
2001-2003 BMW 330i
2001-2003 BMW 330xi
2001-2003 BMW 530i

Features & benefits

"Excellence in Performance", backed by the best one-year warranty in the industry!

Specifications

Alignment Tool Included	Yes
Clutch Disc Diameter	240
Clutch Master Cylinder Included	No
Clutch Slave Cylinder Included	No
Country Of Origin	US
Disc Material	Ceramic
Disc Type Sprung Solid	Solid
Flywheel Bolts Included	Yes
Flywheel Included	Yes
Flywheel Type	Streetlite
Grade Type	Performance
Grease Included	Yes
Input Shaft Diameter	1.125
Input Spline Quantity	10
Part Fitment Requirement	Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M12-1.5 x 30mm). Pressure plate bolts included (M8-1.25 x 20mm).
Pilot Bearing Included	Yes
Pilot Bushing Included	No
Pressure Plate Bolts Included	Yes
Pressure Plate Type	Xtreme
Product Weight (lbs.)	28.6
Release Bearing Included	Yes
Street Legal	No
Torque Capacity (ft/lbs.)	702
Torque Capacity Over OE	129%

Warranty

12 Months

Videos and guides

Warranty PDF Installation Instructions PDF
