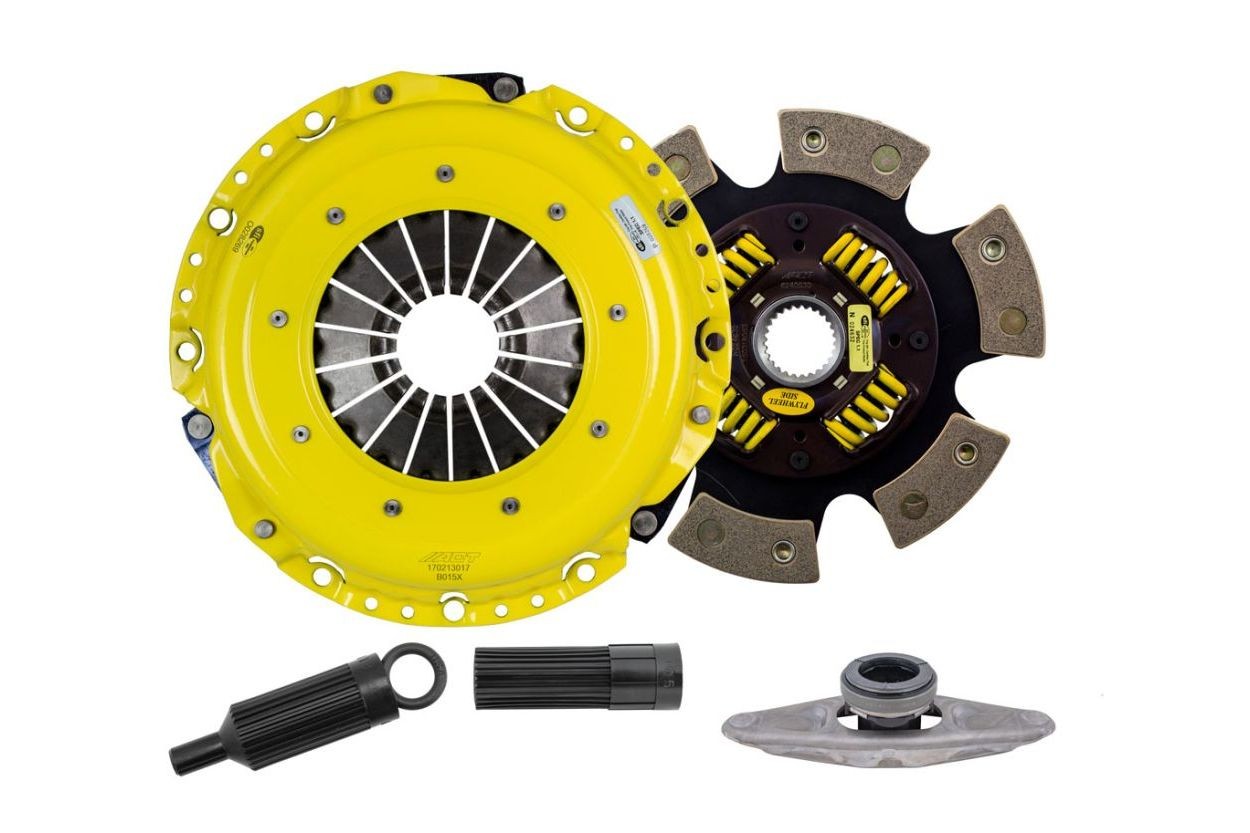

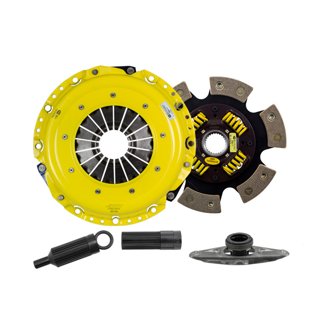

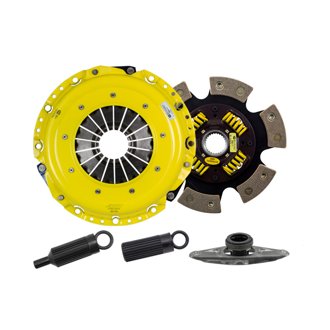

ACT Extreme Race Sprung 6 Pad Clutch Kit

Name: ACT Extreme Race Sprung 6 Pad Clutch Kit
Brand: Advanced Clutch
SKU: 107254477
Price: 962.00 USD
Availability: InStock

Part Number BM14-XTG6 (107254477)

$962.00 ~~$1,188.00~~ SAVE 19%

In stockShips by 6th Oct

Select vehicle for guaranteed fit

Description

BM14-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Fitment

This part fits the following vehicles.

2007-2008 BMW 335xi
2007-2015 BMW 335i
2008-2013 BMW 135i
2008-2014 BMW 535i
2008 BMW 535xi
2009-2010 BMW 535i xDrive
2009-2015 BMW 335i xDrive
2009-2016 BMW Z4
2011-2013 BMW 335is
2014-2016 BMW 435i
2014-2016 BMW 435i xDrive

Features & benefits

"Excellence in Performance", backed by the best one-year warranty in the industry!

Specifications

Alignment Tool Included	Yes
Clutch Disc Diameter	240
Clutch Master Cylinder Included	No
Clutch Slave Cylinder Included	No
Country Of Origin	US
Disc Material	Ceramic
Disc Type Sprung Solid	Sprung
Flywheel Bolts Included	No
Flywheel Included	No
Grade Type	Performance
Grease Included	Yes
Input Shaft Diameter	1.375
Input Spline Quantity	26
Part Fitment Requirement	Must be used with ACT flywheel (not included). Pressure plate bolts included (M8-1.25 x 20mm).
Pilot Bearing Included	No
Pilot Bushing Included	No
Pressure Plate Bolts Included	Yes
Pressure Plate Type	Xtreme
Product Weight (lbs.)	16.5
Release Bearing Included	Yes
Street Legal	No
Torque Capacity (ft/lbs.)	702
Torque Capacity Over OE	129%

Warranty

12 Months
