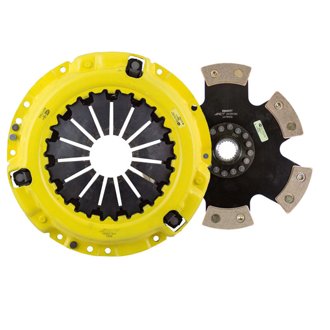

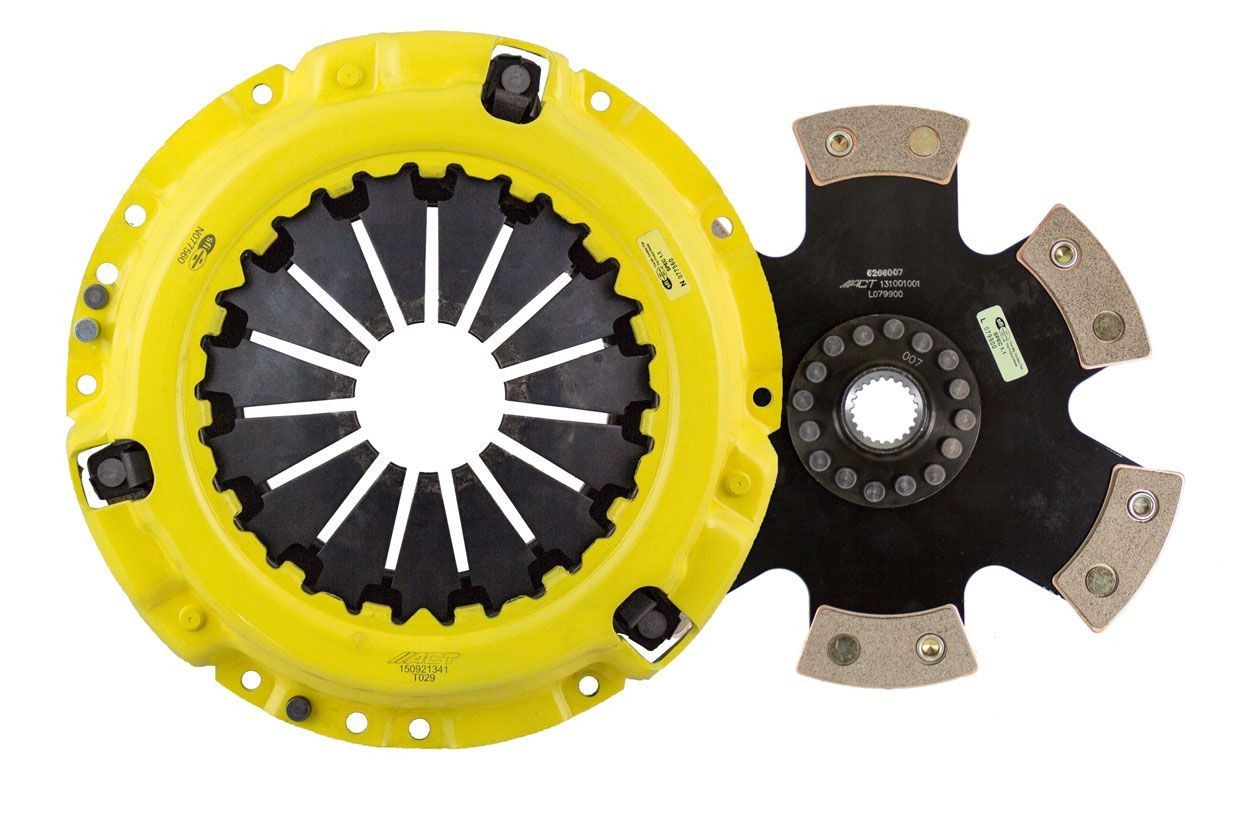

ACT Heavy Duty Off-Road Race Rigid 6 Pad Clutch Kit
Description
TA3-HDR6 kit features ACT's highly regarded Heavy Duty pressure plate and rigid 6 pad race disc delivering high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s rigid center 6 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.
Fitment
This part fits the following vehicles.
- 2005-2006 Toyota Tundra
- 2005-2015 Toyota Tacoma
- 2007-2014 Toyota FJ Cruiser
Features & benefits
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
| Alignment Tool Included | No |
|---|---|
| Clutch Disc Diameter | 266 |
| Clutch Master Cylinder Included | No |
| Clutch Slave Cylinder Included | No |
| Country Of Origin | JP |
| Disc Material | Ceramic |
| Disc Type Sprung Solid | Solid |
| Flywheel Bolts Included | No |
| Flywheel Included | No |
| Grade Type | Performance |
| Grease Included | Yes |
| Input Shaft Diameter | 1.125 |
| Input Spline Quantity | 21 |
| Pilot Bearing Included | No |
| Pilot Bushing Included | No |
| Pressure Plate Bolts Included | No |
| Pressure Plate Type | Heavy Duty |
| Product Weight (lbs.) | 20.6 |
| Release Bearing Included | No |
| Street Legal | No |
| Torque Capacity (ft/lbs.) | 585 |
| Torque Capacity Over OE | 69% |
Warranty
12 Months
