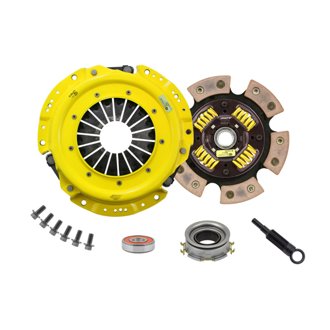

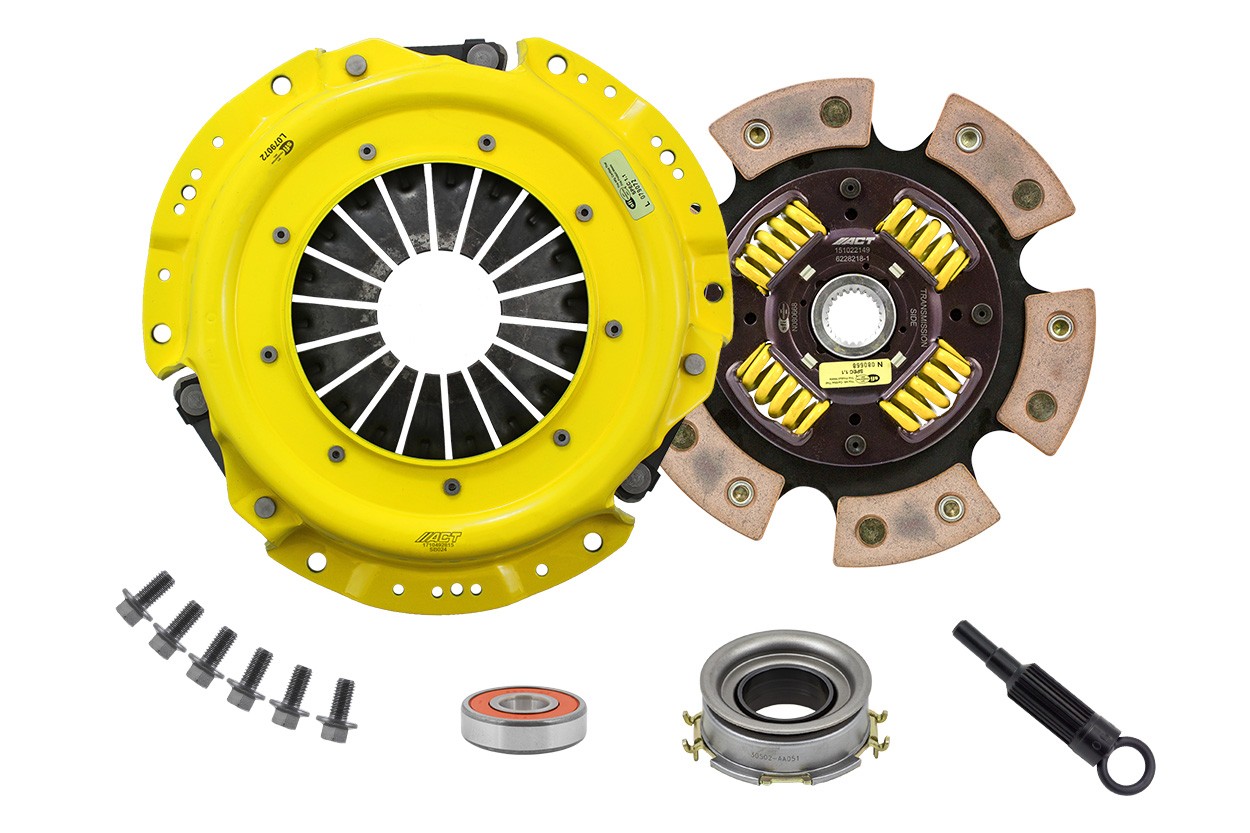

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit
Description
SB7-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Fitment
This part fits the following vehicles.
- 2013-2016 Scion FR-S
- 2013-2020 Subaru BRZ
- 2017-2020 Toyota 86
Features & benefits
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
| Alignment Tool Included | Yes |
|---|---|
| Clutch Disc Diameter | 224 |
| Clutch Master Cylinder Included | No |
| Clutch Slave Cylinder Included | No |
| Country Of Origin | KR |
| Disc Material | Ceramic |
| Disc Type Sprung Solid | Sprung |
| Flywheel Bolts Included | Yes |
| Flywheel Included | Yes |
| Flywheel Type | Streetlite |
| Grade Type | Performance |
| Grease Included | Yes |
| Input Shaft Diameter | 1 |
| Input Spline Quantity | 24 |
| Part Fitment Requirement | Pressure plate bolts included (M8-1.25 x 16mm). |
| Pressure Plate Bolts Included | No |
| Pressure Plate Type | Heavy Duty |
| Product Weight (lbs.) | 15.6 |
| Release Bearing Included | Yes |
| Street Legal | No |
| Torque Capacity (ft/lbs.) | 394 |
| Torque Capacity Over OE | 142% |
Warranty
12 Months
