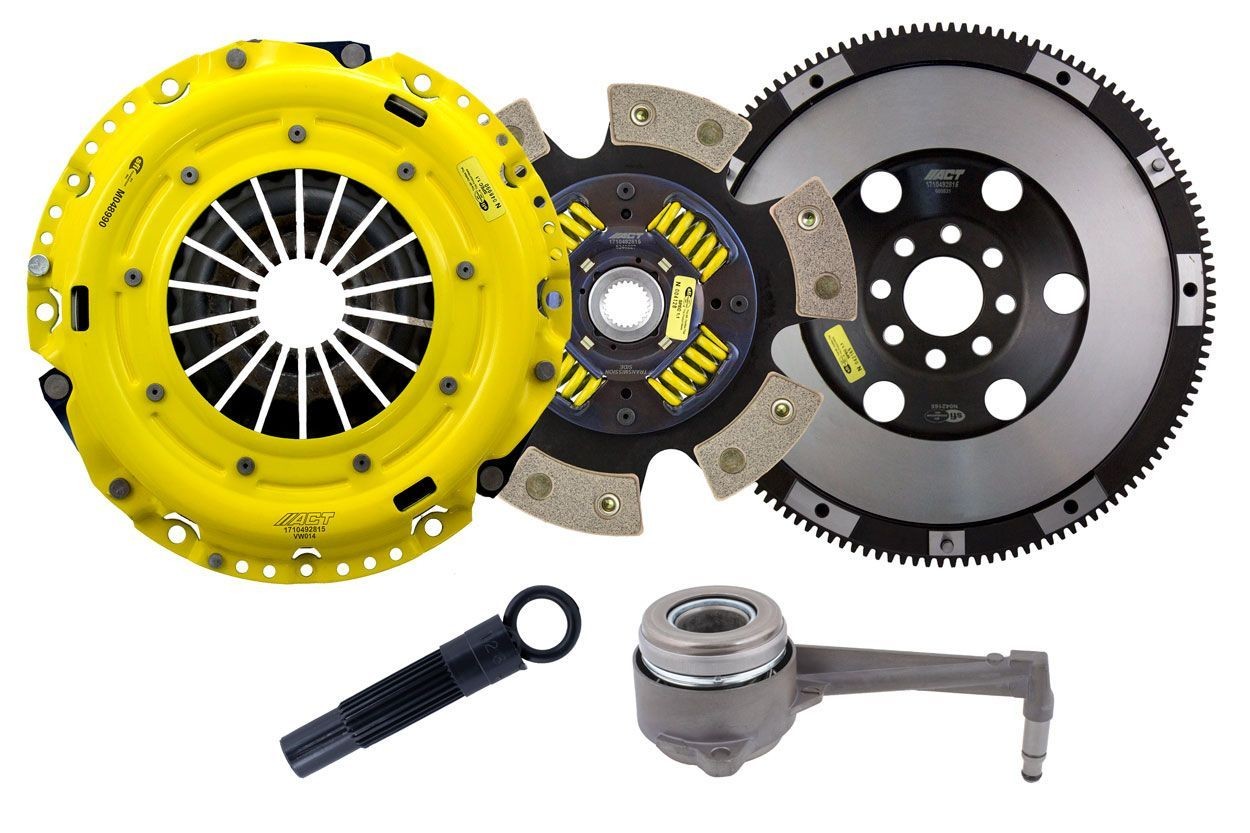

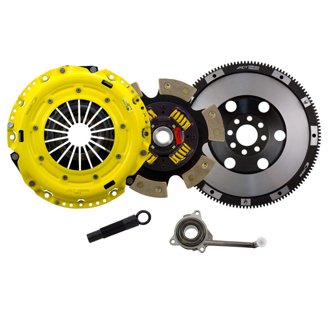

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit

Name: ACT Heavy Duty Race Sprung 6 Pad Clutch Kit
Brand: Advanced Clutch
SKU: 107254308
Price: 1554.00 USD
Availability: InStock

Part Number VW8-HDG6 (107254308)

$1,554.00 ~~$1,919.00~~ SAVE 19%

In stockShips by 6th Oct

Select vehicle for guaranteed fit

Description

VW8-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Fitment

This part fits the following vehicles.

2008-2010, 2012-2018 Volkswagen Jetta
2008-2013 Audi A3
2008-2014 Volkswagen GTI
2009-2010 Volkswagen Passat CC
2009-2011 Volkswagen Eos
2009-2016 Volkswagen CC
2012-2016 Volkswagen Beetle
2013 Volkswagen Golf

Features & benefits

"Excellence in Performance", backed by the best one-year warranty in the industry!

Specifications

Alignment Tool Included	Yes
Clutch Disc Diameter	240
Clutch Master Cylinder Included	No
Clutch Slave Cylinder Included	No
Country Of Origin	US
Disc Material	Ceramic
Disc Type Sprung Solid	Sprung
Flywheel Bolts Included	Yes
Flywheel Included	Yes
Flywheel Type	Streetlite
Grade Type	Performance
Grease Included	Yes
Input Shaft Diameter	0.9375
Input Spline Quantity	23
Part Fitment Requirement	Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 22mm). Pressure plate bolts included (M7-1.0 x 18mm).
Pressure Plate Bolts Included	Yes
Pressure Plate Type	Heavy Duty
Product Weight (lbs.)	29.9
Release Bearing Included	Yes
Street Legal	No
Torque Capacity (ft/lbs.)	505
Torque Capacity Over OE	66%

Warranty

12 Months

Videos and guides

Warranty PDF Installation Instructions PDF

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
