ACT Mod-Twin 225 Max Extreme Sprung Race Clutch Kit

Name: ACT Mod-Twin 225 Max Extreme Sprung Race Clutch Kit
Brand: Advanced Clutch
SKU: 107254519
Price: 1925.00 USD
Availability: OutOfStock

Part Number T3R-S05 (107254519)

$1,925.00 ~~$2,377.00~~ SAVE 19%

Out of stock

Select vehicle for guaranteed fit

Description

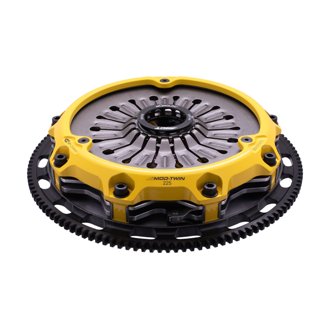

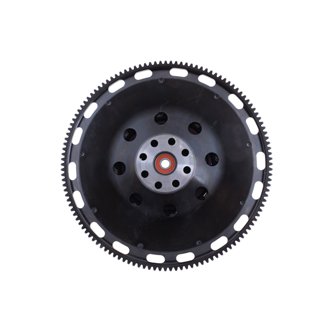

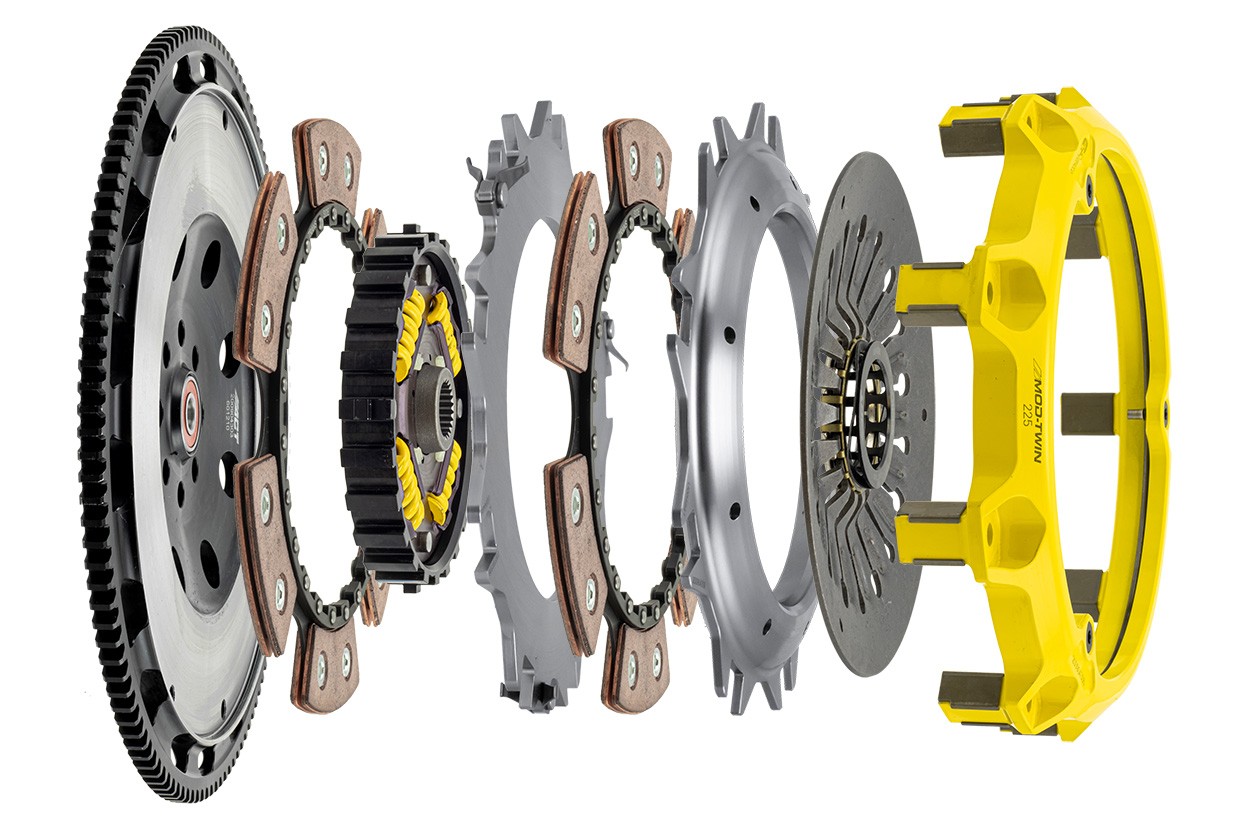

T3R-S05 Mod-Twin 225 XX Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWD’s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent pedal feel requiring moderate effort. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Fitment

This part fits the following vehicles.

2004-2014 Subaru Impreza
2013-2016 Subaru WRX
2013-2021 Subaru WRX STI

Features & benefits

"Excellence in Performance", backed by the best one-year warranty in the industry!

Specifications

Alignment Tool Included	Yes
Clutch Disc Diameter	225
Clutch Master Cylinder Included	No
Clutch Slave Cylinder Included	No
Country Of Origin	US
Disc Material	Ceramic
Disc Type Sprung Solid	Sprung
Flywheel Bolts Included	No
Flywheel Included	Yes
Grade Type	Performance
Grease Included	Yes
Input Shaft Diameter	1
Input Spline Quantity	23
Pilot Bearing Included	Yes
Pilot Bushing Included	No
Pressure Plate Bolts Included	No
Pressure Plate Type	Maxx Xtreme
Product Weight (lbs.)	28.1
Release Bearing Included	Yes
SFI	1.2
Street Legal	No
Torque Capacity (ft/lbs.)	1340
Torque Capacity Over OE	275%

Warranty

12 Months

Videos and guides

Warranty PDF Installation Instructions PDF

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
