Act Triple Disc Extreme Sintered Iron Race Clutch Kit
Description

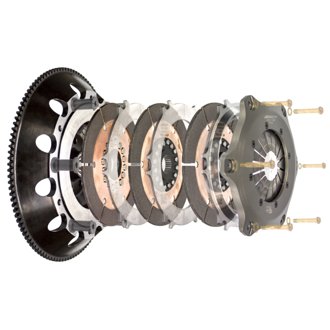

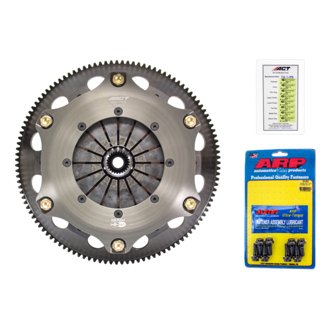

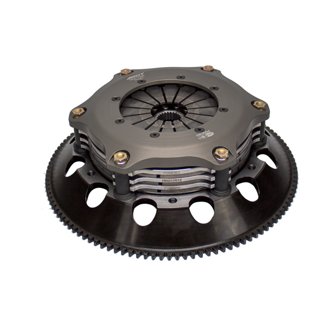

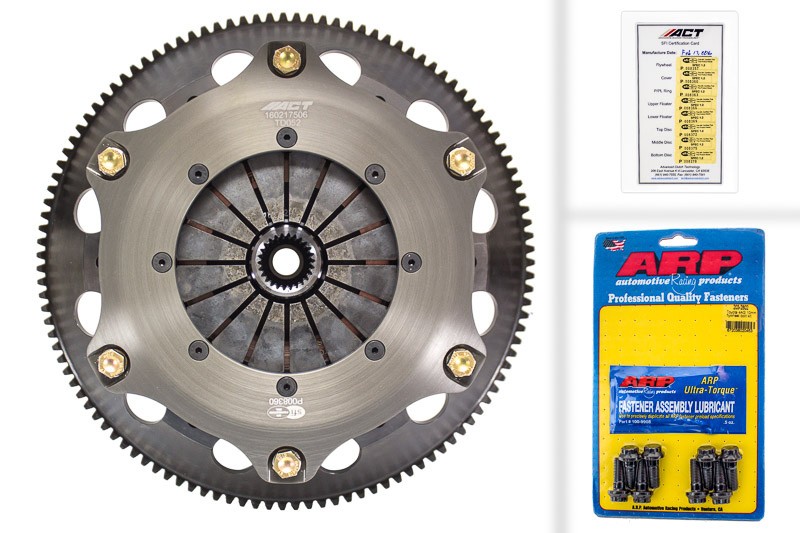

T2R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.
Features & benefits
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
| Alignment Tool Included | Yes |
|---|---|
| Clutch Disc Diameter | 184 |
| Clutch Master Cylinder Included | No |
| Clutch Slave Cylinder Included | No |
| Country Of Origin | US |
| Disc Material | Sintered Iron |
| Disc Type Sprung Solid | Solid |
| Flywheel Bolts Included | Yes |
| Flywheel Included | Yes |
| Grade Type | Performance |
| Grease Included | Yes |
| Input Shaft Diameter | 1.125 |
| Input Spline Quantity | 26 |
| Part Fitment Requirement | Developed for use with 2JZ-GTE engine using G-Force transmission, quicktime bell housing #RM-4031 without block plate and Tilton hydraulic release bearing # 60-4420. Flywheel bolts included (M10-1.25 X 25mm). |
| Pilot Bearing Included | No |
| Pilot Bushing Included | No |
| Pressure Plate Bolts Included | No |
| Pressure Plate Type | Xtreme |
| Product Weight (lbs.) | 23.0 |
| Release Bearing Included | No |
| SFI | 1.2 |
| Street Legal | No |
| Torque Capacity (ft/lbs.) | 1569 |
Warranty
12 Months
