Baja Designs

BAJ Powersports S1 Lights

Part Number 507097 (132671671)

UPC: 810031741847

Package contents: 1 Each per Box

Color

$366.95

Out of stock

Description

The Baja Designs S1 Moto kit was designed with the enthusiast in mind! This kit requires very little power to run and can be ridden off of as sole headlight or as an addition to our other headlight kits.

The bracketry is sturdy and allows for you to mount off of the forks of most dirt bikes. Installation is a breeze and everything you need to take on the night is included! US Patent Number 11273751.

• Satisfaction Guarantee, 30-Day Money Back Guarantee
• Limited Lifetime Warranty, Complete Purchase Protection
• uService, Replaceable Lenses And Optics
• ClearView, All The Light, Right Where You Need It
• MoistureBlock, Waterproof, Rain Proof, Submersible
• CopperDrive, Only LED Driven At 100 Percent
• 5000K Daylight, Less Driver Fatigue, Natural Color

Features & benefits

Limited Lifetime Warranty - Complete Purchase Protection
ClearView - All The Light, Right Where You Need It
uService - Replaceable Lenses And Optics
Satisfaction Guarantee – 30-Day Money Back Guarantee

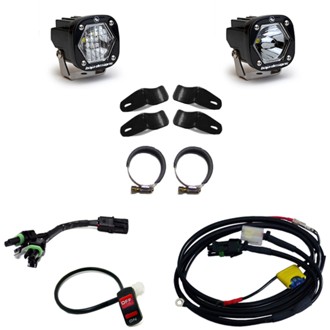

Two Light Pods, Mounts, Hardware, Wiring Harness

Specifications

Amperage Rating (A)	1.420 specifications
Average Rated Life (hr.)	49,930 specifications
Beam Pattern	Driving/Combo; Wide Cornering specifications
Bezel Material	Billet Machined Aluminum specifications
Bracket Material	Stainless Steel
Brackets Included	Yes
Brightness (Lumens)	2320 specifications
Color	Clear
Country Of Origin	USA
Depth (in.)	2.100 dimensions
Description	Multi-Pattern; Clear; Universal Battery specifications
Finish	Hard Anodized
Height (in.)	2.100 dimensions
Housing Color	Black specifications
Housing Material	Hard Anodized and Powder Coated Cast Aluminum specifications
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Length (in.)	2.100 dimensions
Lens Color	Clear specifications
Lens Material	Hardcoated Polycarbonate specifications
Life Span Expectancy	49,930 Hours
Light Quantity	2 specifications
Lighting Modes	Beam specifications
Lighting Quantity	1 specifications
Lighting Technology	LED specifications
Lighting Type	Forward Projecting specifications
Mounting Hardware Description	Mounting Brackets specifications
Mounting Hardware Included	Yes specifications
Mounting Hardware Material	Stainless Steel specifications
Overvoltage Protection	Built-In specifications
Product Type	Moto S1 Universal Battery Auxiliary Light Kit specifications
Sold As	Kit
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing) standards & complian
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian
Universal	Yes
UPC	810031741847
Voltage	9-28 specifications
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Wattage (W)	19.596 specifications
Weight (lbs.)	0.400 dimensions
Wiring Harness Description	Applicable Wiring for a bike with battery specifications
Wiring Harness Included	Yes specifications
