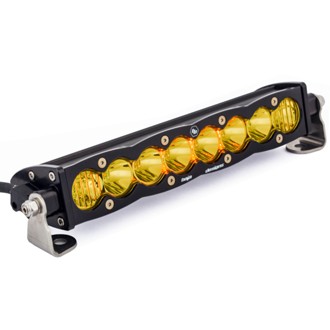

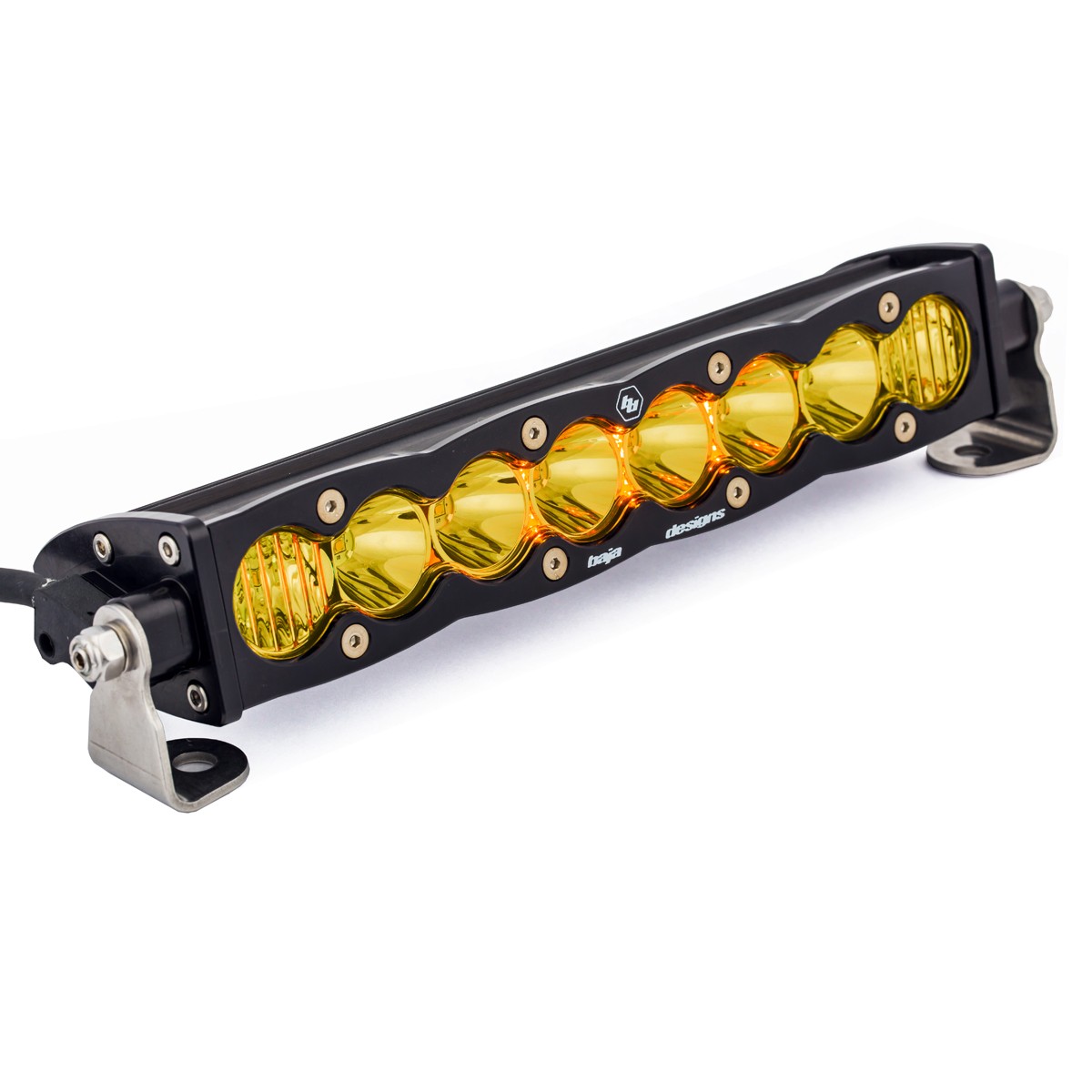

The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 for 10 inch section, the S8 is available from 10 inch to 50 inch, features high-performance reflectors and the additional feature of an amber backlight makes the S8 a light bar that shines with your vehicle.
The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection!
Note: This light does Not include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10 inch-30 inch).
ELS Scores: Effective Lighting Score (ELS)S8 10 inch Driving Combo (Clear): ELS 116 degree / 7.1/ 323'/ 4910
S8 10 inch Spot (Clear): ELS 88 degree / 6.2/ 329'/ 4690
S8 10 inch Wide Cornering (Clear): ELS 126 degree / 6.5/ 158'/ 4595
• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color
| Amperage Rating (A) | 4.200 specifications |
|---|---|
| Average Rated Life (hr.) | 49,930 specifications |
| Beam Pattern | Driving/Combo specifications |
| Bezel Material | Billet Machined Aluminum specifications |
| Bracket Material | Stainless Steel |
| Brackets Included | Yes |
| Brightness (Lumens) | 6324 specifications |
| Color | Black |
| Country Of Origin | USA |
| Depth (in.) | 3 dimensions |
| Description | Driving/Combo; Amber specifications |
| Height (in.) | 1.600 dimensions |
| Housing Color | Black specifications |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize specifications |
| Housing Type | Aircraft Grade Aluminum w/Mil-Spec Hard Anodize |
| IK10 Compliant | IK10 Compliant (Mechanical Impact Testing) |
| Length (in.) | 10 dimensions |
| Lens Color | Amber specifications |
| Lens Material | Hardcoated Polycarbonate specifications |
| Life Span Expectancy | 49,930 Hours |
| Light Quantity | 1 specifications |
| Lighting Modes | Beam/Amber Backlit Feature specifications |
| Lighting Quantity | 8 specifications |
| Lighting Technology | Cree LED specifications |
| Lighting Type | Forward Projecting specifications |
| Mfg Label | LED Light Bars |
| Mounting Hardware Description | Mounting Brackets specifications |
| Mounting Hardware Included | Yes specifications |
| Mounting Hardware Material | Stainless Steel specifications |
| Overvoltage Protection | Built-In specifications |
| Patent No. | D780,964 standards & complian |
| Product Type | S8 10 Inch LED Light Bar specifications |
| Sold As | Each |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) standards & complian |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian |
| Universal | Yes |
| Universal Or Specific | Universal specifications |
| UPC | 819314020754 |
| Waterproof Rating | IP69K (Waterproof up to 9ft Pressure Washable) |
| Wattage (W) | 57.960 specifications |
| Wattage/AMP | 40W / 3.33A |
| Weight (lbs.) | 2.400 dimensions |
| Wiring Harness Included | No specifications |
