BD DieselSuper B Killer SX-E S363 Turbo Kit - Dodge 1994-2002 5.9L c/w HX40 Down Pipe

Description

All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.

Features & benefits

• BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
• Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
• Larger Compressor Blade Surface But w/Smaller Inducer Results In Quicker Spooling/More Flow Than Similar Sized Wheels
• The Sx-E Turbo Was Designed For Performance With A 360 Thrust Bearing And Enhanced Compressor Wheel And Housing
• BD Exclusive Feature Of A Heavy Sprung Waste-Gated T3 Turbine Housing That Mounts Onto Stock Exhaust Manifolds
• The High Strength Fmw Forged Milled Wheels Are Lighter And Stronger And Withstand Higher Wheel Speeds
• Turnbuckle Boost Control Allows For Ease Of Adjustment For Altitude And Extreme Tuning
• BD's HD Waste gate and bracket holds boost and prevents over speed damage
• BD HD Waste Gate And Bracket Holds Boost And Prevents Over Speed Damage
• Approximate rated 550hp (depending on truck configuration)

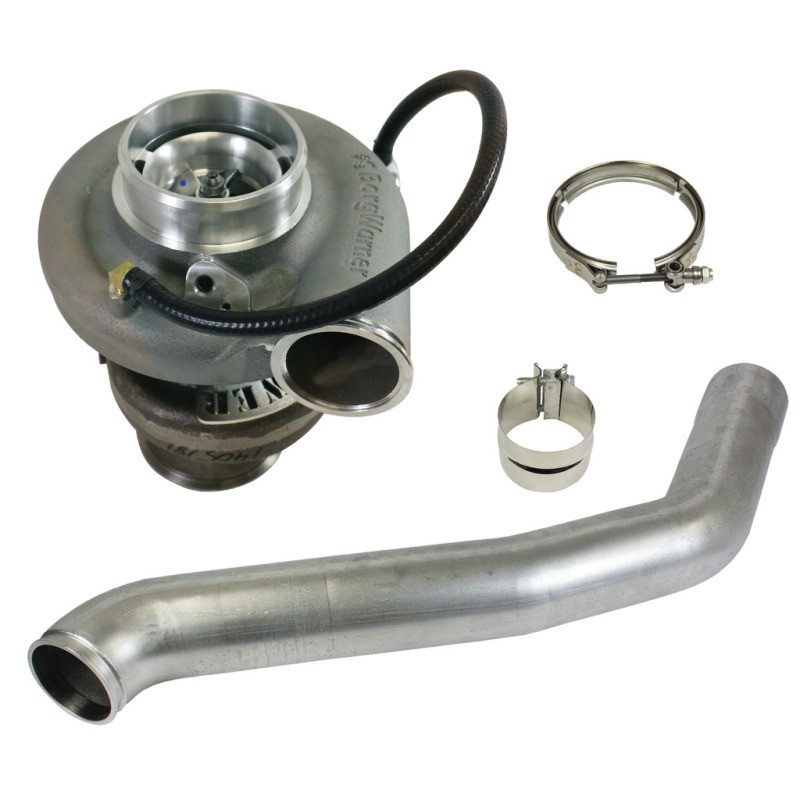

• Kit comes with downpipe, V-band clamp, band clamp
• Kit Comes With Downpipe/V-Band Clamp/Band Clamp
• Approx. Rated 550 hp - Depends On Truck Config
• Turbine Wheel: 76mm 2.99in
• Comp Wheel: 63mm 2.48in
• Flow: 79 Lb./min
• A/R Ratio: 0.80

Videos and guides

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
