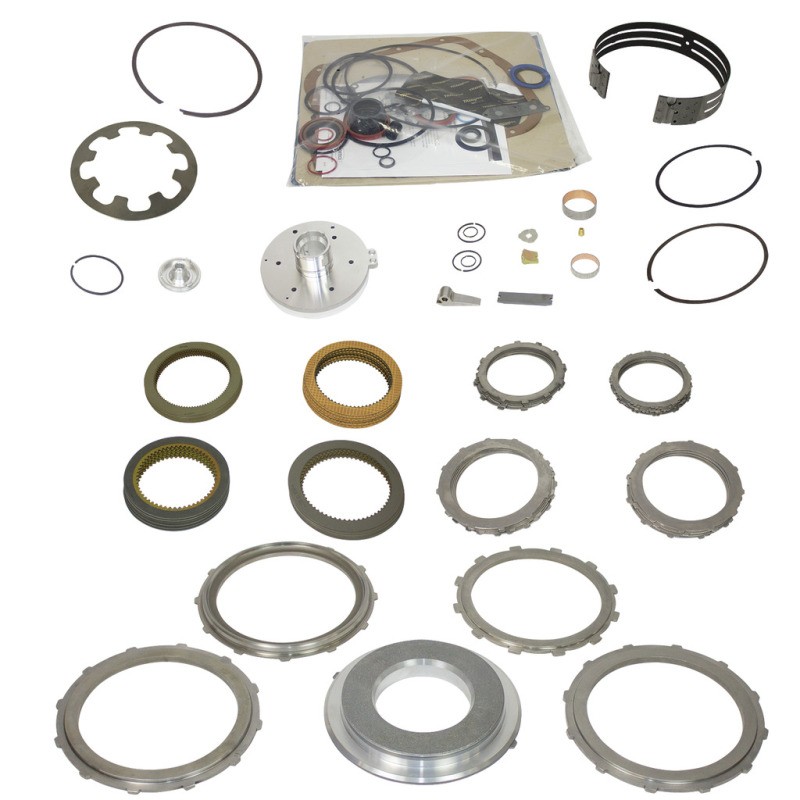

Built-It Trans Kit 2003-2007 Dodge 48RE Stage 4 Master Rebuild Kit

Description

Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD is offering a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit. For an experienced builder these kits can be a big money saver as you will not have to deal with core charges and can save over 400 dollars in freight charges!

Features & benefits

• Friction - Front (Dir/Hi/Rev) Allomatic, O/D Allomatic, O/D Direct Borg Warner, Rear (Fwd) Borg Warner
• Steel - Fwd (Dir/Hi/Rev), O/D Brake, O/D Dir .525", Frt (Dir/Hi/Rev) Oversize
• BD Pressure Plate Forward (Rr) Beveled Machined, O/D Brake F&R Machined
• Snap Ring - Direct Clutch .062, Direct Clutch .074, Direct Clutch .088
• Recommended Option For 00-07 Dodge: 1060605 Electronic Upgrd. Kit
• Recommended Option For 00-07 Dodge: 1060602 Pressure Transducer
• Pressure Plate - Dir/Fwd (Frt) .145", Dir/Fwd (Frt) .185"
• Bushing - Front Clutch Drum 0.85, Pump - Bronze W/Dimples
• Same Parts Used In Our Own Performance Transmissions
• All kits include the basic rebuild parts and gaskets
• Recommended Option BD Heavy Duty Transmission Pan
• Shifter Bracket & Lever Kit - 4.2 Ratio
• BD Piston - Dir. Clutch (Frt) Machined
• Accumulator Piston - Billet Dual Ring
• Band - High Temp/Energy - Raybestos
• 12 Month Or 12000 Mile Warranty
• Washer - Int. Shaft Thrust .052
• Servo Cover Ring, Piston Cover
• Suggested Option BD Valve Body
• Rear Clutch Piston Spring
• Gasket Kit - Overhaul
• Band Anchor - Billet
• Piston Retainer Kit
• Strut - Front Band
• Clutch Disc
