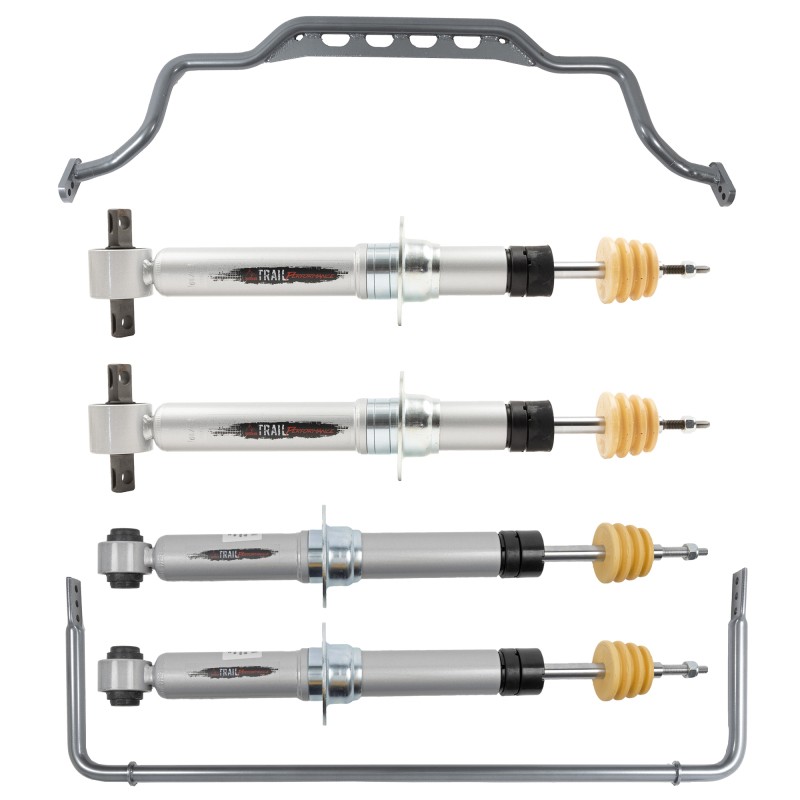

2 INCH LEVELING KIT | FRONT & REAR TP STRUTS W/ SWAY BAR SET

Description

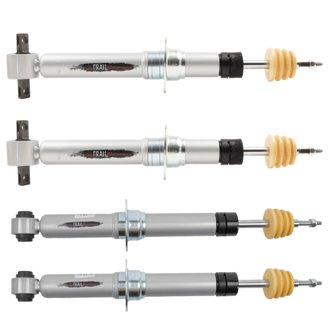

Equip your 2021+ GM 1500 SUV with Belltech's 150222TPS leveling kit and feel the superior handling you need. Achieve a modern, uniform appearance while also improving handling and performance making quick maneuvers safe and precise. Included are Belltech Trail Performance leveling struts which have been finely tuned with perfect preset damping forces for your SUV. The front and rear struts offer height adjustability from 0" to +2" to give you the option to increase clearance or add larger tires and wheels. Belltech Trail Performance struts are comprised of many components that all work together to create the ultimate suspension option. We include a spring perch that easily accommodates the OE spring. The struts feature a 50mm damper body that was built to hold a large volume of oil. The extra space and low-friction design improve heat dissipation to keep the oil cool; ensuring damping that does not fade. The independent 35mm rebound and compression valves work to deliver precise damper tuning. The 18mm hardened chrome piston rod lends extra strength and durability. Height customization is achieved by Belltech's patented height adjustable ring system. To accommodate each leveling option, we include packers and a progressive rate polymer open-cell bump stop to achieve precise bump stop engagement and prevent harshness while driving on an uneven road or over a speed bump. A high durometer vulcanized rubber bushing is used to further reduce vibrations and add to the smooth-balanced ride.

Since 1983 small company in Fresno, California had an idea to build the "best performing" lowering suspensions for the Chevrolet pickup. Fresno had been a haven for lowered vehicles and trucks were in abundance. Trucks were being lowered but their suspensions were terrible and not very roadworthy. Springs were either replaced with new ones not necessarily meant for the application and even worse they may be cut or heated with a torch at the local muffler shop to give the lowered stance that was cool. The stance looked good but the ride was terrible.

Fitment

This part fits the following vehicles.

• 2021-2024 GMC Yukon
• 2021-2025 Chevrolet Tahoe

Features & benefits

• Customizable front and rear leveling options of 0" to +2"
• Large bodied 2.0"(50mm) preset Street Performance struts
• 35mm independent rebound and compression valves
• 18mm hardened chrome piston rod
• Height adjustable rings
• Replaces your OE bars to improve handling
• Reduces body-roll and aids in towing
• Designed for use with OE springs
• Complete leveling option
• Preset damping
• Easy to install
• Engineered to exemplify ride quality and performance
• Ships in 2 boxes

Specifications

Videos and guides

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
