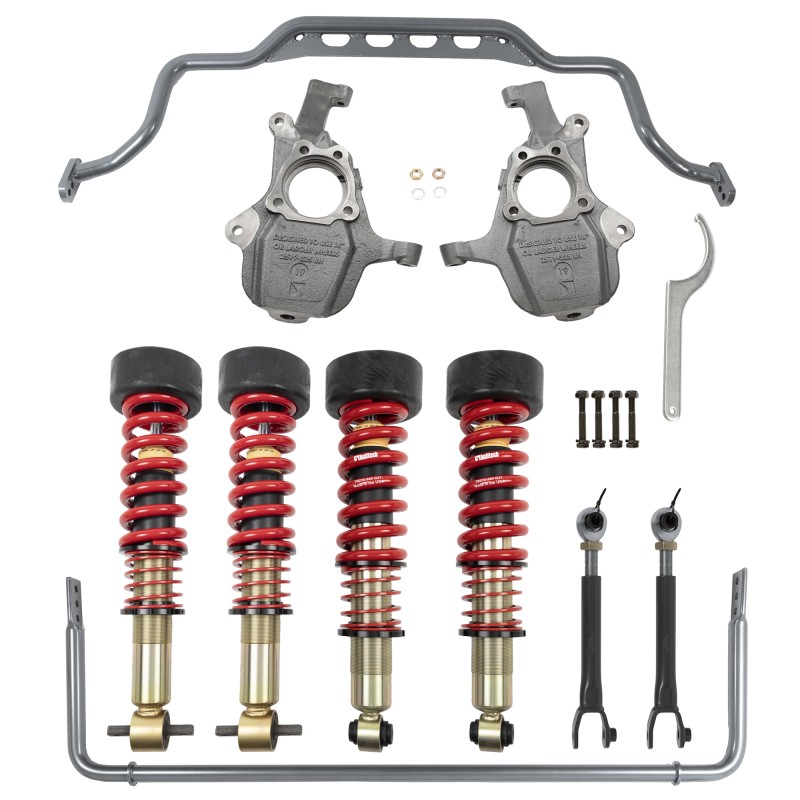

Performance Handling Kit W/ Height Adjustable Coilovers & Sway Bar Set

Description

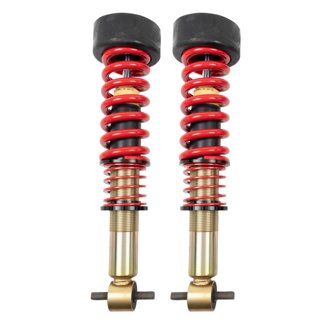

Discover the next level of performance with the new line of Belltech 2021+ GM SUV lowering kits. Our kit lowers the front of your vehicle -2.5" to -3.5" and -1" to -4.5" at the rear to set the perfect stance and a lower center of gravity. The front and rear suspension includes our robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper that features a large, 2.4" (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customizable height adjustability. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and the OE top mounts for simplified installation. We include spindles to complete the front end lowering by bringing your wheels' mounting position up higher and settling your vehicle closer to the ground. Lateral control is enhanced with a 1-3/8" diameter solid front sway bar and 1-1/4" diameter solid rear sway bar that are made of cold-formed steel and powder coated for longevity. The front bar feature 2 settings of adjustability and the rear has 3 settings to meet your specific performance needs. For the rear suspension we showcase a Belltech rear angle correction control arm kit designed to correct negative camber, return proper ball joint angles, prevent unwanted pulling, and reduce tire wear, which in the long term, is truly pertinent. Engineered specifically for the 2021+ GM SUV, the control arms are easy to install and built to last due to their solid steel construction and high-quality powder coat to increase their longevity.

Since 1983 small company in Fresno, California had an idea to build the "best performing" lowering suspensions for the Chevrolet pickup. Fresno had been a haven for lowered vehicles and trucks were in abundance. Trucks were being lowered but their suspensions were terrible and not very roadworthy. Springs were either replaced with new ones not necessarily meant for the application and even worse they may be cut or heated with a torch at the local muffler shop to give the lowered stance that was cool. The stance looked good but the ride was terrible.

Fitment

This part fits the following vehicles.

• 2021-2024 GMC Yukon XL
• 2021-2025 Chevrolet Suburban

Features & benefits

• Customizable front lowering options of -2.5" to -3.5"
• Customizable rear lowering options of -1" to -4.5"
• Large bodied 2.4"(60mm) preset Street Performance dampers
• 35mm independent rebound and compression valves
• Cold-formed steel springs
• Adjustable length control arms for angle correction

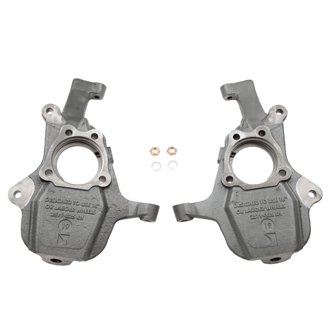

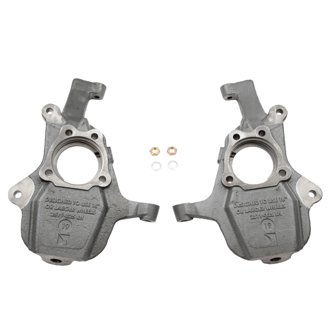

• Robust drop spindles
• Replaces your OE bars to improve handling
• Reduces body-roll and aids in towing
• Lowers center of gravity
• Easy to install
• Engineered to exemplify ride quality and performance
• Ships in 3 boxes
