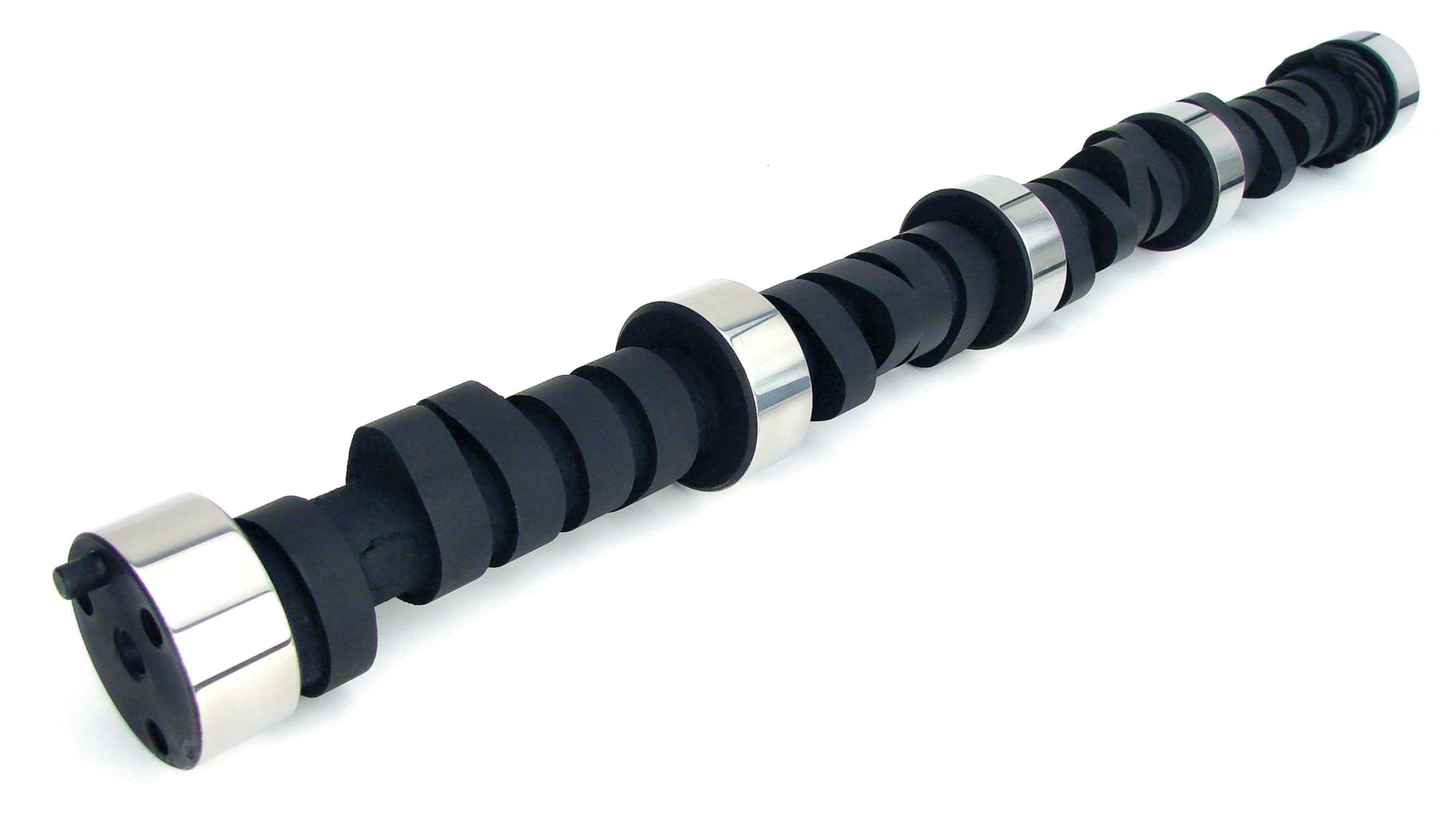

Camshaft CS XE256H-10

Description

excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-234-2 Grind #XE256H-10. Duration @ 0.006": 256 / 268deg. Duration @ 0.050": 212/ 218deg. Max Lift w/ 1.5RR: .447" / .454". Lobe Separation: 110deg. Lobe ID#'s: 5441 / 5230. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block Bore:4.040" Stroke:3.480". Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R Intake: Edelbrock Performer Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers Max Torque: 411 ft/lbs @ 3600 RPM. Max Power: 330 HP @ 4700 RPM. Manifold Vacuum: 18.5" Hg @ 800 RPM & 20" Hg @ 1000 RPM w/ no load.

Features & benefits

• Melling offers a full line of OE replacement and high performance camshafts for cars, light duty, medium duty and heavy duty trucks. Melling listings include OEM applications to match the engine requirements desired including horsepower, economy and needed engine torque. Melling camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials.
