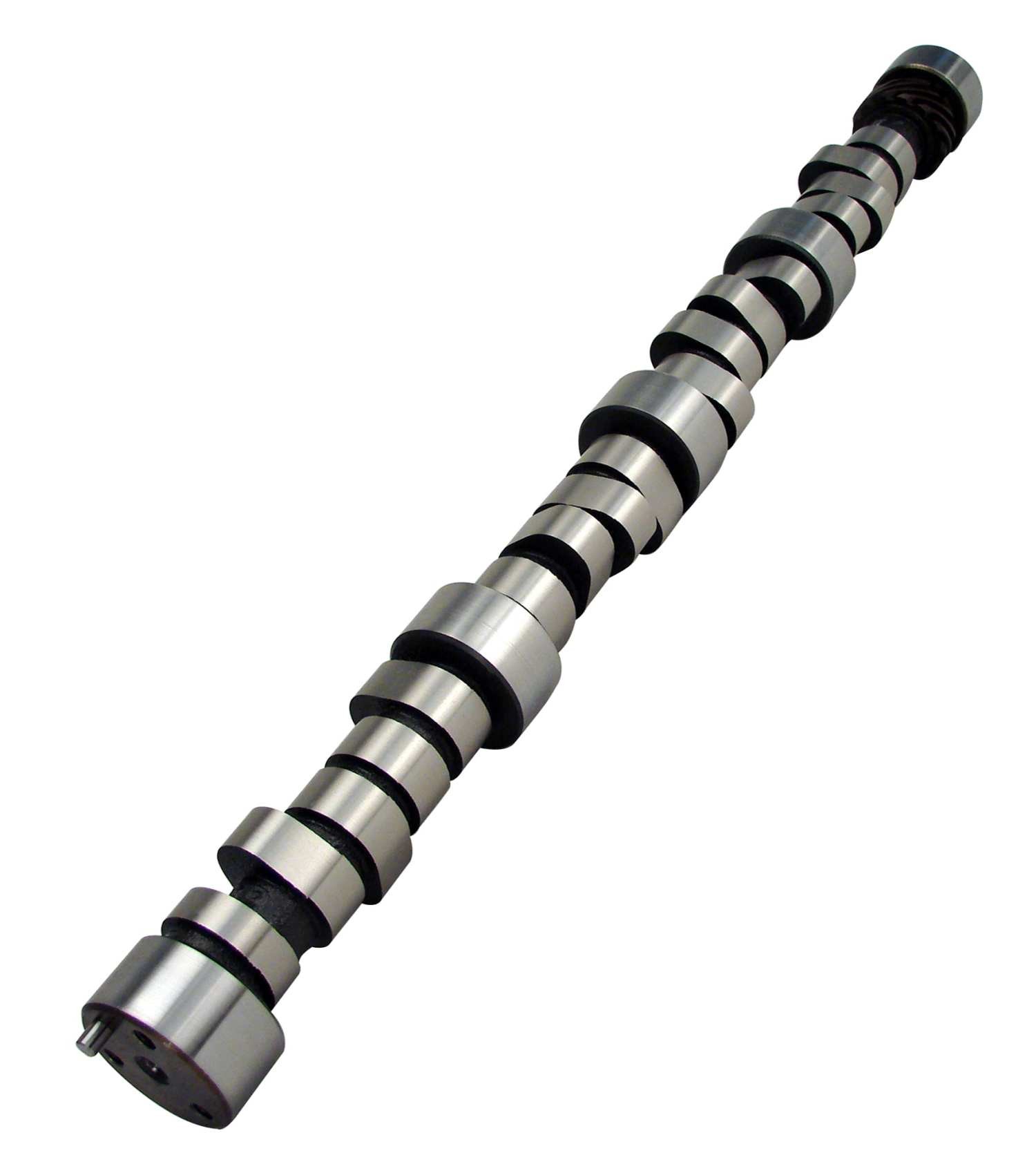

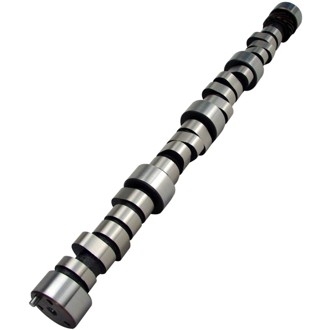

Xtreme Energy 224/230 Hydraulic Roller Cam for Chevrolet Small Block

Description

Xtreme Energy 224/230 Hydraulic Roller Cam for Chevy Small Block. Very strong torque with excellent mileage and a smooth idle. Xtreme Energy Cams bridge the gap between Magnum street cams and race only cams. Xtreme Energy Cams provide increased torque, vacuum, response, and power while still providing quiet operation of the valve train and the durability required in daily driven vehicles. Xtreme Energy Benefits:Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve. More vacuum allows a step up in duration for greater performance. Best seller. excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-423-8 Grind #XR276HR-10. Duration @ 0.006": 276/ 282deg. Duration @ 0.050": 224/ 230deg. Max Lift w/ 1.5RR: .502" / .510". Lobe Separation: 110deg Lobe ID#'s: 3314 / 3315. Intake Centerline:106deg. Engine Type: Chevrolet 350 Small Block. Bore: 4.040". Stroke: 3.480". Displacement: 356ci. Compression: 9.25:1. Heads: Dart S/R. Intake: Edelbrock performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 427 ft/lbs @ 3700 RPM. Max Power: 373 HP @ 5200 RPM. Manifold Vacuum: 12" Hg @ 800 RPM & 14" Hg @ 1000 RPM w/ no load.

COMP Cams® is the leading American manufacturer of high-quality, performance-based internal engine components, including camshafts, valve springs, rocker arms, lifters, pushrods, and other valve train components. We help our customers with innovative technological advancements through extensive research and development. Our quality workmanship and engineering ensure confidence for racers and street performance enthusiasts. COMP Cams is a proud member of the Edelbrock Group family of brands, which include Edelbrock®, FAST® (Fuel Air Spark Technology), TCI® Automotive, Russell® Performance and Lunati Power®. Headquartered in Olive Branch, Mississippi, COMP Cams remains an innovative American company focused on results-driven technology and superior customer support. We believe in the automotive lifestyle and continue to support the passion for our American pastime. For more information about the Edelbrock Group or any partner brands, visit www.edelbrockgroup.com.

Fitment

This part fits the following vehicles.

• 1995-1996 AM General Hummer
• 1965-1985, 1987-1991 Avanti II
• 1965-1969 Bizzarrini GT America
• 1973-1974 Buick Apollo
• 1973 Buick Centurion
• 1973-1974, 1977-1981 Buick Century
• 1991-1996 Buick Commercial Chassis
• 1970, 1973 Buick Estate Wagon
• 1970-1972 Buick GS
• 1968-1969 Buick GS 350
• 1968-1974, 1978 Buick LeSabre
• 1973-1974, 1977-1980, 1982-1987 Buick Regal
• 1991-1996 Buick Roadmaster
• 1968-1972, 1977-1979 Buick Skylark
• 1968-1969 Buick Special
• 1968-1972 Buick Sportwagon
• 1990-1992 Cadillac Brougham
• 1992-1996 Cadillac Commercial Chassis
• 1993-1996 Cadillac Fleetwood
• 1966-1974 Checker Aerobus
• 1969-1970 Checker Deluxe
• 1965-1982 Checker Marathon
• 1969-1974 Checker Taxicab
• 1959 Chevrolet 3B
• 1959 Chevrolet 3C
• 1959 Chevrolet 3D
• 1959 Chevrolet 3E
• 1959 Chevrolet 3F
• 1959 Chevrolet 3G
• 1955-1975, 1981 Chevrolet Bel Air
• 1958-1972 Chevrolet Biscayne
• 1969-1974, 1987-1994 Chevrolet Blazer
• 1959-1961, 1969-1972 Chevrolet Brookwood
• 1975-1986 Chevrolet C10
• 1960-1974 Chevrolet C10 Pickup
• 1967-1986 Chevrolet C10 Suburban
• 1982-1985 Chevrolet C15
• 1988-1995 Chevrolet C1500
• 1992-1995 Chevrolet C1500 Suburban
• 1975-1987 Chevrolet C20
• 1960-1974 Chevrolet C20 Pickup
• 1967-1986 Chevrolet C20 Suburban
• 1988-1995 Chevrolet C2500
• 1992-1995 Chevrolet C2500 Suburban
• 1975-1986 Chevrolet C30
• 1960-1974 Chevrolet C30 Pickup
• 1983-1994 Chevrolet C35
• 1988-1995 Chevrolet C3500
• 1967-1986 Chevrolet Camaro
• 1966-1996 Chevrolet Caprice
• 1967-1973 Chevrolet Chevelle
• 1963-1968 Chevrolet Chevy II
• 1991-1994 Chevrolet Commercial Chassis
• 1955-1982, 1984-1986 Chevrolet Corvette
• 1957-1958 Chevrolet Del Ray
• 1959-1960, 1964-1987 Chevrolet El Camino
• 1969-1970 Chevrolet Estate
• 1996 Chevrolet Express 2500
• 1975-1995 Chevrolet G10
• 1970-1974 Chevrolet G10 Van
• 1975-1995 Chevrolet G20
• 1967-1974 Chevrolet G20 Van
• 1975-1996 Chevrolet G30
• 1970-1974 Chevrolet G30 Van
• 1958-1985, 1994-1996 Chevrolet Impala
• 1975-1986 Chevrolet K10
• 1960-1974 Chevrolet K10 Pickup
• 1967-1986 Chevrolet K10 Suburban
• 1988-1995 Chevrolet K1500
• 1992-1995 Chevrolet K1500 Suburban
• 1975-1986 Chevrolet K20
• 1960-1974 Chevrolet K20 Pickup
• 1967-1986 Chevrolet K20 Suburban
• 1988-1995 Chevrolet K2500
• 1992-1995 Chevrolet K2500 Suburban
• 1977-1986 Chevrolet K30
• 1968-1974 Chevrolet K30 Pickup
• 1988-1995 Chevrolet K3500
• 1975-1986 Chevrolet K5 Blazer
• 1959-1961, 1969-1972 Chevrolet Kingswood
• 1975, 1978-1983 Chevrolet Malibu
• 1970-1988 Chevrolet Monte Carlo
• 1975-1979 Chevrolet Monza
• 1958-1961 Chevrolet Nomad
• 1969-1979 Chevrolet Nova
• 1955-1957 Chevrolet One-Fifty Series
• 1975, 1977-1979 Chevrolet P10
• 1961-1962 Chevrolet P10 Series
• 1973 Chevrolet P10 Van
• 1975-1989 Chevrolet P20
• 1961-1962 Chevrolet P20 Series
• 1970-1974 Chevrolet P20 Van
• 1975-1996 Chevrolet P30
• 1961-1962 Chevrolet P30 Series
• 1970-1974 Chevrolet P30 Van
• 1959-1961 Chevrolet Parkwood
• 1987 Chevrolet R10
• 1987-1988 Chevrolet R10 Suburban
• 1989-1991 Chevrolet R1500 Suburban
• 1987-1988 Chevrolet R20

Showing 100 of 240 vehicles. Use the fit check above to see whether this part fits yours.

Features & benefits

• Melling offers a full line of OE replacement and high performance camshafts for cars, light duty, medium duty and heavy duty trucks. Melling listings include OEM applications to match the engine requirements desired including horsepower, economy and needed engine torque. Melling camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials.

Specifications

Warranty

12 Months
