Accu-Drive Gear Drive Small-Block Chevy

Description

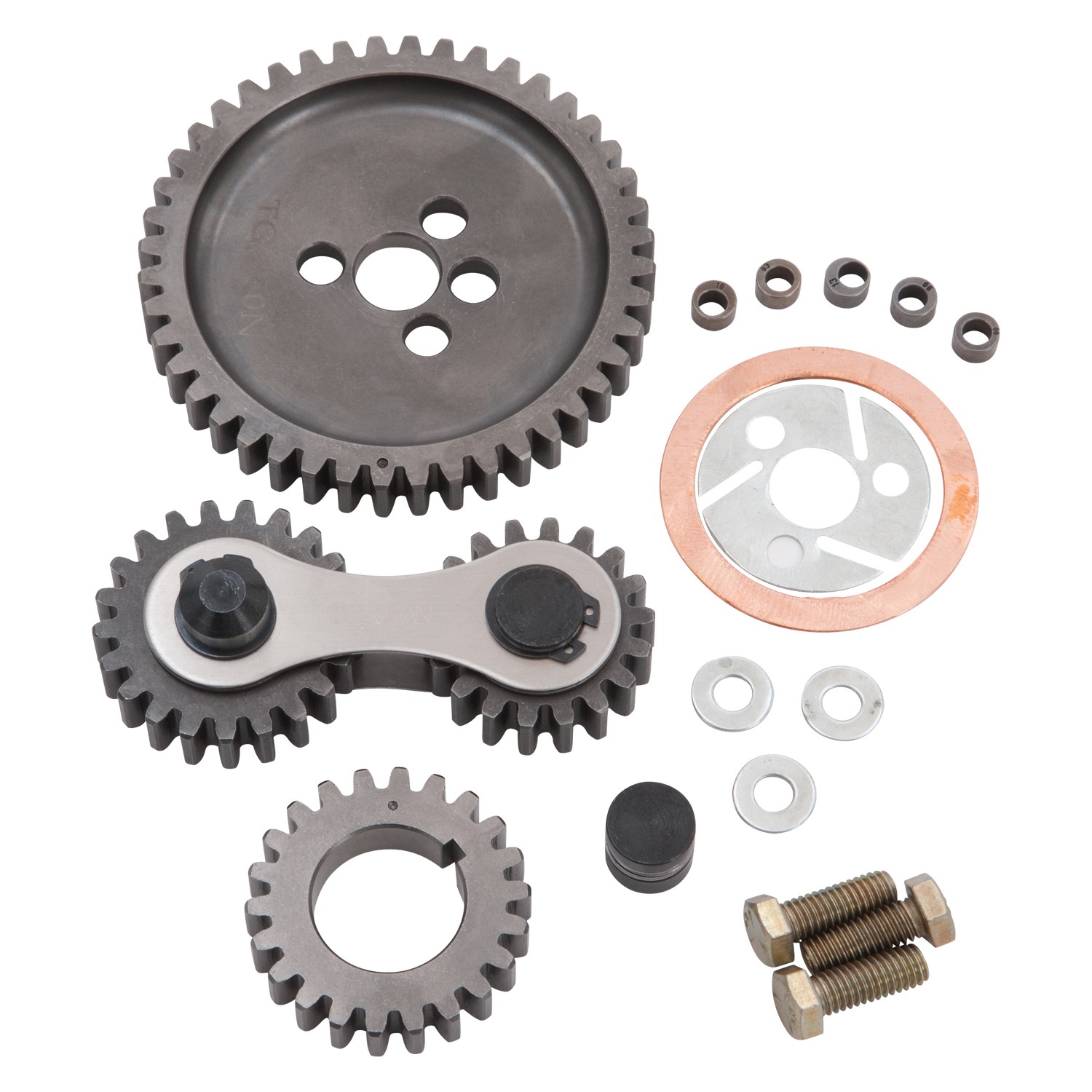

Edelbrock part #7890 Accu-Drive camshaft gear drive kit for small-block Chevy engines replaces a stock timing chain with a precision gear drive system utilizing a compound gear drive train. The gear drive can be easily installed. Just replace the stock crank and camshaft sprockets with Accu-Drive gears and slip in the idler assembly. Most Accu-Drives require no modifications to the engine block, although some fitting of the axles and front cover may be required. This Accu-Drive camshaft gear drive system for small-block Chevy Engines transmits power from the crankshaft gear to a full floating main idler which drives the camshaft gear. A unique feature of the Edelbrock Accu-Drive system is the ability of the main idler gear to float to an optimum position between the crankshaft and camshaft gears, assuring absolutely equal load sharing between the crankshaft and the camshaft gears. The gears are made from billet SAE-1144 steel with induction hardened teeth. Gear teeth are shaved for precision operation. The set features hardened and ground idler pins from billet steel and are compatible with all standard camshafts. Features Include: - Accurate timing control..No chain to stretch - Provides multiple cam timing adjustments for optimum performance - Smooth cam rotation for precise valve timing

Edelbrock® LLC is one of the nation's premier designers, manufacturers, and distributors of performance and replacement parts for the automotive aftermarket. Our line of products includes camshafts, carburetors, crate engines, cylinder heads, engine dress-up kits, fittings, fuel injection, fuel systems, gaskets, ignition, intake manifolds, sensors, superchargers, thermostats, tools, turbochargers, valve train components, and water pumps. Edelbrock is a proud member of the Edelbrock Group family of brands, including COMP Cams®, FAST® (Fuel Air Spark Technology), TCI® Automotive, Russell® Performance and Lunati Power®, representing over 130 years of performance. Headquartered in Olive Branch, Mississippi, Edelbrock focuses on the future with more innovative parts, creating more opportunities for our customers to go fast. For more information about the Edelbrock Group or any partner brands, visit www.edelbrockgroup.com.

When you design and sell the best-engineered performance products in the world, you have to have a rigorous testing program. Why? Without adequate testing, there's no way to stand behind your product with confidence. That's why every product we design and sell at Edelbrock is tested and approved by Edelbrock engineers in a real world environment on state-of-the-art equipment. Our three Super Flow computerized engine dynos are capable of measuring 11 separate engine variables up to speeds of 12,000 rpm. For 2007, we added a new Super Flow SF902 engine dyno. It's fully automated and programmable to simulate various driving situations, and is equipped with WinDyn software for the very latest in testing equipment. For real-world tuning, there's our Super Flow model SF-840 eddy-current chassis dyno that can handle up to 1,000 hp at the wheels and speeds of 200 mph. When all testing is completed, the results evaluated, and the part has passed all performance criteria, then, and only then, is the product deemed ready for production. These precise testing procedures are applied to the entire Edelbrock line for performance that's guaranteed. Edelbrock test vehicles are driven by Edelbrock engineers and employees to get a "real world" feeling for the performance improvements. Our products are also tested and used by professional race car teams and drivers. Working with these talented individuals is just another extension of our research and development process so when we say "proven performance" we really mean it! Top racing teams in all forms of motorsports rely on Edelbrock to produce parts that they can count on to win races and championships. Further underscoring our commitment to the racing community, Edelbrock is the only aftermarket intake manifold manufacturer licensed by NASCAR.

Fitment

This part fits the following vehicles.

• 1957-1958, 1960 Chevrolet Truck
• 1957-1972, 1974-1982, 1984-1991 Chevrolet Corvette
• 1957 Chevrolet One-Fifty Series
• 1957 Chevrolet Two-Ten Series
• 1958-1972 Chevrolet Biscayne
• 1958-1975 Chevrolet Bel Air
• 1958 Chevrolet Del Ray
• 1959-1960, 1964-1987 Chevrolet El Camino
• 1959-1985 Chevrolet Impala
• 1961-1966 Chevrolet Suburban
• 1961-1974 Chevrolet C10 Pickup
• 1961-1974 Chevrolet C20 Pickup
• 1961-1974 Chevrolet C30 Pickup
• 1961-1974 Chevrolet K10 Pickup
• 1961-1974 Chevrolet K20 Pickup
• 1963-1968 Chevrolet Chevy II
• 1964-1973 Chevrolet Chevelle
• 1966-1995 Chevrolet Caprice
• 1967-1974 GMC C15/C1500 Pickup
• 1967-1974 GMC C15/C1500 Suburban
• 1967-1974 GMC C25/C2500 Pickup
• 1967-1974 GMC C25/C2500 Suburban
• 1967-1974 GMC C35/C3500 Pickup
• 1967-1974 GMC G15/G1500 Van
• 1967-1974 GMC G25/G2500 Van
• 1967-1974 GMC K15/K1500 Pickup
• 1967-1974 GMC K15/K1500 Suburban
• 1967-1974 GMC K25/K2500 Pickup
• 1967-1992 Chevrolet Camaro
• 1968-1974 Chevrolet G10 Van
• 1968-1974 Chevrolet G20 Van
• 1968-1974 Chevrolet K30 Pickup
• 1968-1974 GMC K25/K2500 Suburban
• 1968-1974 GMC K35/K3500 Pickup
• 1968-1986 Chevrolet C10 Suburban
• 1968-1986 Chevrolet C20 Suburban
• 1968-1986 Chevrolet K10 Suburban
• 1968-1986 Chevrolet K20 Suburban
• 1969-1972 Chevrolet Brookwood
• 1969-1972 Chevrolet Kingswood
• 1969-1972 Chevrolet Townsman
• 1969-1974, 1987-1994 Chevrolet Blazer
• 1969-1979 Chevrolet Nova
• 1970-1988 Chevrolet Monte Carlo
• 1970-1991 GMC Jimmy
• 1971-1972, 1977 Pontiac Ventura
• 1971-1974 GMC G35/G3500 Van
• 1971-1977 GMC Sprint
• 1974 Chevrolet G30 Van
• 1975, 1978-1983 Chevrolet Malibu
• 1975-1978 GMC C15
• 1975-1978 GMC C15 Suburban
• 1975-1978 GMC C25
• 1975-1978 GMC C25 Suburban
• 1975-1978 GMC C35
• 1975-1978 GMC G15
• 1975-1978 GMC G25
• 1975-1978 GMC G35
• 1975-1978 GMC K15
• 1975-1978 GMC K15 Suburban
• 1975-1978 GMC K25
• 1975-1978 GMC K25 Suburban
• 1975-1979 Chevrolet Monza
• 1975-1986 Chevrolet C10
• 1975-1986 Chevrolet C20
• 1975-1986 Chevrolet C30
• 1975-1986 Chevrolet K10
• 1975-1986 Chevrolet K20
• 1975-1986 Chevrolet K5 Blazer
• 1975-1995 Chevrolet G10
• 1975-1995 Chevrolet G20
• 1975-1995 Chevrolet G30
• 1977-1978 GMC K35
• 1977-1979 Buick Skylark
• 1977-1979 Oldsmobile Omega
• 1977-1979 Oldsmobile Starfire
• 1977-1979 Pontiac Phoenix
• 1977-1980 Buick Century
• 1977-1980 Buick Regal
• 1977-1980 Pontiac Grand LeMans
• 1977-1980 Pontiac LeMans
• 1977-1986 Chevrolet K30
• 1977-1987 Pontiac Firebird
• 1977 Oldsmobile Custom Cruiser
• 1977 Oldsmobile Delta 88
• 1978-1979 Pontiac Sunbird
• 1978-1980, 1983-1987 Pontiac Grand Prix
• 1978-1980 Oldsmobile Cutlass
• 1978-1980 Oldsmobile Cutlass Calais
• 1978-1980 Oldsmobile Cutlass Salon
• 1978-1980 Oldsmobile Cutlass Supreme
• 1978-1980 Pontiac Grand Am
• 1978-1987 GMC Caballero
• 1978 Buick LeSabre
• 1979-1986, 1988-1995 GMC C1500
• 1979-1986, 1988-1995 GMC C2500
• 1979-1986, 1988-1995 GMC C3500
• 1979-1986, 1988-1995 GMC K1500
• 1979-1986, 1988-1995 GMC K2500
• 1979-1986, 1988-1995 GMC K3500

Showing 100 of 148 vehicles. Use the fit check above to see whether this part fits yours.

Features & benefits

• Compatible With All Standard Camshafts
• Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
• Timing gears and sprockets from Melling are provided as a part of a complete timing kit program including chain and sprocket kits, as well as for the individual gear and sprocket sales. Two piece timing gear kits are also available when the engine application calls for gears only. Melling gears and sprockets are offered in both steel and powered metal materials. Each gear and sprocket is manufactured to the required specifications, using high quality materials and the most up to date manufacturing processes. Assure a quality engine rebuild with new Melling gear and sprockets.

Specifications

Warranty

12 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Carb Status

California carb status to be completed
