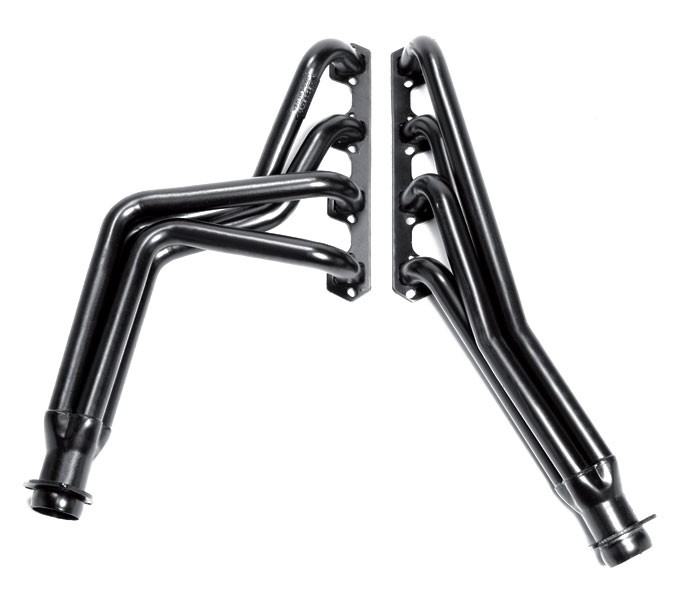

Uncoated Long-Tube EO Headers for 1966-77 4WD Ford Broncos with 302W

Name: Uncoated Long-Tube EO Headers for 1966-77 4WD Ford Broncos with 302W
Brand: Hedman Hedders
SKU: 107347754

Part Number 89410 (107347754)

Unavailable

Select vehicle for guaranteed fit

Description

Standard Uncoated Headers; 1-1/2 in. Tube Dia.; 2-1/2 in. Coll.; FULL LENGTH Design

Hedman Hedders, began as a one man shop in 1954. Bob Hedman, founder of Hedman Hedders, sold his highly sought after exhaust tubes to fellow racers on the salt flats of the Mojave Desert. But, what started out as a way to make a few bucks to pay for Bob's racing hobby, quickly turned into the premier header manufacturer for both the racing and street header marketplaces.\n\nOriginally designed for straightline drag racers, word spread quickly about Hedman's reputation for building headers that gave you the best boost in power for your dollar. It wasn't long before Hedman Hedders was the brand of choice among racing's elite engine builders, racers and race series. Familiar names like Don Garlits, Warren Johnson, Shirley Muldowney, Bob Chandler and his BIG FOOT Race Team, and the IROC series.\n\nHedman Hedders constantly reshapes itself to meet environmental requirements and incorporates computer technology to ensure that its products offer the best performance improvement.\n\nWhether you're a Pro or sportsman racer, Hedman Hedders builds your headers with one goal in mind, optimum performance. Even if you're not a racer, the lessons Hedman learns at the track and on the dyno, make it into every street header we design.

Fitment

This part fits the following vehicles.

1968-1977 Ford Bronco

Features & benefits

Handcrafted, Mild Steel Construction.
Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
Proud To Say, Made In The USA, Since 1954!

Specifications

Air Conditioning	Yes
Automatic Transmission - Column	Yes
Automatic Transmission - Floor	Yes
Bolts/Studs Included	Yes
Catalytic Converter(s) Included	No
Collector Attachment	2-1/2 in.
Collector Bolts Included	Yes
Collector Diameter	2-1/2 in.
Collector Size	2-1/2 in.
Collector Style	BALL and SOCKET Style (Gasketless)
Contents	headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Country Of Origin	US
Crossover Pipe Included	No
Cylinder Head	Stock Profile Heads
Cylinder Head Port Shape	Square
Drivetrain	4WD
E.O. #	Yes
Emissions Notes	EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website)
Engine Version	Ford Windsor Block (W)
Exhaust System Dia	2-1/2 in.
Finish	Uncoated
Finish Type	UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style	Standard
Flange Thickness	1/4 in. with 5/16 in. collector ring flange.
Gasket Or Seal Included	Yes
Header Construction	MILD STEEL- Standard-Duty
Header Fasteners Included	Yes
Header Finish	Uncoated
Header Material	Mild Steel
Header Port Shape	Square Port
Header Style	Long Tube
Installation Hardware Included	Yes
Key Feature	50 State Legal
Manual Transmission - Column	Yes
Manual Transmission - Floor	Yes
Material	Mild Steel
Motor Mounts Included	No
Mounting Hardware Included	Yes
Notes	66-77 Ford Bronco; 4WD 302W
Package Contents	Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Port Shape	Square
Power Steering	Yes
Primary Tube Diameter (in)	1.50 in.
Primary Tube Gauge	16g
Quantity	Sold as a pair.
Reducer Outlet Size	2-1/2 in.
Reducers Included	Yes
Replacement Gasket	27340
Replacement Head Flange Gasket	27340
Street Legal	Yes
Tube Design	Standard
Tube Diameter	1-1/2 in.
Tube Length	Long Tubes
Tube Material Thickness	16g
Tube Size	1-1/2 in.
Tube Style	Long Tubes
Tuned	No
Variations	89416, 89418
Weld-Up	No
With A.I.R. System	No
With EGR	No
Y-Pipe Included	No
