ICON Vehicle Dynamics

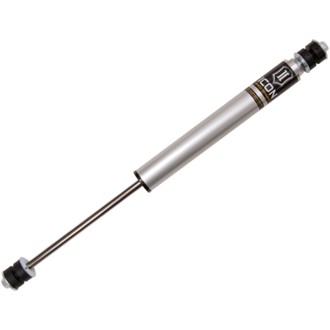

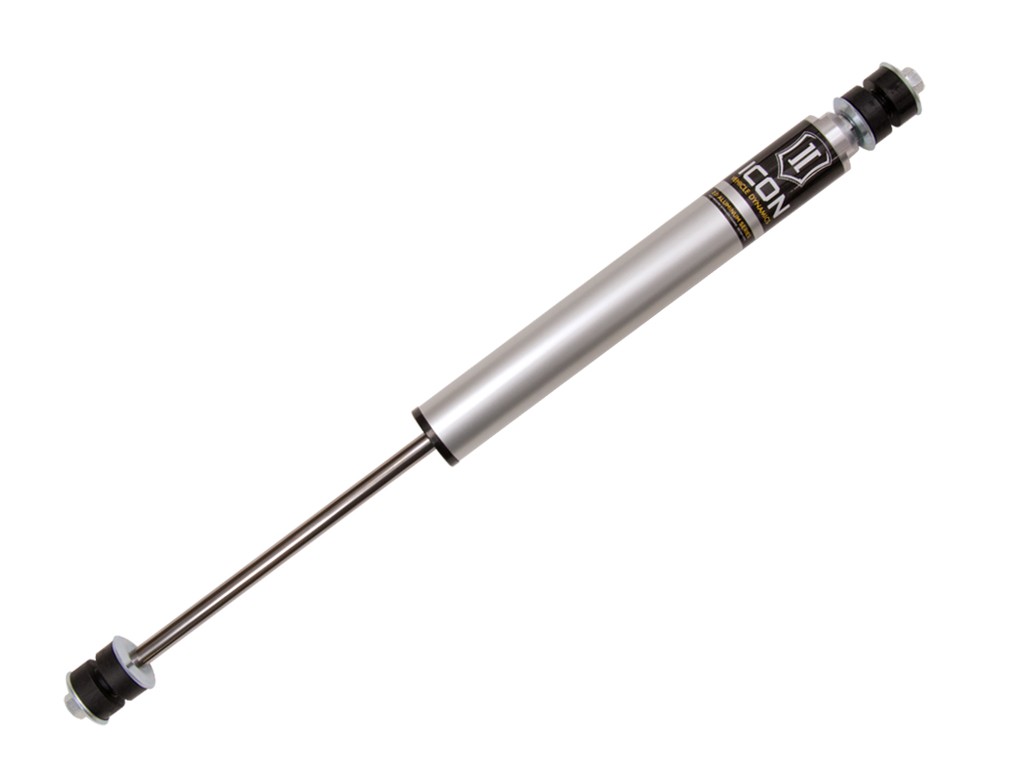

ICON 1991-07 Toyota Land Cruiser, 0-3" Lift, Front, 2.0 VS Shock

Part Number 56509 (166624923)

UPC: 840103403113

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

Color

$211.59

In stockShips by 29th Oct

Description

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for todays most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

Fitment

This part fits the following vehicles.

1991-1997 Toyota Land Cruiser

Features & benefits

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with internal reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable
100% revalveable
Direct replacement - this shock absorber is designed to match the fit and function of the original absorber on specified vehicles
Restores functionality - reliable replacement for an original shock absorber that has failed due to fatigue
Durable construction - this part is made from quality materials to ensure reliable performance and long service life
Trustworthy quality - backed by team of product experts in the United States and more than a century of automotive experience

Specifications

Active Or Passive Suspension	Passive
Adjustable	NO
Adjustable Compression	No
Adjustable Rebound	No
Adjustable Ride Height	No
Body Color	Gray
Body Diameter	2 in
Body Material	Aluminum
Boot Included	NO
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
Coil Over Springs Included	NO
Coil Spring Insulator(s) Included	No
Color	Silver
Compressed Length	15.35 in
Country Of Origin	USA
Cylinder Color	Gray
Cylinder Finish	Anodized
Cylinder Material	Aluminum
Cylinder Outside Diameter	2 in
Dust Shield	NO
Dust Shield Included	No
Extended Length	26.17 in
Finish	Anodized
Gas Charged	Yes
Grade Type	Performance
Hydraulic Lockout	No
Includes Bump Stop	No
Internal Construction Type	Single Tube
Internal Rebound Bumper	Yes
Internal Rebound Spring	No
Lower Mount Stem Overall Length	2.5 in
Lower Mount Stem Thread Size	M12 - 1.25
Lower Mount Type	Stem
Maximum Ride Height Raising Distance	3 in
Minimum Ride Height Raising Distance	0 in
Mounting Hardware Included	Yes
Remote Reservoir	NO
Rod Diameter	.625 in
Self-Leveling	No
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Shoulder of Stem
Shock Absorber Bore Size	1.75 in
Shock Absorber Rod End Measuring Point	Shoulder of Stem
Shock Stroke	10.82 in
Travel Length	10.82 in
Type	Telescopic
Upper Mount Stem Overall Length	2.5 in
Upper Mount Stem Thread Size	M12 - 1.25
Upper Mount Type	Stem
Valving Type	Linear

Warranty

1 Year

Videos and guides

Installation Instructions PDF

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
