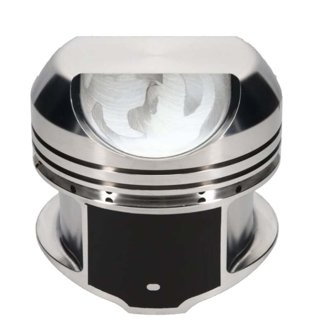

426 Hemi Series 4032 Aluminum Alloy Piston Kit

Part Number 118759 (132583006)
UPC: 193564044587
Package contents: 1 Each per Box
MADE IN USA
$1,076.99 FREE SHIPPING
Out of stock
FREE SHIPPING

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

Features & benefits

  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Made 100% in the USA

Specifications

2nd Groove Width 0.08 in
Bore Diameter 4.290 in
Color Aluminum
Compression Height 1.955 in
Compression Ratio 0.43402777777778
Connecting Rod Length 6.860 IN
Country Of Origin USA
Cylinder Head 426 Hemi
Engine 426 Hemi
Engine Displacement 426
Engine Stroke 3.750 in
Engine Type ICE
Exhaust Angle 17
Exhaust Depth ^.100
Forging Type Round
Intake Angle 26
Intake Depth .300 in
Make Chrysler
Oil Groove Width 0.18800 in
Oil Ring Thickness 0.188 in
Piston Average Weight 841 gr
Piston Head Type Dome
Piston Material 4032
Piston Quantity 8
Piston Series JE Pistons
Piston To Wall Clearance -0.003499 in
Piston Volume 88.00 cc
Product Market Domestic
Product Type Engine Piston Kit
Ring Set Included No
Second Compression Ring Thickness 0.0800 in
Top Compression Ring Thickness 0.0800 in
Top Groove Width 0.08000 in
Wrist Pin Length 2.930 in
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 1.031 in
Wrist Pin Wall Thickness 0.170 in

Warranty

30 Months
