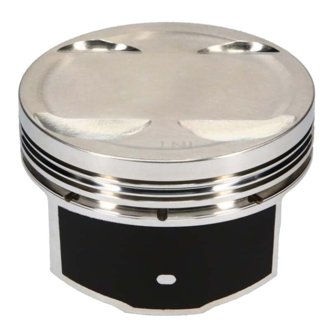

Piston Set, 2618, Inv Dome/Dish, 3.445 Bore, 1.204 CD, 0.866 Pin, Set of 4.

Part Number 208472 (132583363)

UPC: 193564033475

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$899.99 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

Sport Compact, Import and European forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for H23a1 Non Vtec Engines. JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features

Features & benefits

Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
Designed specifically for H23a1 Non Vtec Engines. To provide optimized performance durability
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA
Contact Reduction: Reduce the amount of contact area against the cylinder wall when the piston "Rocks over". Contact reduction also serves to disrupt the flame travel into the crevice area causing a reduction in detonation.
Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.

Specifications

2nd Groove Width	0.048 in
3D Undercrown Milling	No
Accumulator Groove	No
Anodize Top Ring Groove	No
Bore Diameter	87.50 mm
Combo 2	No
Compression Height	1.204 in
Compression Ratio	9:1
Connecting Rod Length	5.571 IN
Contact Reduction	Yes
Country Of Origin	USA
Cylinder Head	H23a1
Double Pin Oilers	Yes
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	H Series
Engine Displacement	H23A1
Engine Stroke	3.740 in
Engine Type	ICE
Exhaust Angle	25
Exhaust Depth	.100
Forging Type	Round
Gas Distribution	No
Intake Angle	25
Intake Depth	.165 in
Lateral Gas Ports	No
Make	Honda
Mill Undercrown	No
Oil Groove Width	0.11100 in
Oil Ring Thickness	0.111 in
Pin Fit	Yes
Piston Average Weight	328 gr
Piston Head Type	Dish
Piston Material	2618
Piston Quantity	4
Piston Series	JE Pistons
Piston To Wall Clearance	-0.004 in
Piston Volume	-11.90 cc
Product Market	Sport Compact
Product Type	Engine Piston Kit
Ring Set - Recommended	JC8A01-3445
Ring Set Included	Yes
Ring Set Part Number	JC8A01-3445
Second Compression Ring Thickness	0.0480 in
Skirt Coat	No
Smooth Crown Finish	No
Thermal Crown	No
Top Compression Ring Thickness	0.0480 in
Top Groove Width	0.04800 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Length	2.250 in
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.866 in
Wrist Pin Wall Thickness	0.150 in

Warranty

30 Months

About JE Pistons

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.
