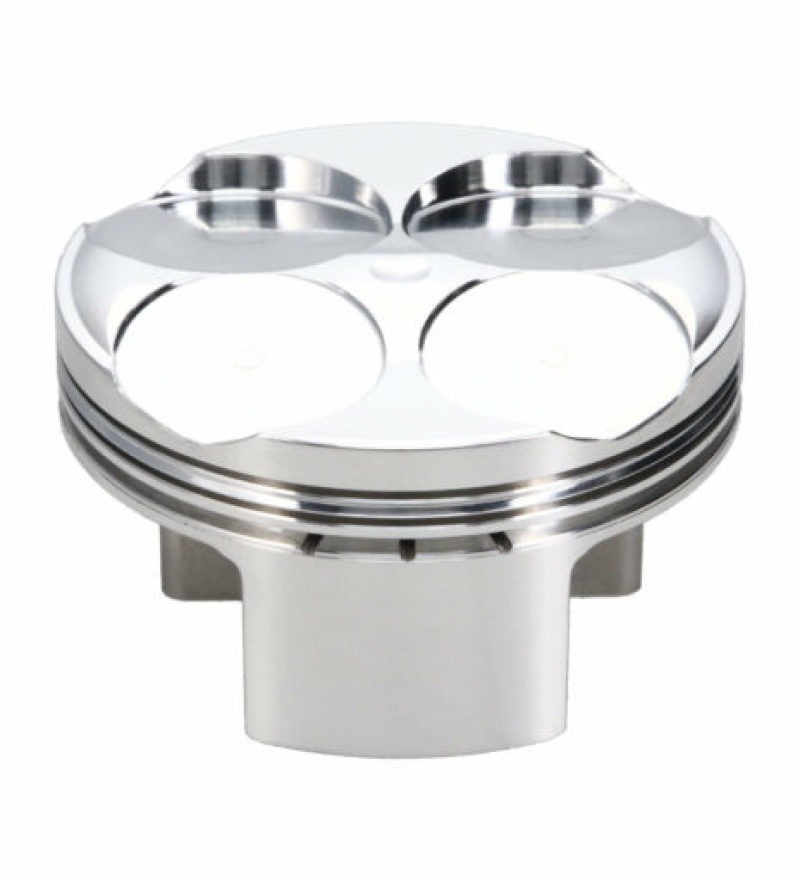

Piston Set, 4032, Dome, 3.386 Bore, 0.986 CD, 0.827 Pin, Set of 4.

Part Number 192315 (132899182)

UPC: 193564218995

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$1,137.99 ~~$1,196.99~~ SAVE 4% FREE SHIPPING

In stockShips by 9th Nov

FREE SHIPPING

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for sport bike and other motorcycle engines. Engineered, forged and machined 100 percent in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the road course to the drag strip everything in between, JE Pistons' performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.

Fitment

This part fits the following vehicles.

Kawasaki

2000-2005 ZX1200 Ninja ZX-12R

Features & benefits

Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
Designed specifically for Kawasaki ZX-12R Engines to provide optimized performance durability
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Designed specifically for each engine and use application to provide optimized performance durability

Specifications

2nd Groove Width	0.048 in
3D Undercrown Milling	No
Accumulator Groove	No
Anodize Top Ring Groove	No
Bore Diameter	86.00 mm
Combo 2	No
Compression Height	0.986
Compression Ratio	0.50555555555556
Compression Ratio Actual	12.80:1
Connecting Rod Length	4.232 IN
Contact Reduction	No
Country Of Origin	USA
Cylinder Head	00/01 ZX 12
Double Pin Oilers	No
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	KAWASAKI
Engine Stroke	2.181 in
Engine Type	ICE
Exhaust Angle	12
Exhaust Depth	.130
Forging Type	FSR
Gas Distribution	No
Intake Angle	12
Intake Depth	.180 in
Intake Diameter	1.460
Lateral Gas Ports	No
Mill Undercrown	No
Oil Groove Width	0.11100 in
Oil Ring Thickness	0.111 in
Pin Fit	Yes
Piston Average Weight	260 gr
Piston Head Type	Dome
Piston Material	4032
Piston Series	JE Pistons
Piston To Wall Clearance	-0.002499 in
Piston Volume	-3.00 cc
Product Market	Street
Product Type	Engine Piston Kit
Ring Set - Recommended	XC8600
Ring Set Included	Yes
Ring Set Part Number	XC8600
Second Compression Ring Thickness	0.0480 in
Skirt Coat	No
Smooth Crown Finish	No
Thermal Crown	No
Top Compression Ring Thickness	0.0400 in
Top Groove Width	0.04000 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Length	2.050 in
Wrist Pin Material	9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter	0.827 in
Wrist Pin Wall Thickness	0.120 in

Warranty

30 Months

About JE Pistons

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Carb Status

California carb status to be completed
