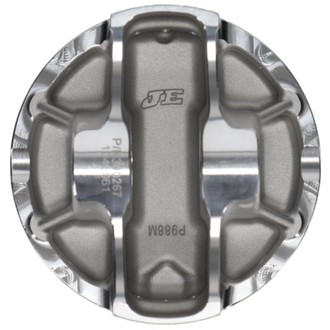

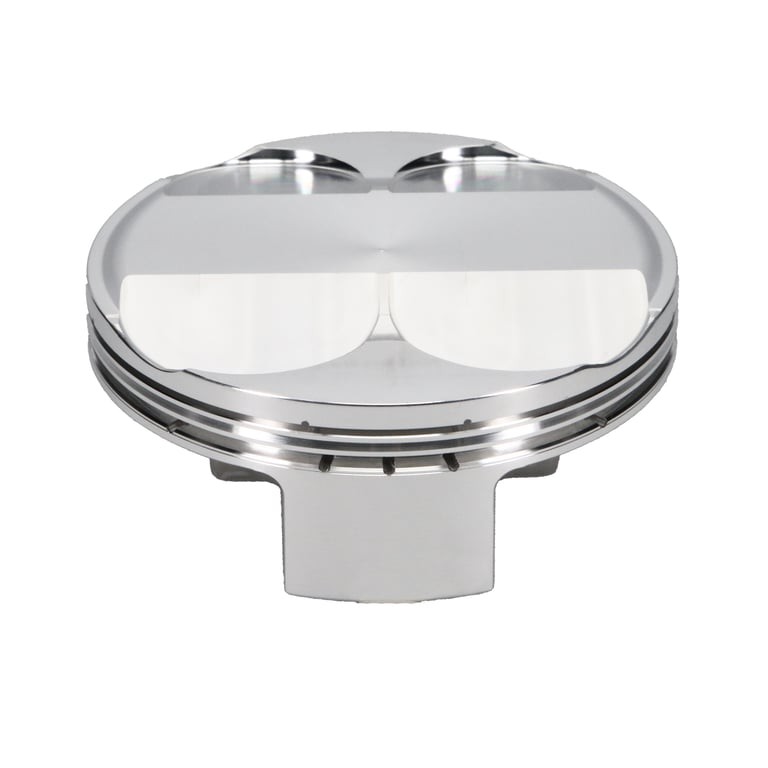

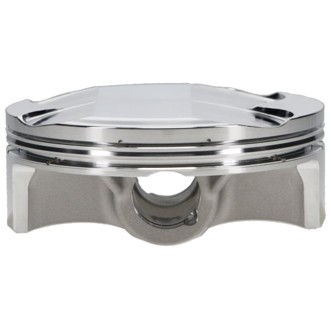

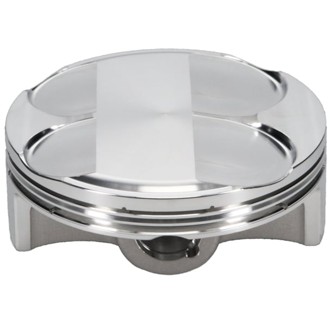

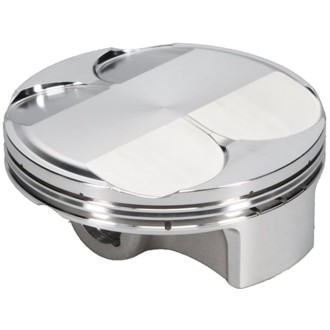

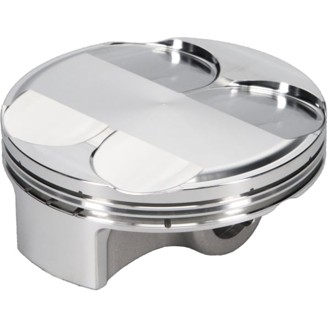

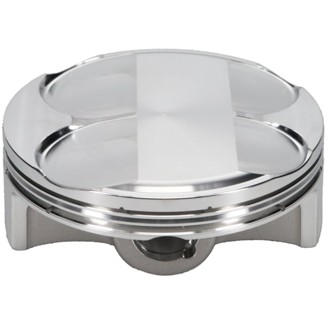

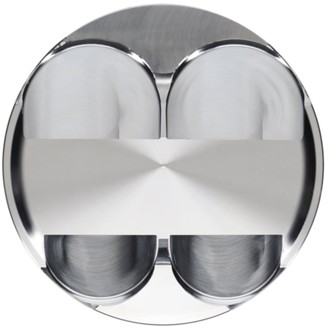

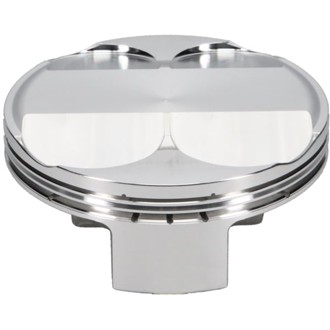

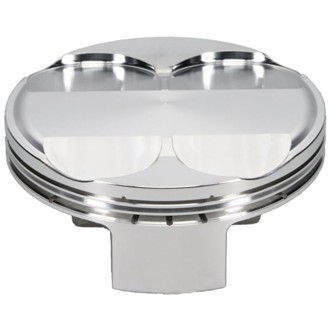

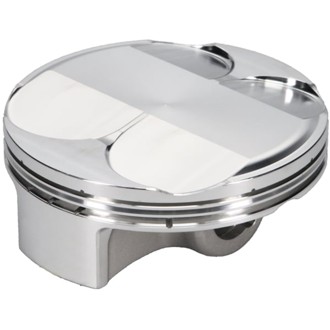

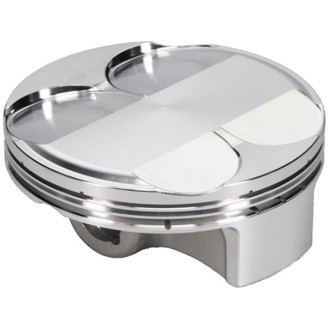

Piston Set, 2618, Dome, 3.465 Bore, 0.807 CD, 0.708 Pin, Set of 1.

Part Number 300267 (132624232)

UPC: 193564219138

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

Option

$299.99 ~~$314.99~~ SAVE 4% FREE SHIPPING

Out of stock

FREE SHIPPING

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of pistons for Husaberg FE 350 / Husqvarna FC 350 / KTM 350 SX-F Engines JE Pistons are engineered, forged and machined 100% in the USA. Equipped with the following custom level features

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

Features & benefits

Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
Designed specifically for Husaberg FE 350 / Husqvarna FC 350 / KTM 350 SX-F Engines to provide optimized performance durability
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Lateral Gas Ports: This process mills slots into the top of the top ring groove and provides a pathway for combustion pressure to get behind the top ring. Resulting in increased ring seal and is most common in circle track applications.

Specifications

3D Undercrown Milling	No
Accumulator Groove	No
Anodize Top Ring Groove	No
Bore Diameter	88.00 mm
Combo 2	No
Compression Height	0.807
Compression Ratio	0.54583333333333
Compression Ratio Actual	13.60:1
Contact Reduction	No
Country Of Origin	USA
Cylinder Head	350SXF
Deck Height	-0.02
Double Pin Oilers	No
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	KTM
Engine Displacement	350
Engine Stroke	2.263 in
Engine Type	ICE
Exhaust Angle	14
Exhaust Depth	.150
Exhaust Diameter	1.300
Forging Type	FSR
Gas Distribution	No
Intake Angle	14
Intake Depth	.186 in
Intake Diameter	1.500 in
Lateral Gas Ports	Yes
Mill Undercrown	No
Oil Groove Width	0.07950 in
Oil Ring Thickness	0.0795 in
Pin Fit	Yes
Piston Average Weight	203 gr
Piston Head Type	Dome
Piston Material	2618
Piston Series	JE Pistons
Piston To Wall Clearance	-0.002 in
Piston Volume	24.60 cc
Product Market	Off-Road
Product Type	Engine Piston Kit
Ring Set - Recommended	YD8800
Ring Set Included	Yes
Ring Set Part Number	YD8800
Skirt Coat	No
Smooth Crown Finish	No
Thermal Crown	No
Top Compression Ring Thickness	0.0400 in
Top Groove Width	0.04000 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Length	1.750 in
Wrist Pin Material	9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter	0.708 in
Wrist Pin Wall Thickness	0.140 in

Warranty

30 Months
