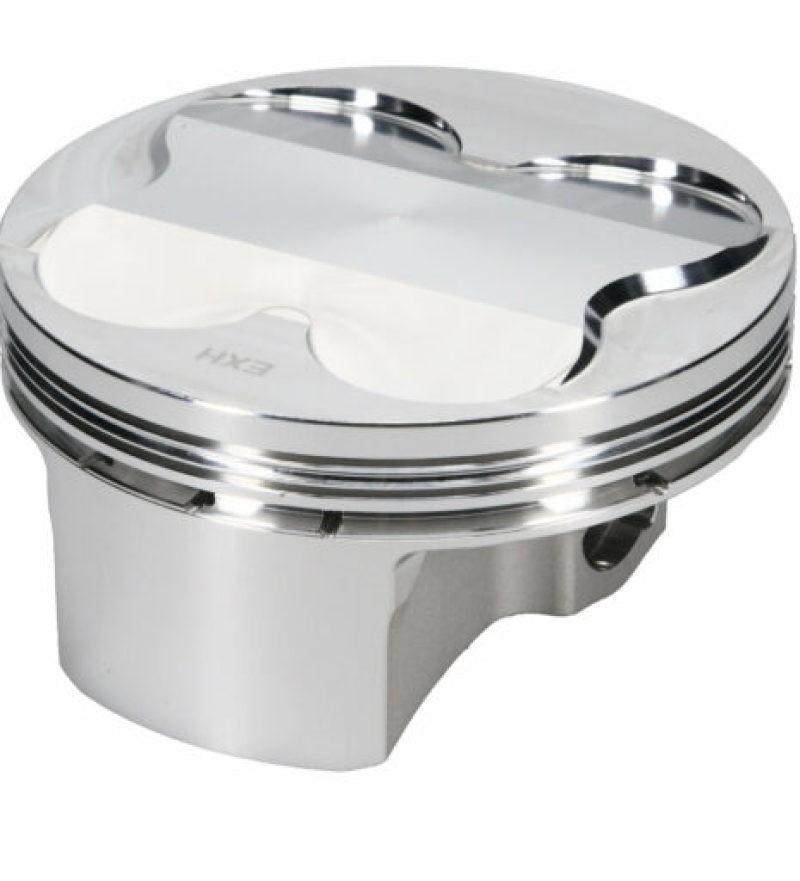

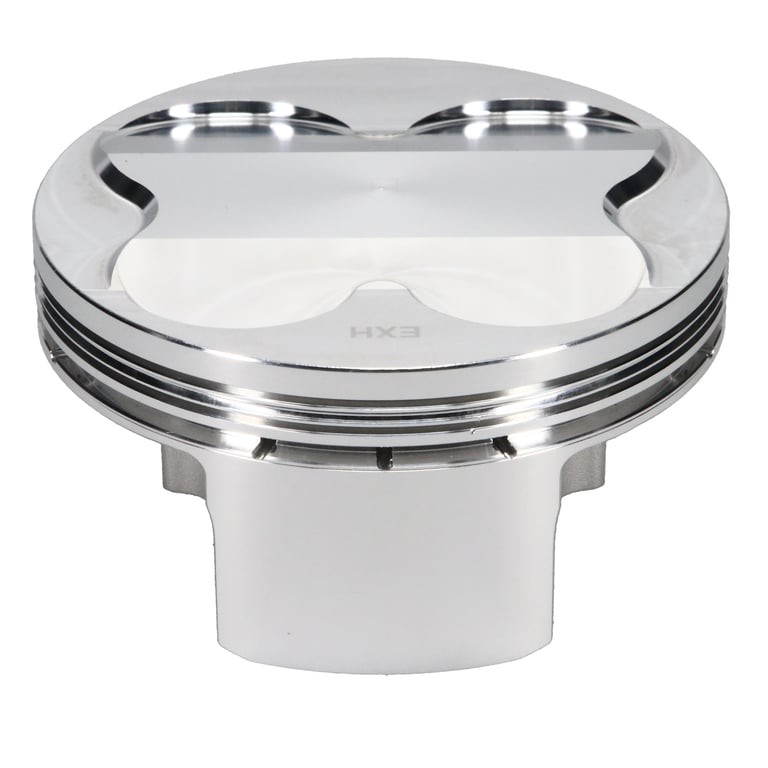

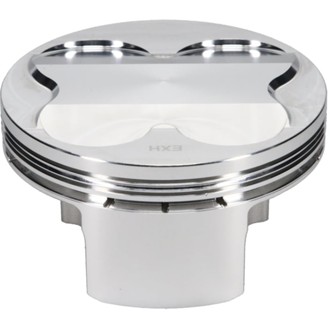

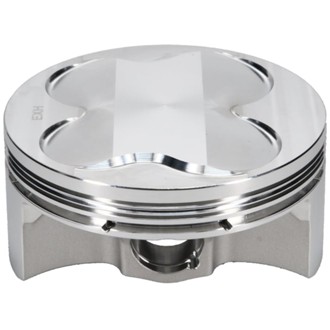

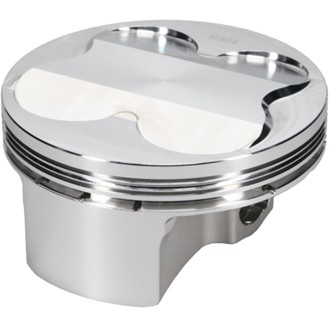

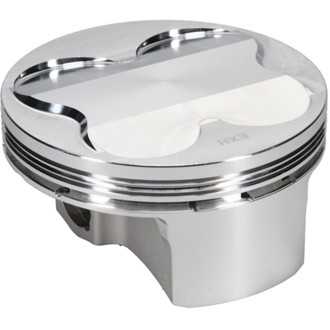

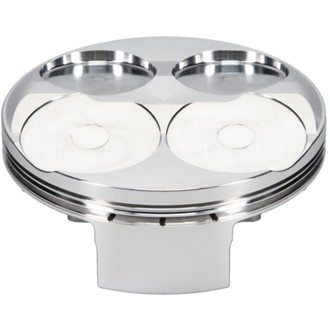

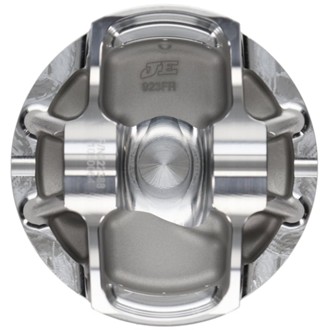

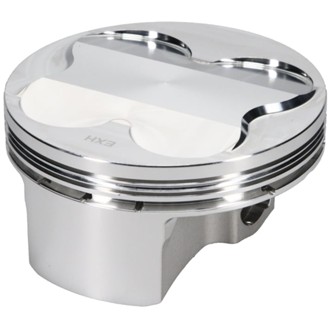

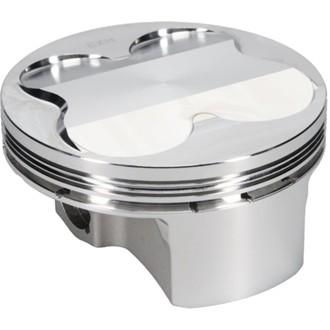

ATV/UTV Series 2003-2007 Polaris PREDATOR 500/2006-2007 OUTLAW 500 Piston Kit

Part Number 222388 (132899143)

UPC: 193564005113

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

Color

$309.99 ~~$325.99~~ SAVE 4% FREE SHIPPING

Out of stock

FREE SHIPPING

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for ATV engines. Engineered, forged and machined 100 percent in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From motocross to dirt track and everything in between, JE Pistons' performance is proven with every handful of throttle and wave of the checkered flag. Equip your quad with the best in forged pistons.

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

Features & benefits

Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Designed specifically for each engine and use application to provide optimized performance durability
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
Designed specifically for Polaris Predator 500/ Outlaw 500 Engines to provide optimized performance durability
Made 100% in the USA
Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.

Specifications

2nd Groove Width	0.0435 in
3D Undercrown Milling	No
Accumulator Groove	Yes
Anodize Top Ring Groove	No
Bore Diameter	105.00 mm
Color	Red
Combo 2	No
Compression Height	1.139
Compression Ratio	0.50347222222222
Compression Ratio Actual	12.50:1
Contact Reduction	No
Country Of Origin	USA
Cylinder Head	PREDATOR
Double Pin Oilers	Yes
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	POLARIS
Engine Stroke	2.543 in
Engine Type	ICE
Exhaust Angle	26
Exhaust Depth	.160
Forging Type	FSR
Gas Distribution	No
Intake Angle	26
Intake Depth	.160 in
Intake Diameter	2.052 in
Lateral Gas Ports	No
Mill Undercrown	No
Oil Groove Width	0.11900 in
Oil Ring Thickness	0.119 in
Pin Fit	Yes
Piston Average Weight	399 gr
Piston Head Type	Dome
Piston Material	2618
Piston Series	JE Pistons
Piston To Wall Clearance	-0.002 in
Piston Volume	0.00 cc
Product Market	ATV
Product Type	Engine Piston Kit
Ring Set - Recommended	J71401-4130-5
Ring Set Included	Yes
Ring Set Part Number	J71401-4130-5
Second Compression Ring Thickness	0.0435 in
Skirt Coat	No
Smooth Crown Finish	No
Thermal Crown	No
Top Compression Ring Thickness	0.0435 in
Top Groove Width	0.04350 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Length	2.250 in
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.905 in
Wrist Pin Wall Thickness	0.150 in

Warranty

30 Months
