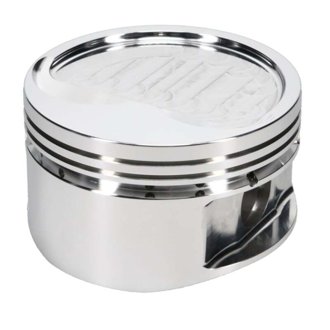

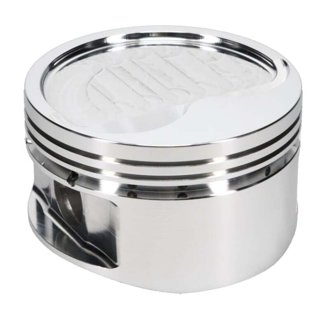

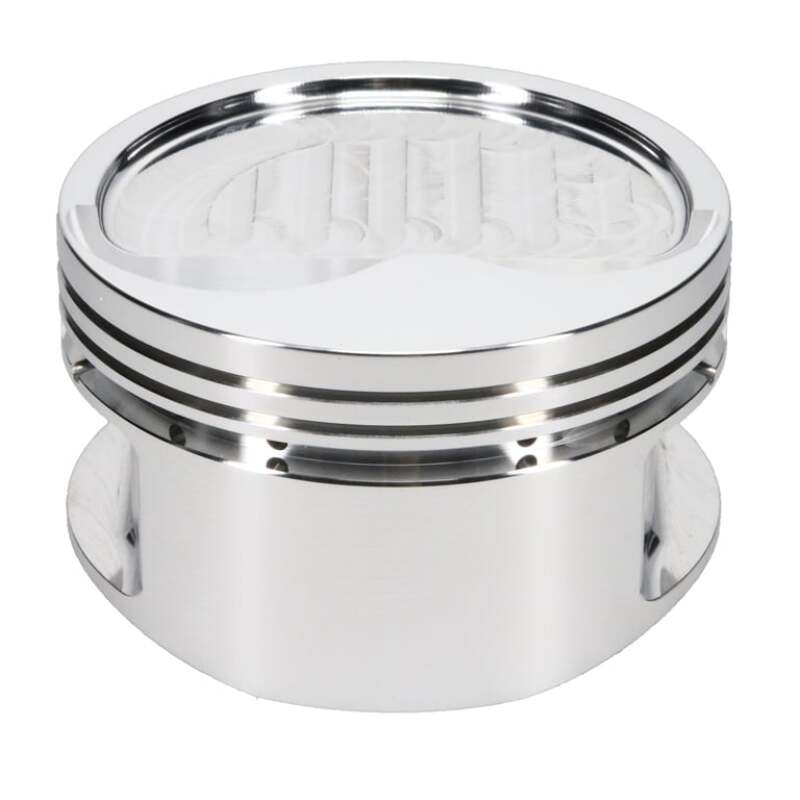

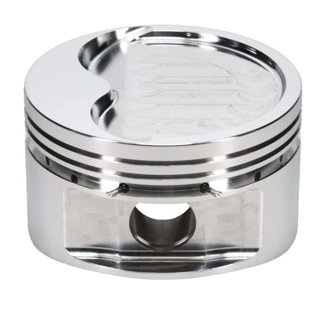

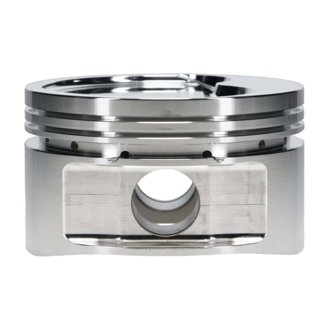

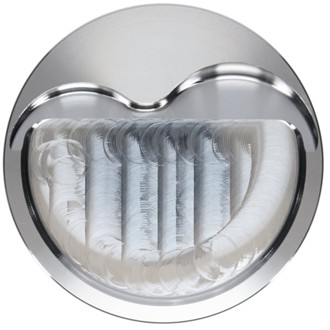

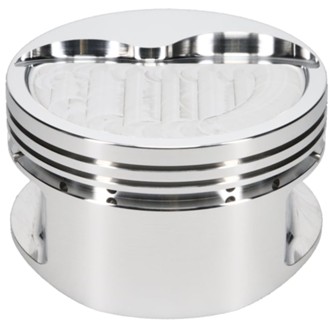

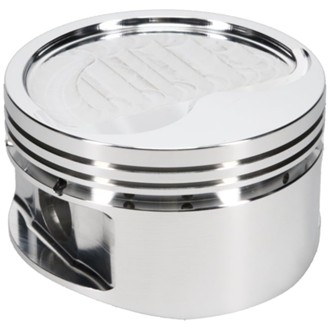

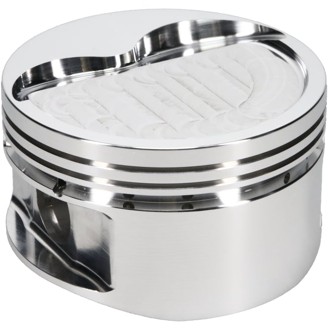

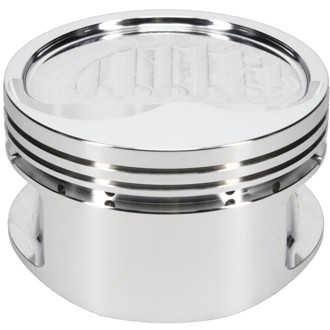

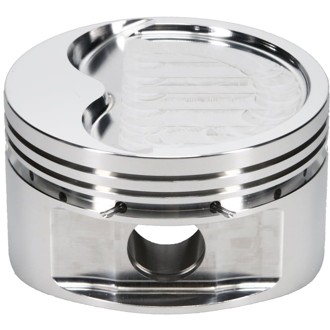

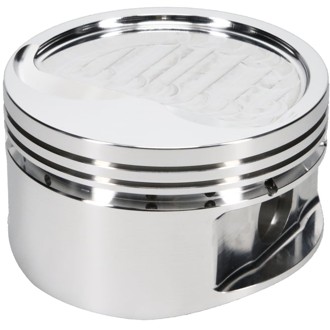

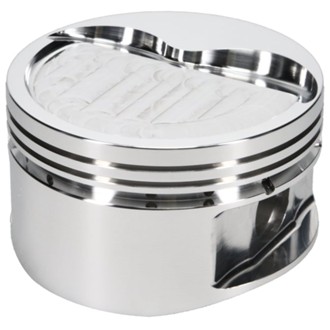

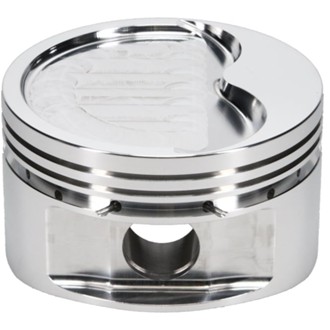

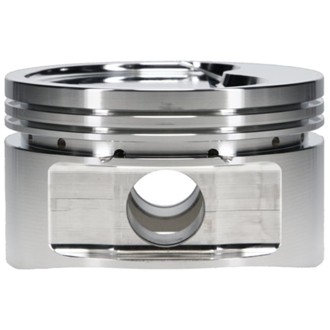

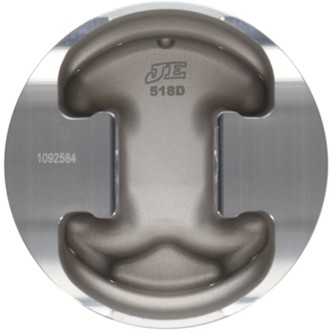

Chrysler 360 Series Inverted Dome Piston Kit

Part Number 207420 (132583339)

UPC: 193564033826

Package contents: 1 Each per Box

$1,176.99 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

JE Auto forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Chrysler 360 Engines. JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

Features & benefits

Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
Designed specifically for Chrysler 360 Engines. To provide optimized performance durability
Includes high-quality wrist pins, and locks
Made 100% in the USA
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin

Specifications

2nd Groove Width	0.064 in
3D Undercrown Milling	No
Accumulator Groove	No
Anodize Top Ring Groove	No
Bore Diameter	4.030 in
Combo 2	No
Compression Height	1.460 in
Compression Ratio	0.38055555555556
Connecting Rod Length	6.125 IN
Contact Reduction	No
Country Of Origin	USA
Cylinder Head	360 WEDGE
Double Pin Oilers	Yes
DVGP	No
Econo Undercrown Milling	No
EN Plating	No
Engine	Small Block
Engine Detail	Small Block
Engine Displacement	400 Small Block
Engine Family	Small Block
Engine Stroke	4.000 in
Engine Type	ICE
Exhaust Angle	18
Exhaust Depth	SP
Forging Type	Round
Gas Distribution	No
Intake Angle	18
Intake Depth	.260 in
Intake Diameter	2.254 in
Lateral Gas Ports	No
Make	Chrysler
Mill Undercrown	No
Oil Groove Width	0.18800 in
Oil Ring Thickness	0.188 in
Pin Fit	Yes
Piston Average Weight	471 gr
Piston Head Type	Dish
Piston Material	2618
Piston Quantity	8
Piston Series	JE Pistons
Piston To Wall Clearance	-0.004 in
Piston Volume	-20.00 cc
Product Market	Domestic
Product Type	Engine Piston Kit
Ring Set Included	No
Second Compression Ring Thickness	0.0640 in
Skirt Coat	No
Smooth Crown Finish	No
Thermal Crown	No
Top Compression Ring Thickness	0.0640 in
Top Groove Width	0.06400 in
Tuff Skirt	No
Ultra Dome	No
Ultra Groove	No
Ultra Groove Plus Gas Port	No
Vertical Gas Ports	No
Wrist Pin Length	2.750 in
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927 in
Wrist Pin Wall Thickness	0.150 in

Warranty

30 Months
