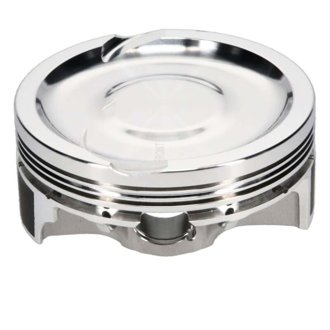

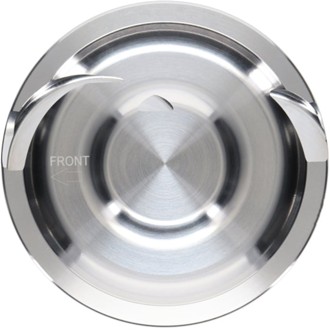

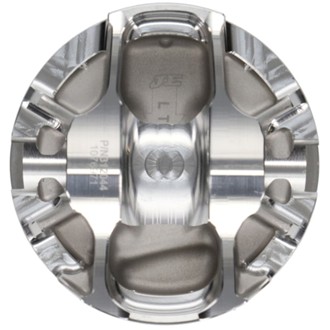

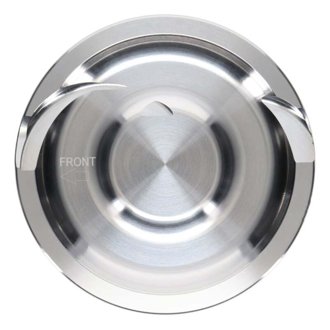

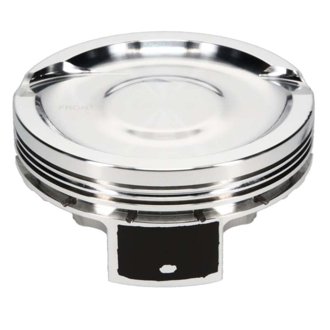

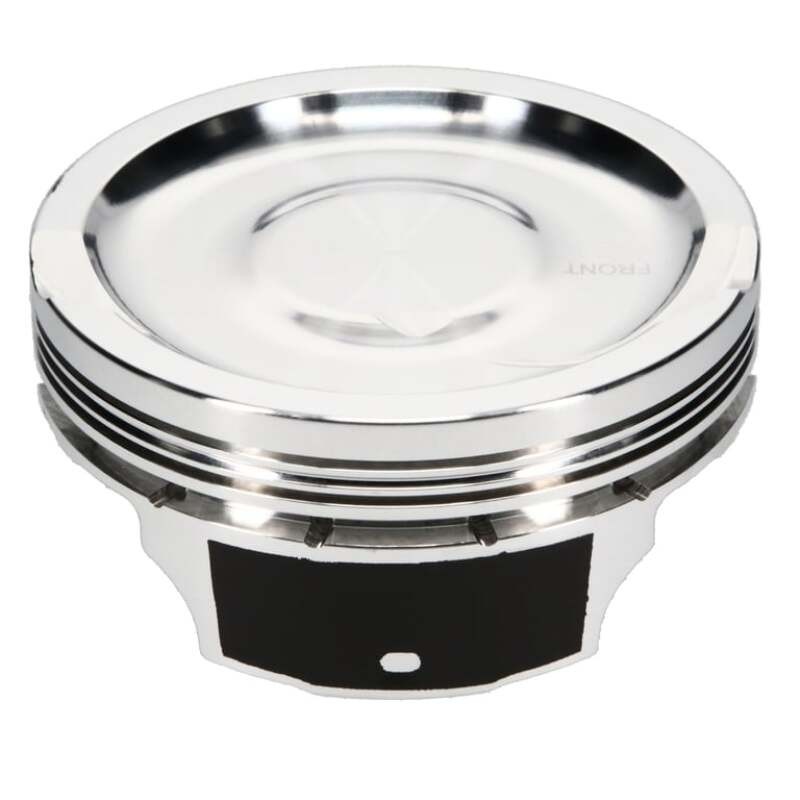

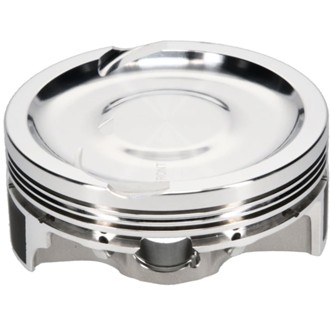

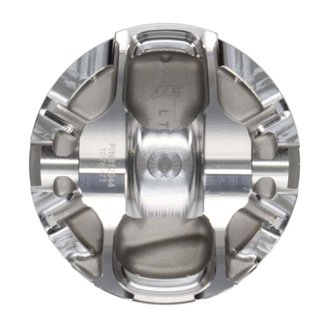

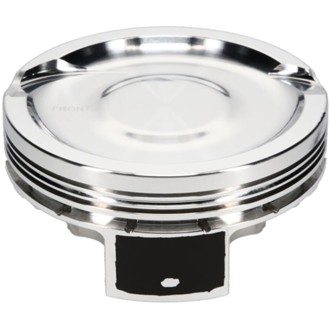

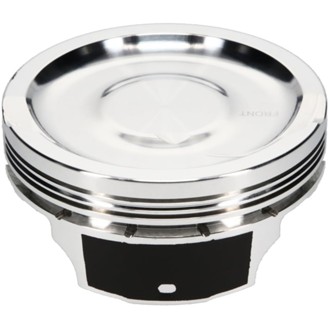

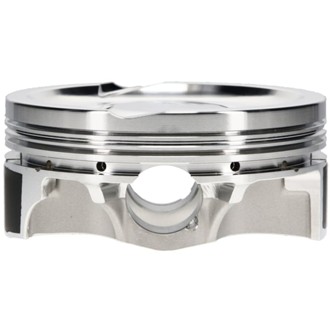

Chevrolet LS Series Piston Kit

Part Number 279780 (132583598)

UPC: 193564219732

Package contents: 1 Each per Box

Select vehicle for guaranteed fit

$989.99 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.

Features & benefits

Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Designed specifically for each engine and use application to provide optimized performance durability
Made 100% in the USA

Specifications

2nd Groove Width	0.06 in
Bore Diameter	4.130 in
Compression Height	1.163 in
Compression Ratio	0.41736111111111
Connecting Rod Length	6.125 in
Country Of Origin	USA
Cylinder Head	GM LS7
Deck Height	9.240 in
Engine	LS7
Engine Displacement	NISSAN
Engine Family	LS
Engine Stroke	4.000 in
Engine Type	ICE
Exhaust Angle	12
Exhaust Depth	S
Exhaust Diameter	1.750
Forging Type	FSR
Intake Angle	24
Intake Depth	.145 in
Intake Diameter	1.420 in
Make	Chevrolet
OEM Bore Diameter	4.125
Oil Groove Width	0.15000 in
Oil Ring Thickness	0.149 in
Oversized	Yes
Oversized Amount	0.005
Piston Average Weight	439
Piston Head Type	Dish
Piston Material	2618
Piston Quantity	8
Piston Series	JE Pistons
Piston Sub-Series	LS7 Inverted Dome
Piston To Wall Clearance	-0.005499 in
Piston Volume	-22.00 cc
Pro Seal Head Gasket	GM1021-051
Product Market	Domestic
Product Type	Engine Piston Kit
Ring Set - Recommended	JG31F8-4135-2
Ring Set Included	No
Ring Set Thickness	1.20 MM x 1.50 MM x 3.00 MM
Second Compression Ring Thickness	0.0600 in
Top Compression Ring Thickness	0.0480 in
Top Groove Width	0.06000 in
Wrist Pin Included	Yes
Wrist Pin Length	2.250 in
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927 in
Wrist Pin Part Number	927-2250-15-51C
Wrist Pin Retainer Included	Yes
Wrist Pin Retainer Part Number	927-073-MW
Wrist Pin Wall Thickness	0.150 in

Warranty

30 Months

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Carb Status

California carb status to be completed
