RMStator® RMS023-107140 - Red Machined Lithium-Ion Battery Compatible Regulator

Brand new Lithium-Ion Batteries Compatible MOSFET Voltage Regulator (CNC)
WORKS WITH LITHIUM BATTERIES ONLY

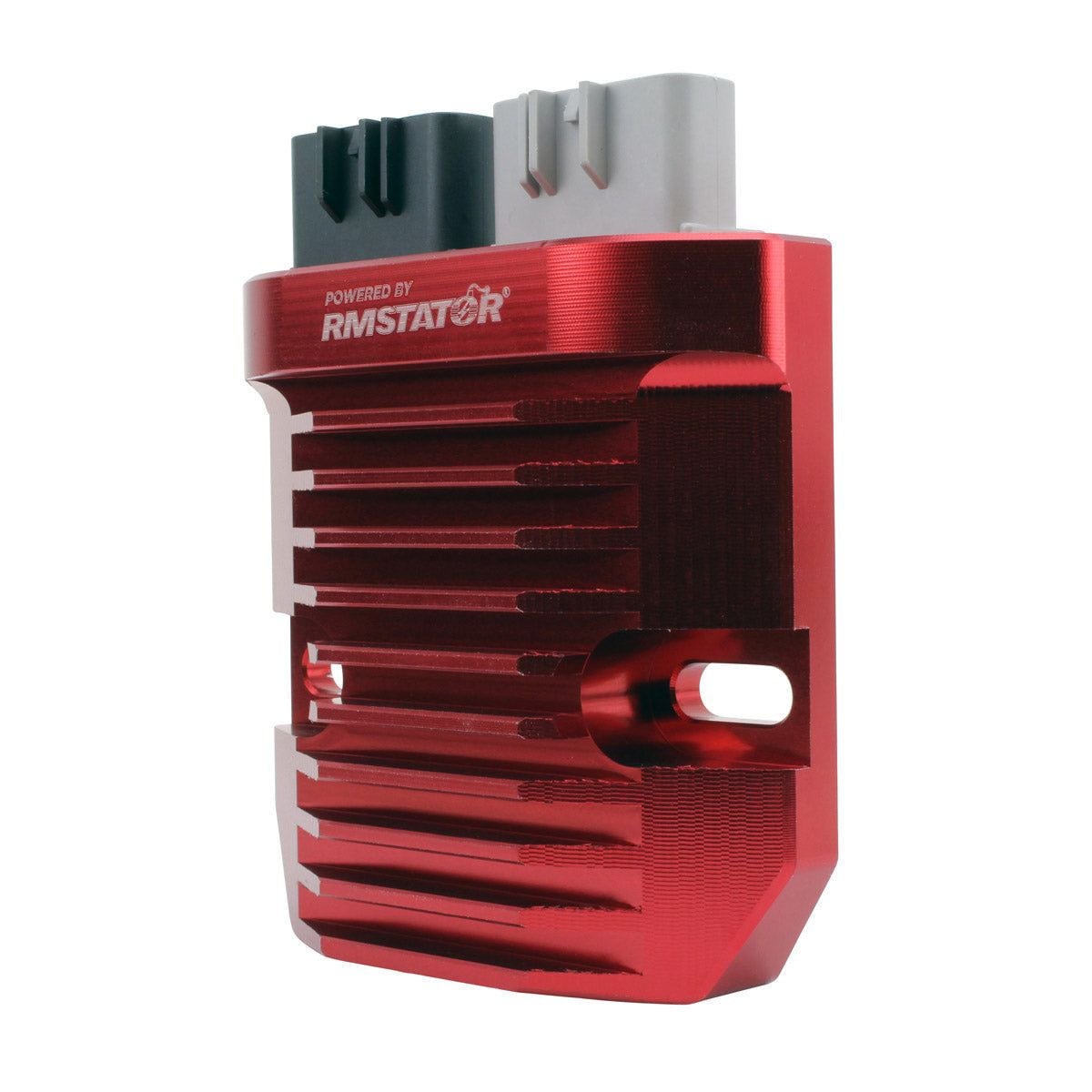

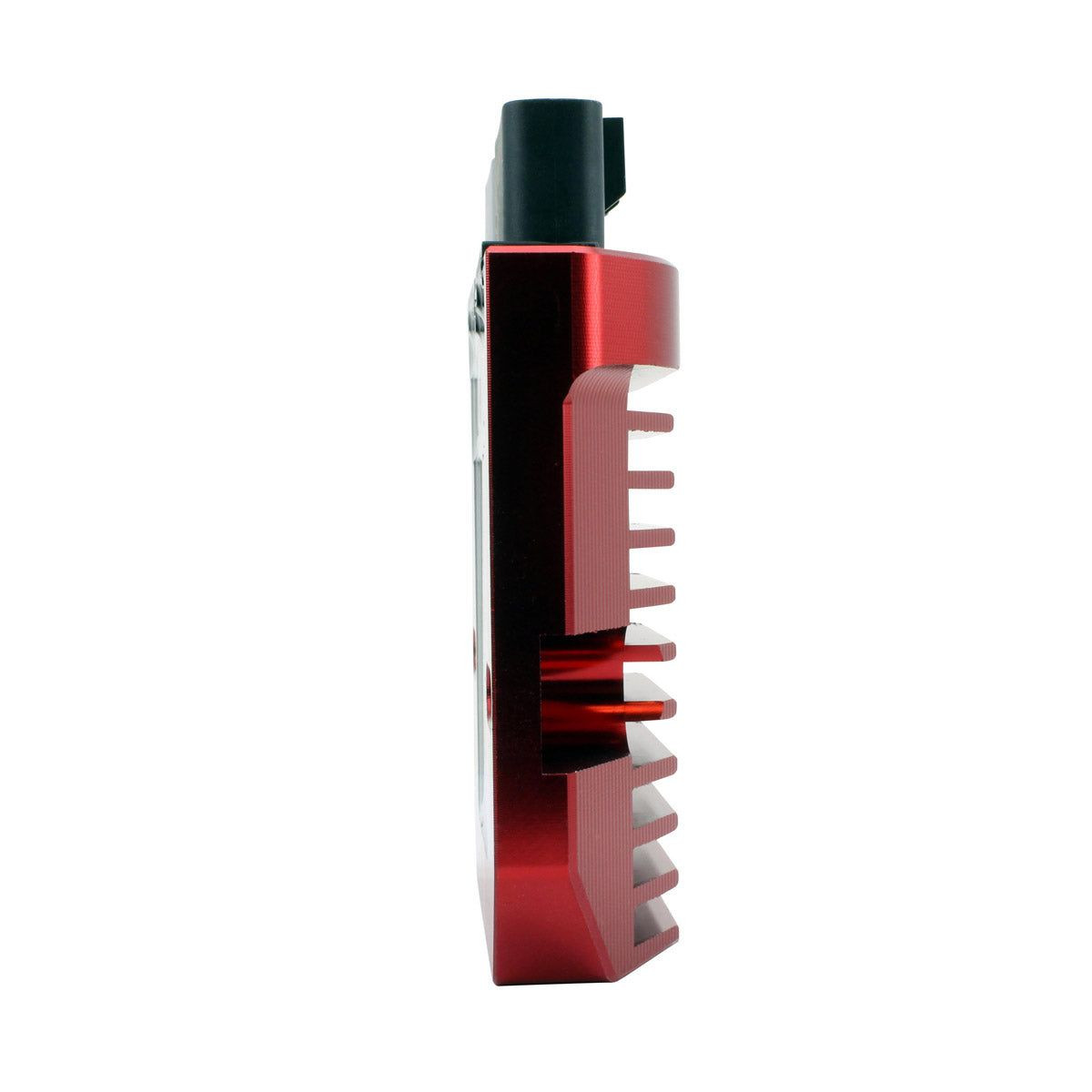

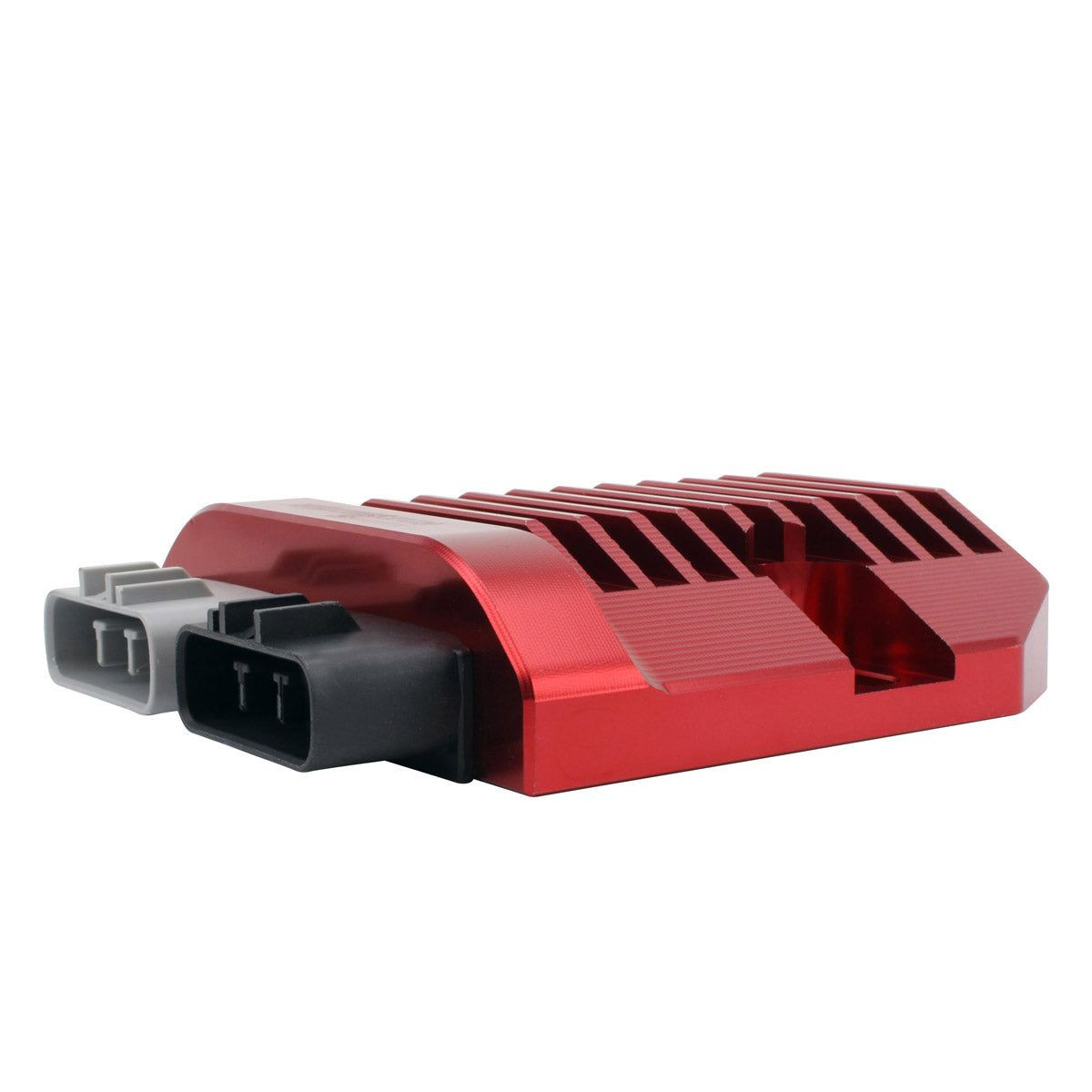

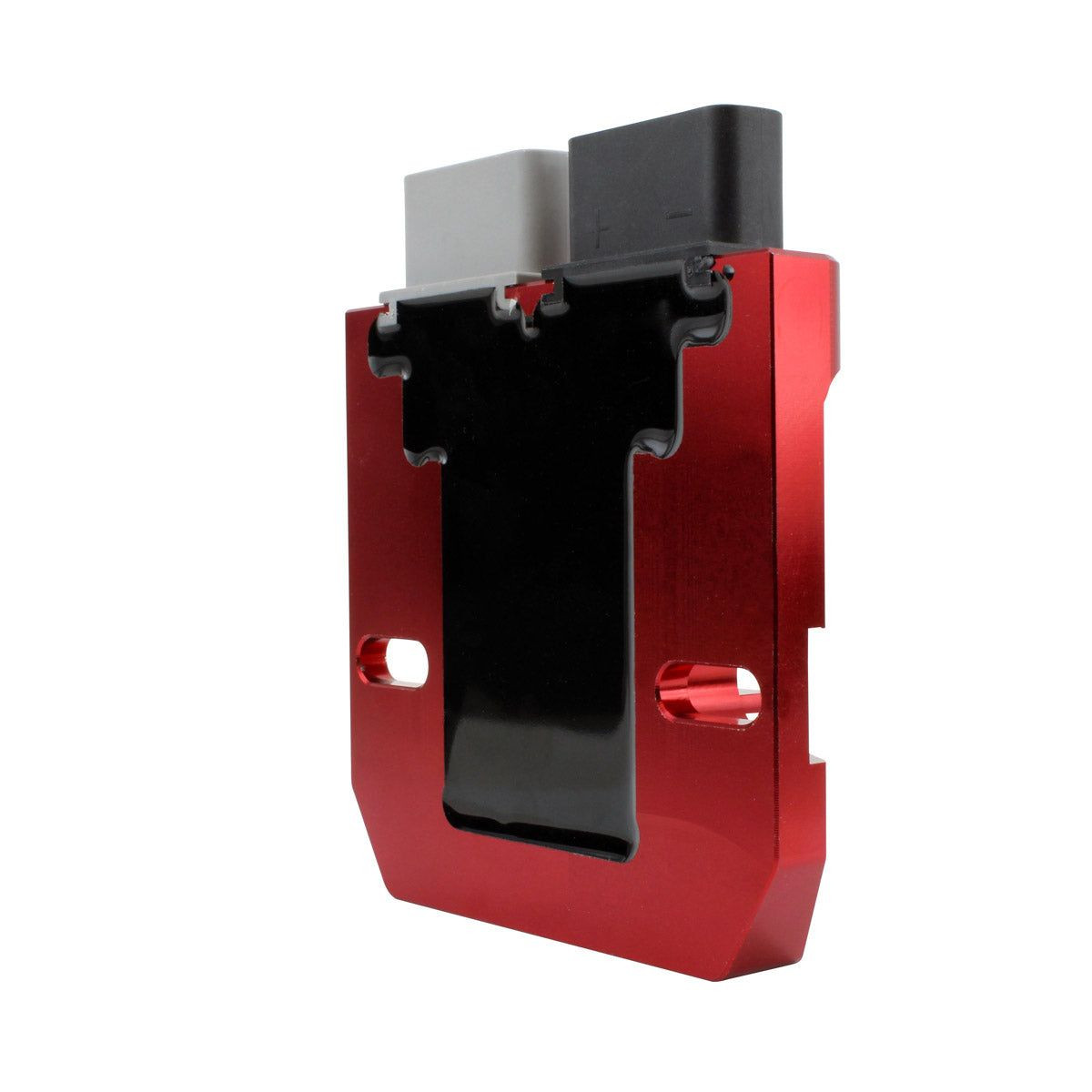

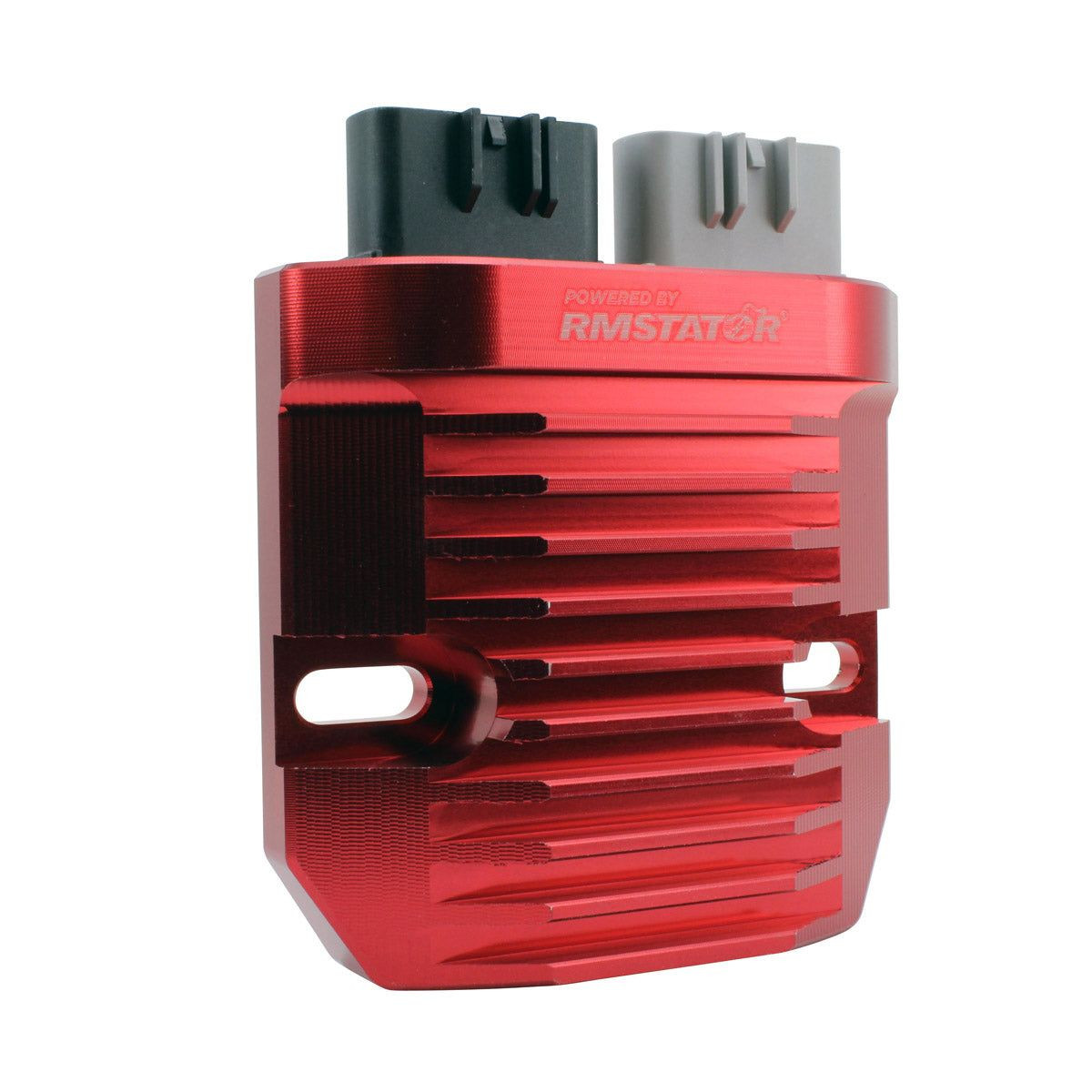

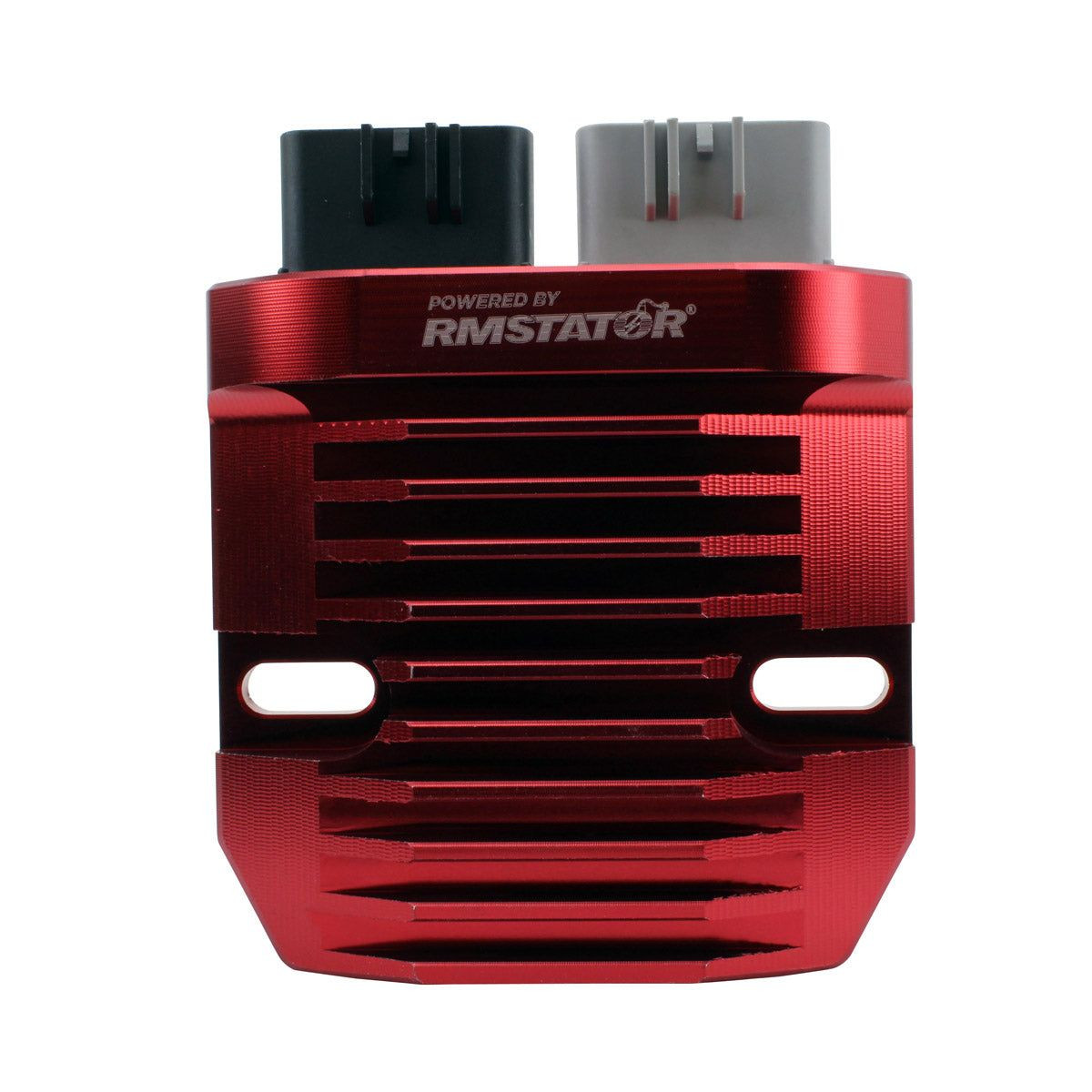

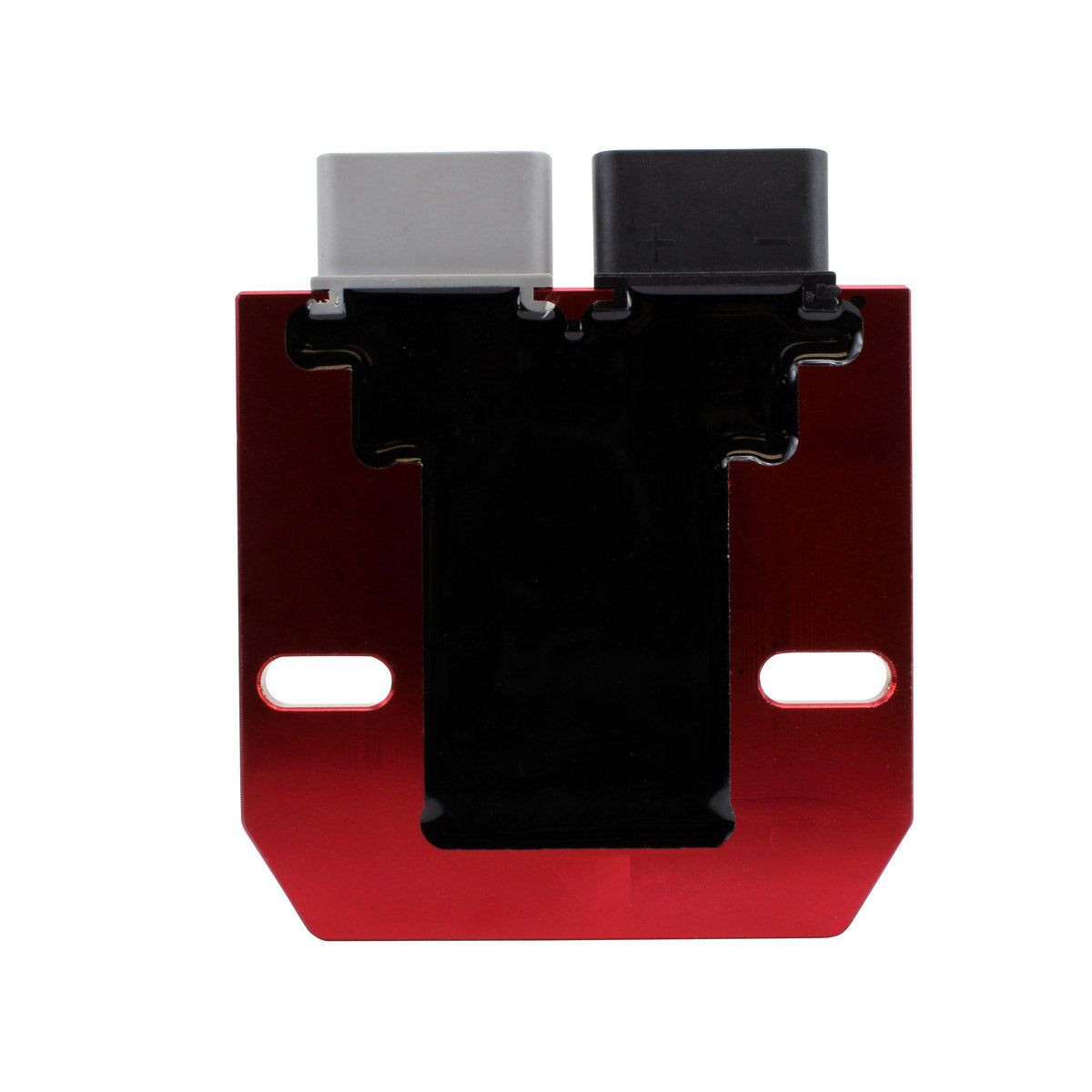

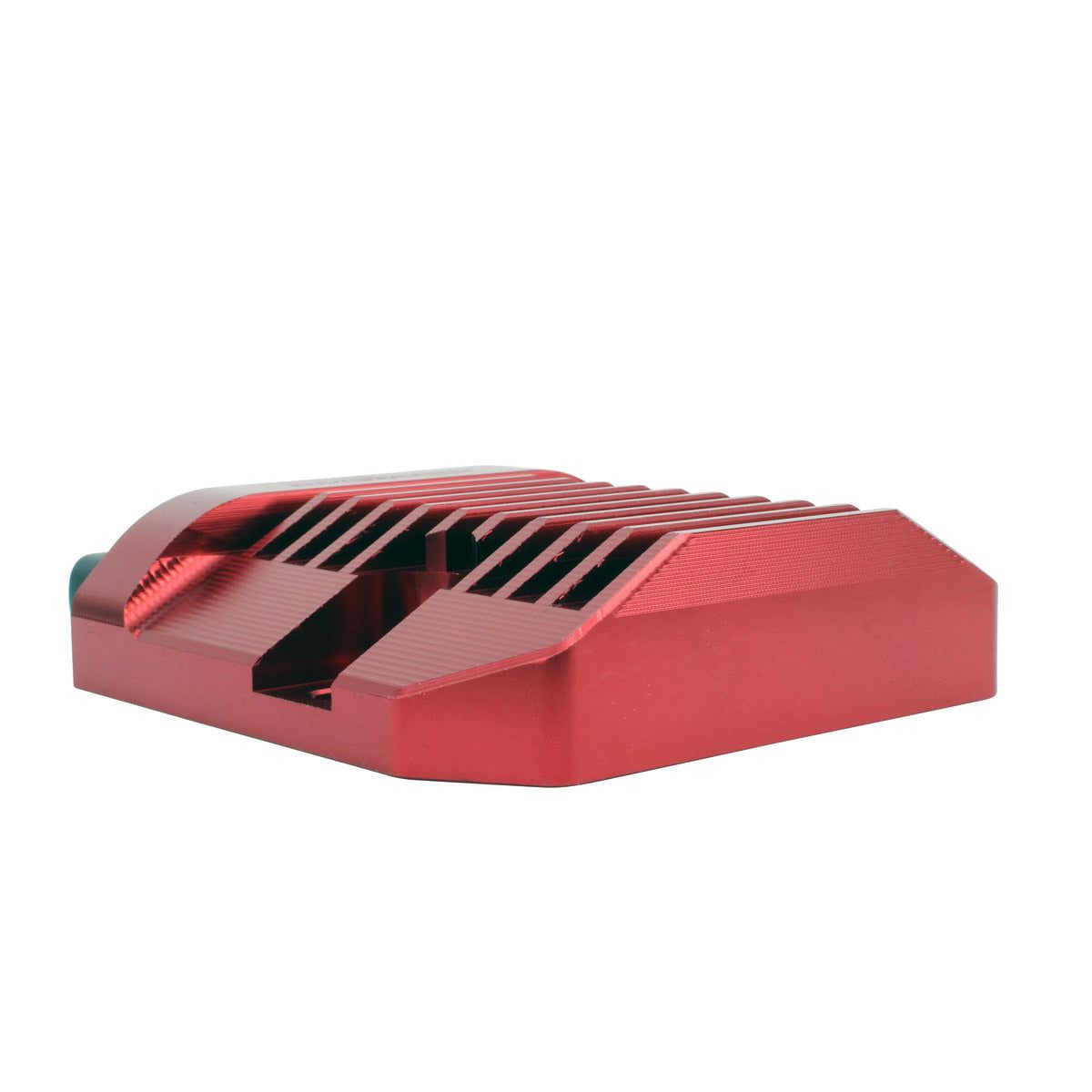

Our new red machined aluminum MOSFET voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components
All shipped products are tested

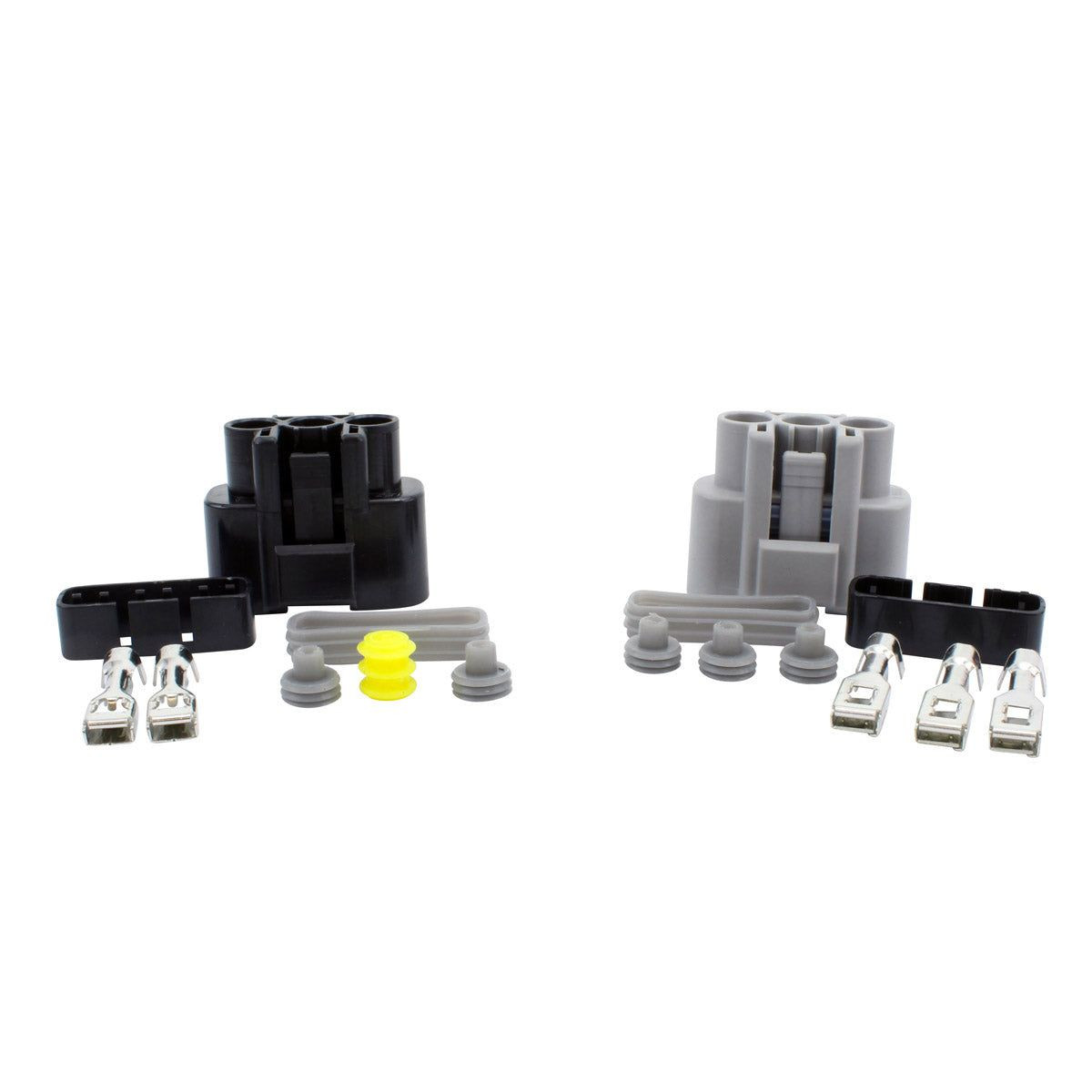

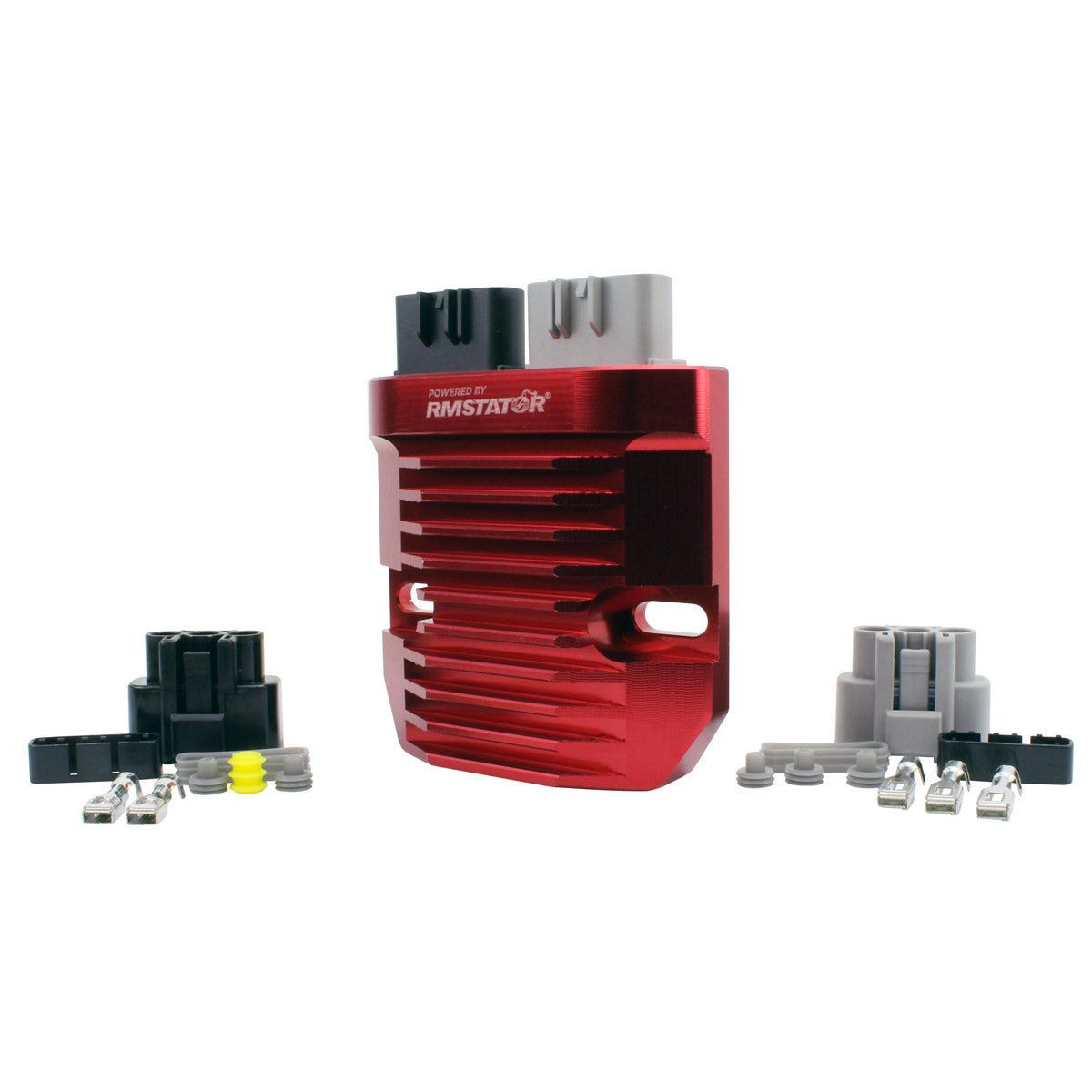

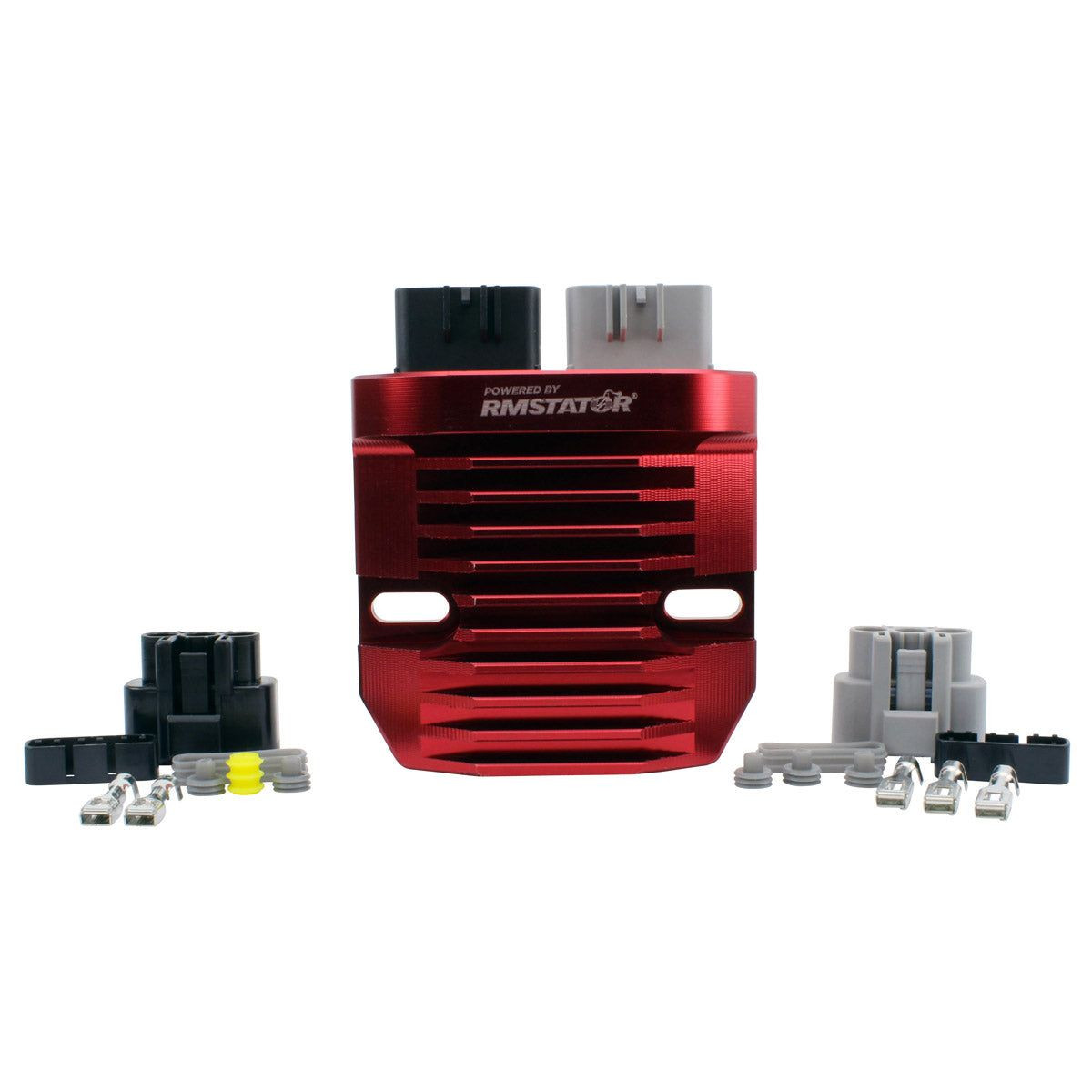

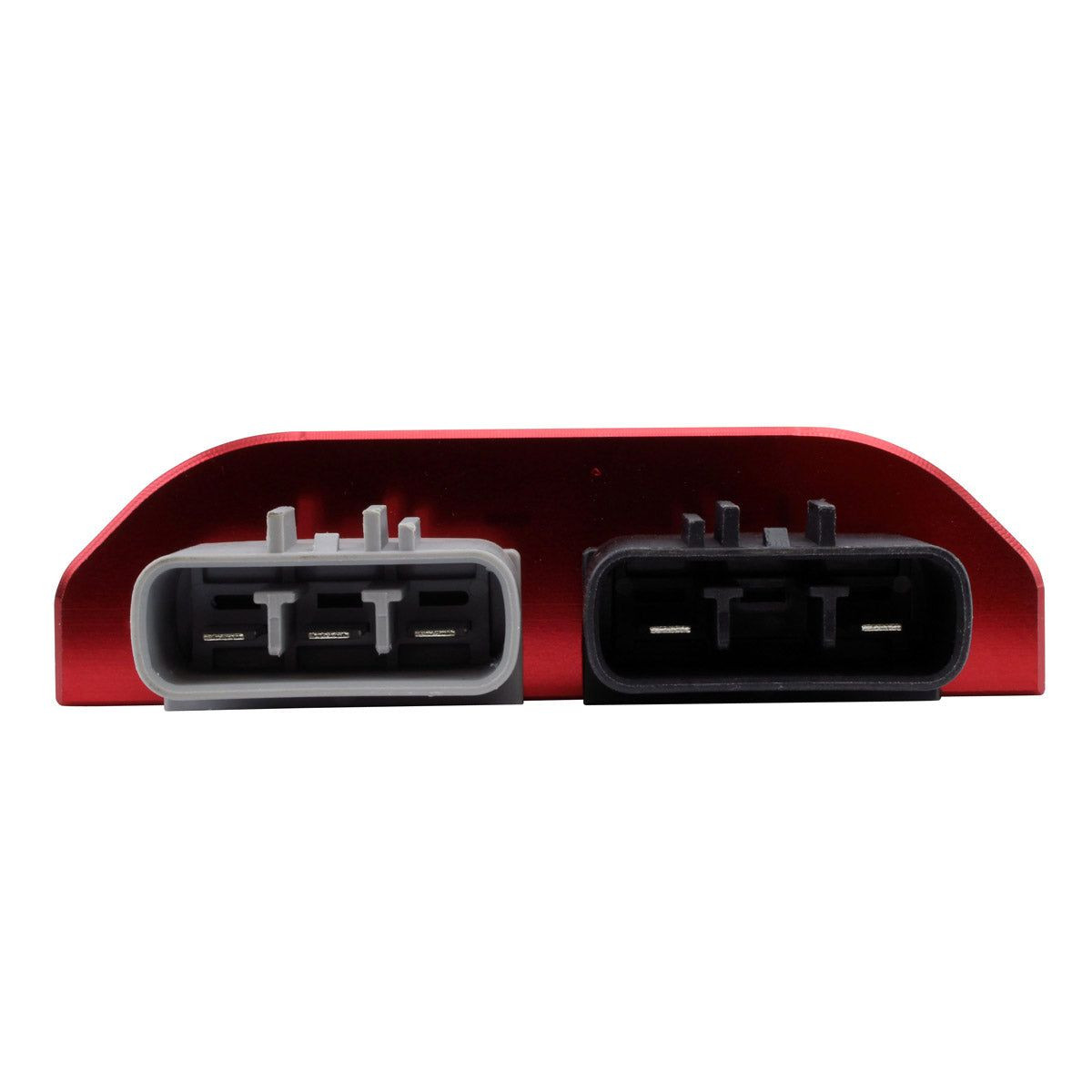

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
*
Why do you need a different voltage regulator for lithium batteries?
Lithium batteries have different charging requirements than Lead Acid or AGM batteries that can severely affect their lifespan and performance. The key factors in safe and reliable lithium battery charging are the output DC voltage ripple and average output voltage. The RMSTATOR regulator is designed around the optimal parameters for these factors.
The ripple effect is all that matters
Charging voltage ripple in a powersports application is the difference between the highest and lowest voltages from the voltage regulator output. By nature, a common shunt style voltage regulator will have a fairly high voltage ripple due to the regulation shunt switches opening and closing frequently. Each on/off transition will cause some variation in the output voltage, this is unavoidable. Keeping this to minimum is critical for Lithium batteries, and the RMSTATOR Lithium regulator is designed around this feature.
In a perfect world, a ripple of less than 10% of the output voltage (~1.5V for a typical regulator), would be ideal, however is not practical for this type of regulator. The RMSTATOR Lithium regulator is able to maintain a less than 4 Volts output ripple, compared to verified test results of our competitors 8 volts. Keep in mind this ripple voltage is only seen via an Oscilloscope sampling the voltage 1000’s of times a second, and is not the same as your average charging voltage as measured by a multimeter.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.

Extended battery life
Extends the battery’s life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
How does a Mosfet regulator rectifier work?
With design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Before installing your new CNC Mosfet Voltage Regulator Rectifier :
Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
