Vehicle Fitment
Kawasaki
Suzuki
Specifications
| Series Regulator | |
|---|---|
| Dimensions | |
| Width | |
| Length | |
| Height | |
| Fixation holes center to center | |
| Other specifications | |
| Number of plugs | |
| Number of pins | |
| Minimum Charging Voltage | |
| Maximum Charging Current | |
| Open Circuit Voltage | |
| Operation Temperature | |
| Bypass Harness | |
| Wires length | |
| Number of plugs_1 | |
| Number of pins_1 | |
| Number of wires |
Features
- Blend of quality, safety and reliability that makes the difference
- Built tough from superior-grade materials to last for decades
- Rigorously engineered to outlast and outperform the competition
Product Details
Series Voltage Regulator Rectifier by RMStator®. Bypass Free Power Mod. BENEFITS OF SERIES VOLTAGE REGULATORS . SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifiers and way cooler than OEM parts. Power only flows through the electrical components when the battery is charging. Allows the stator to have lower current flowing when not used, extending its lifetime. The regulator is easier to mount because it is smaller than the OEM. ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY . RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely. This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components. ABOUT THE BYPASS HARNESS . This bypass harness allows you to connect your new series regulator directly to your battery. Bypassing feet of wire and multiple connectors on your main wiring harness to provide a safer and more direct connection. INSTALL LIKE A PRO . We include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
BENEFITS OF SERIES VOLTAGE REGULATORS
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifiers and way cooler than OEM parts.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
The regulator is easier to mount because it is smaller than the OEM.
ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

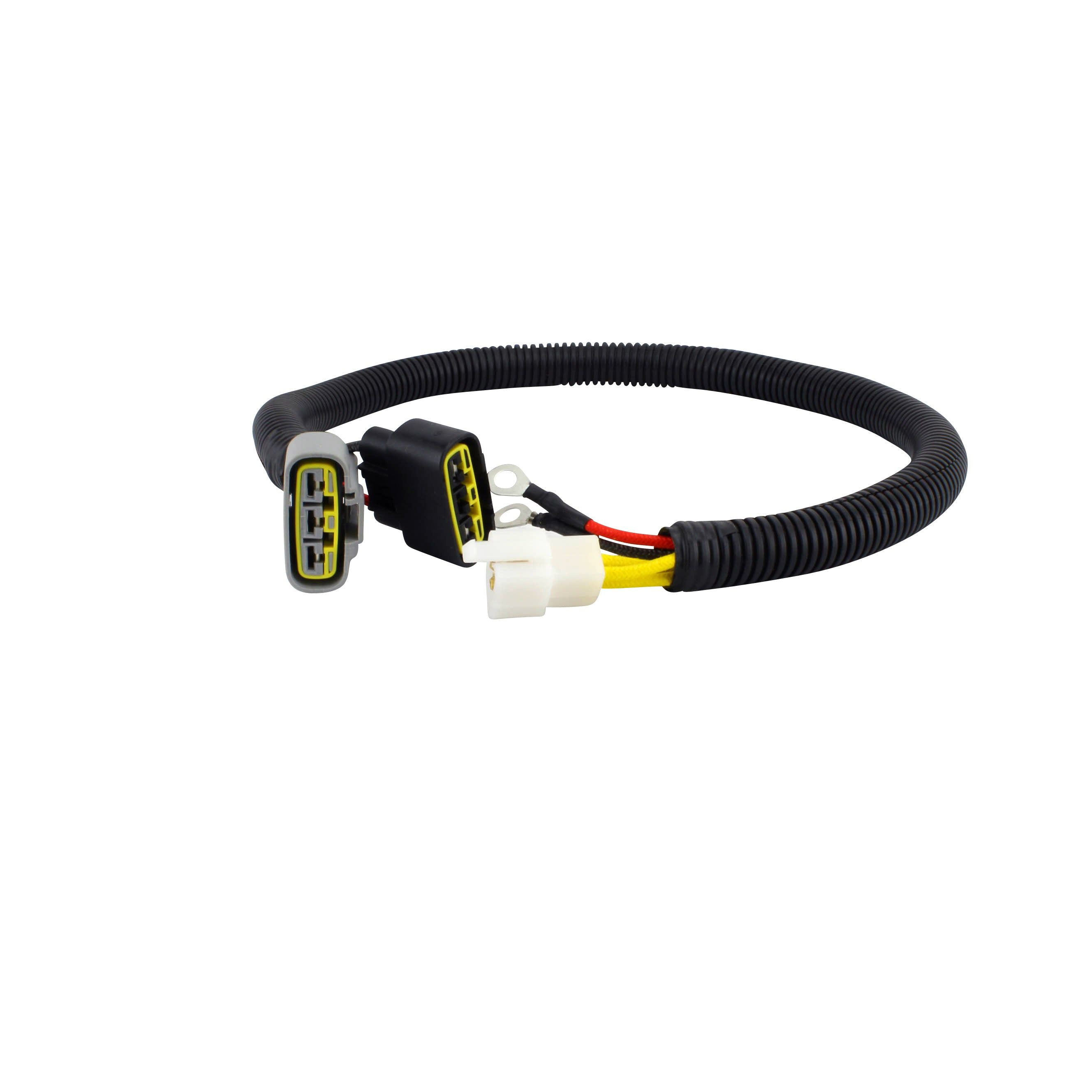

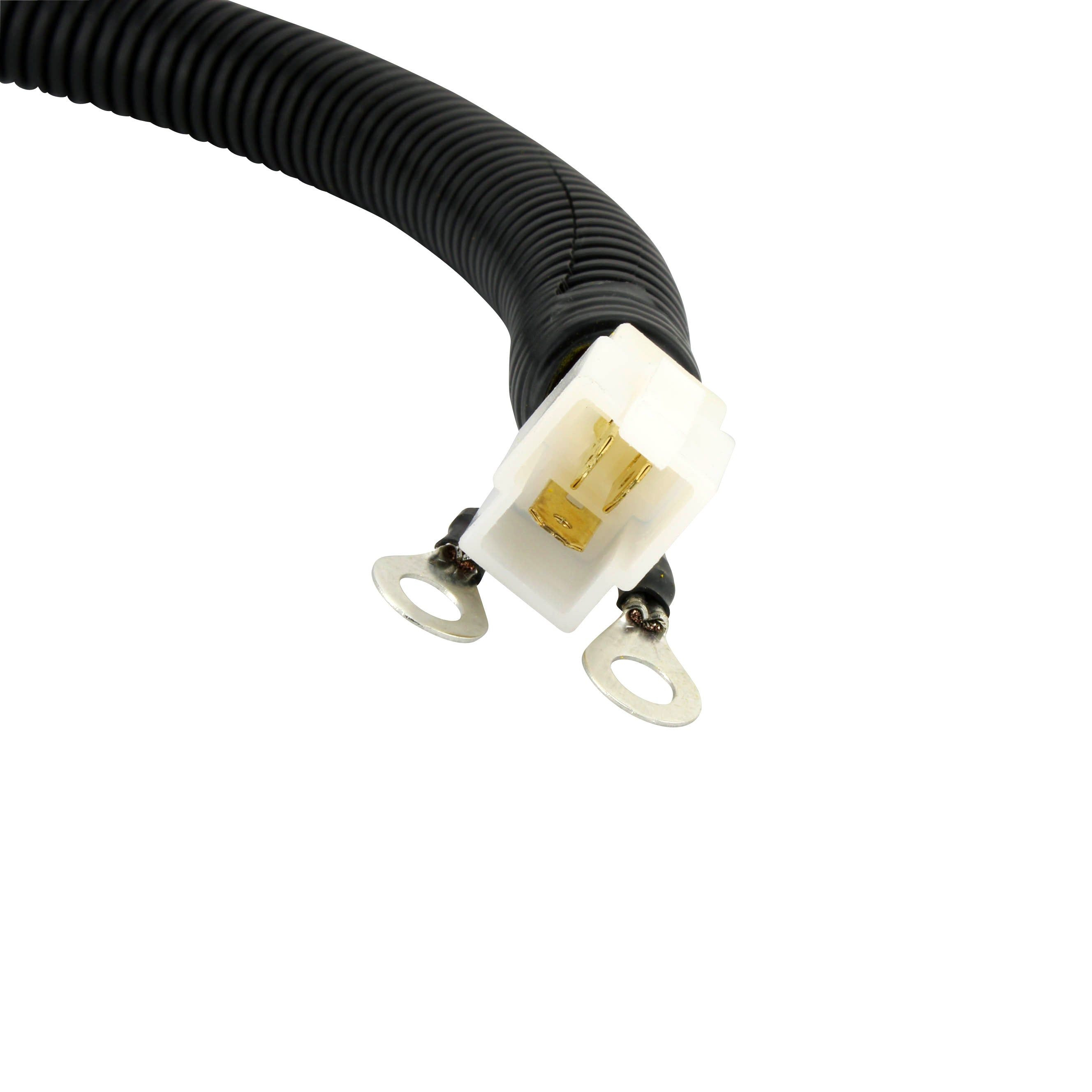

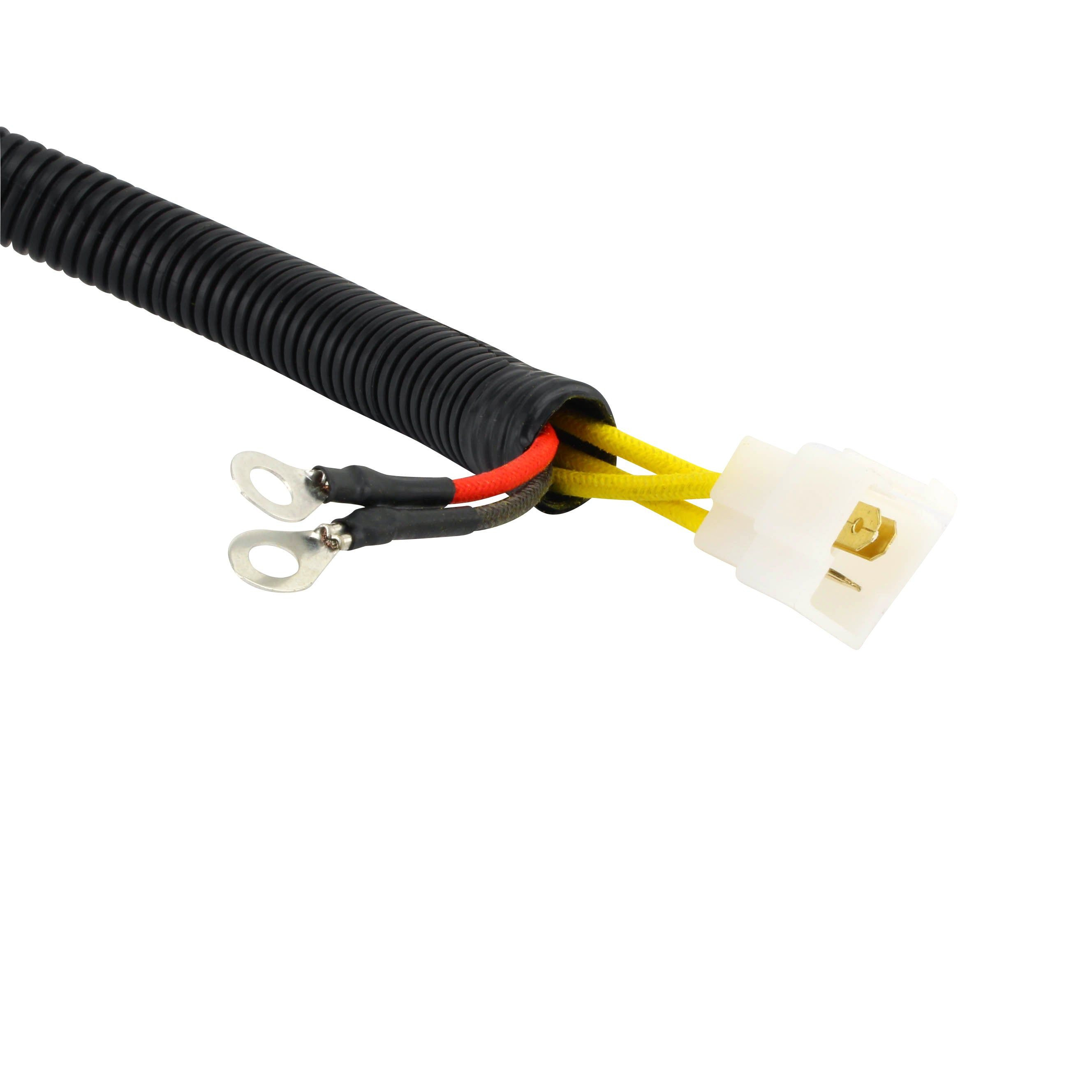

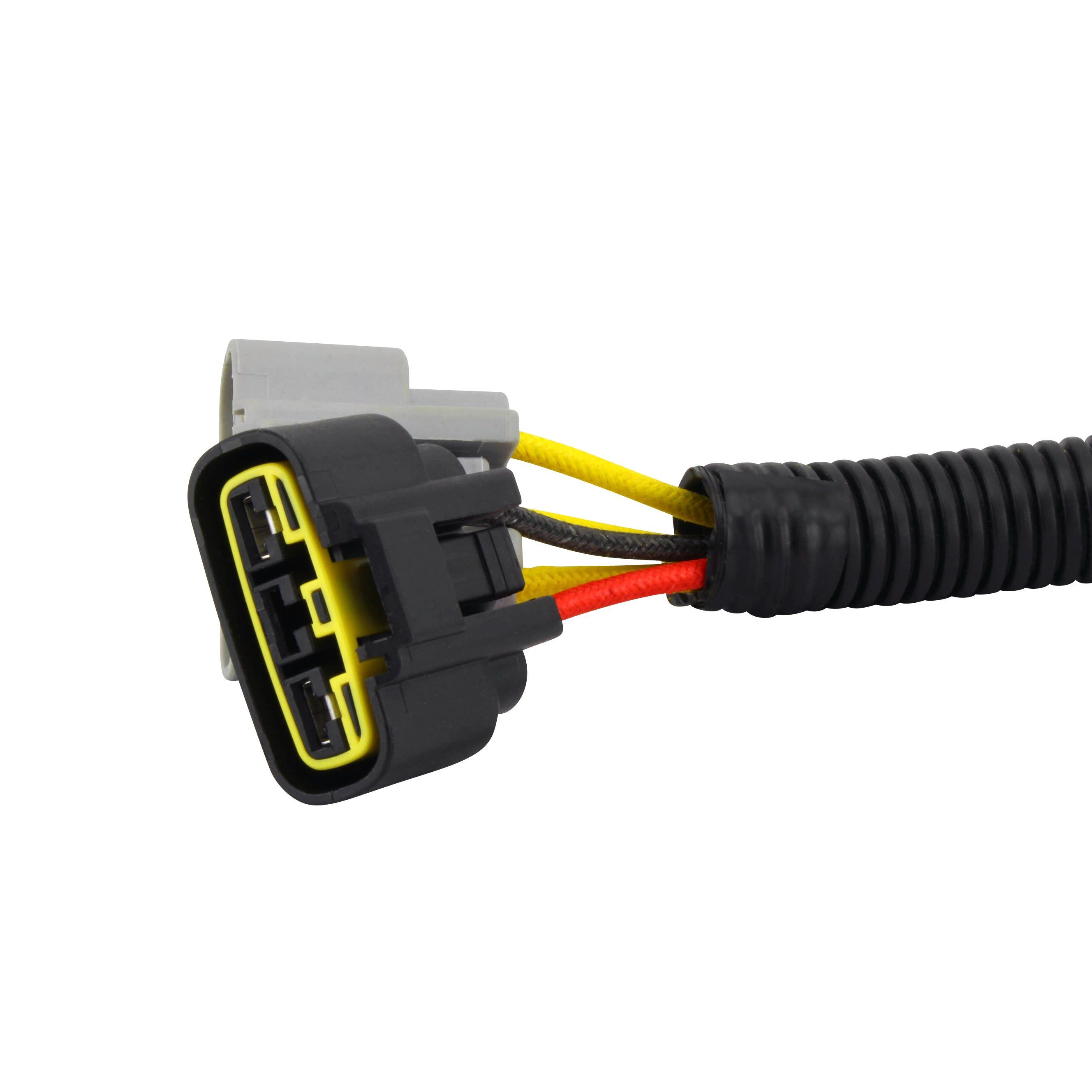

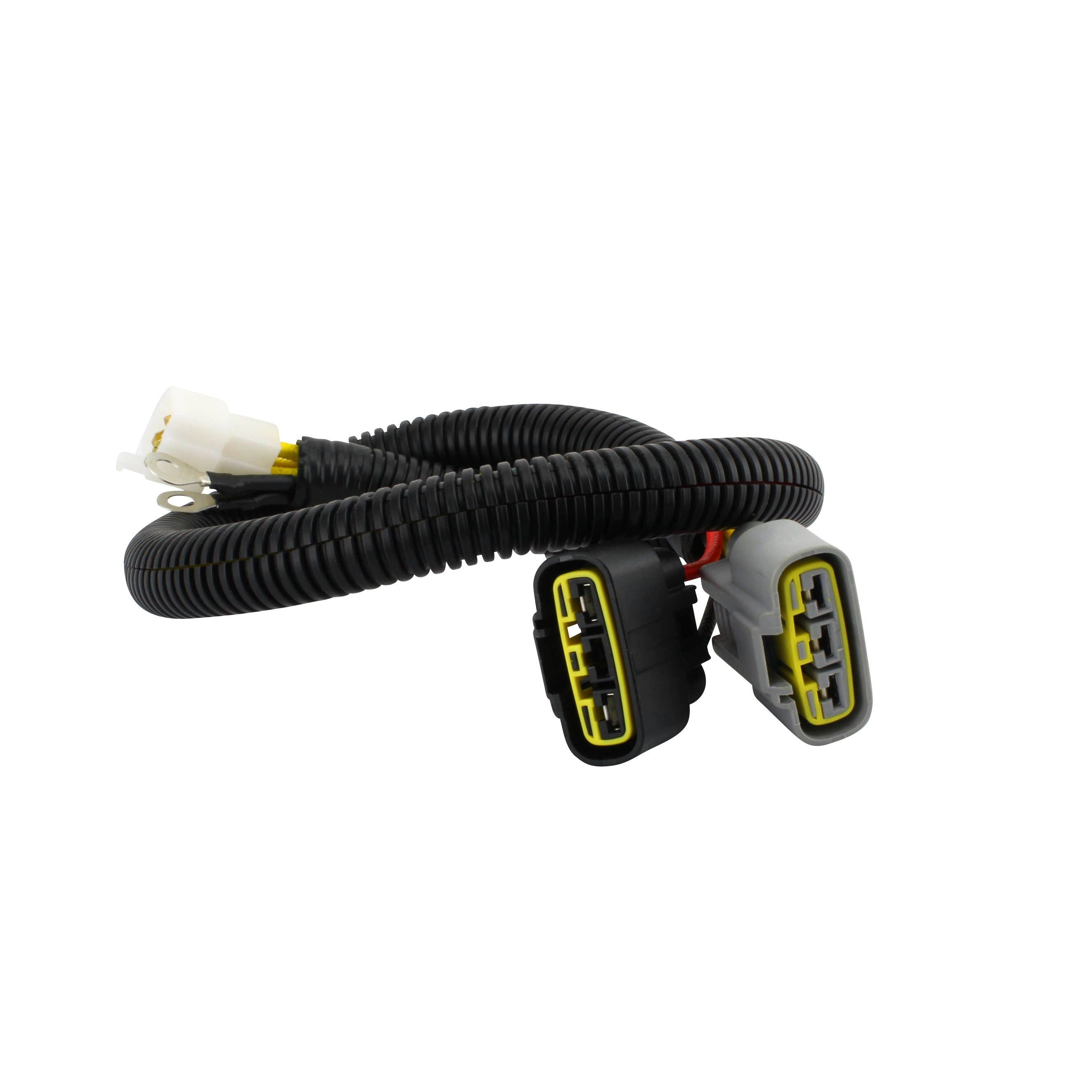

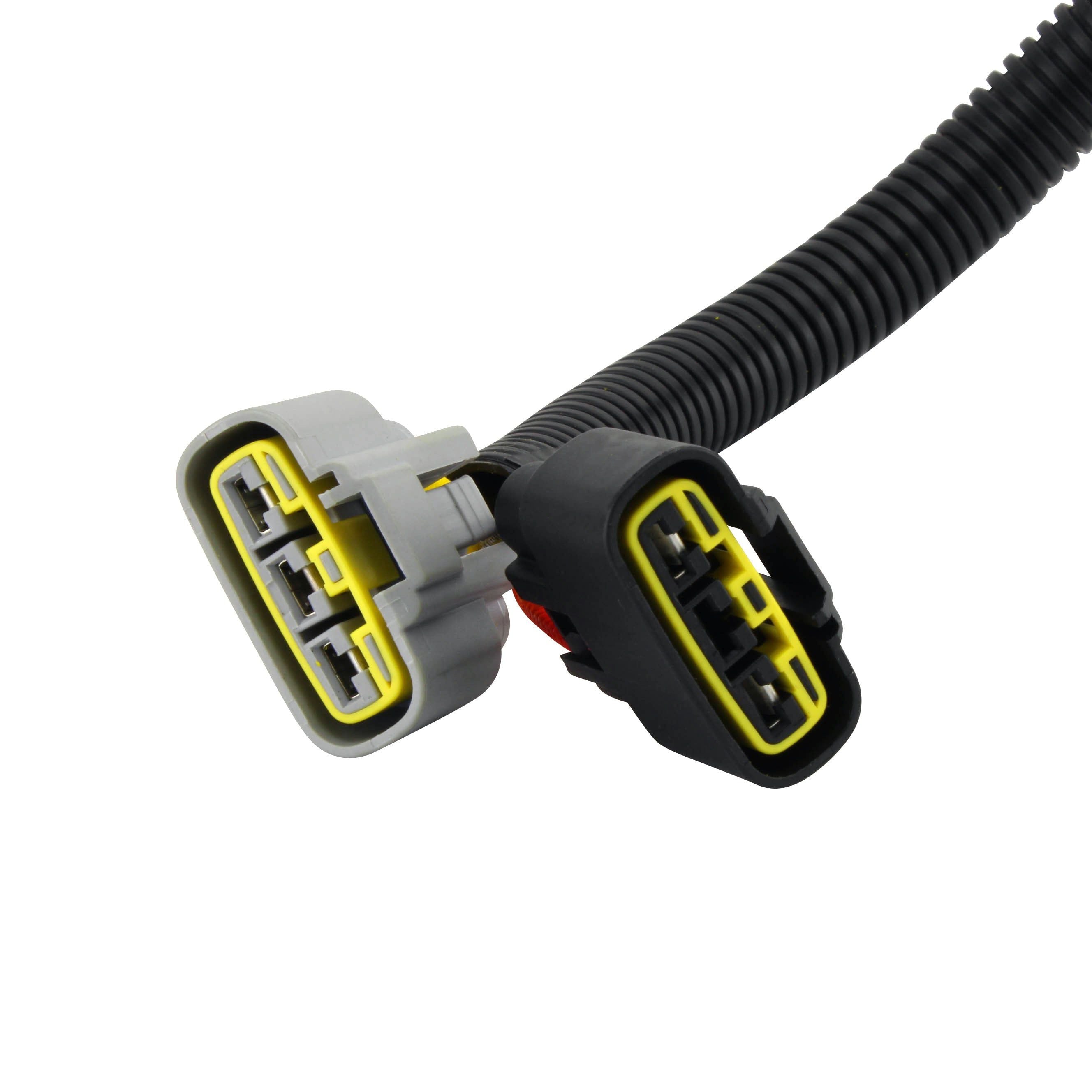

ABOUT THE BYPASS HARNESS
This bypass harness allows you to connect your new series regulator directly to your battery. Bypassing feet of wire and multiple connectors on your main wiring harness to provide a safer and more direct connection.
INSTALL LIKE A PRO

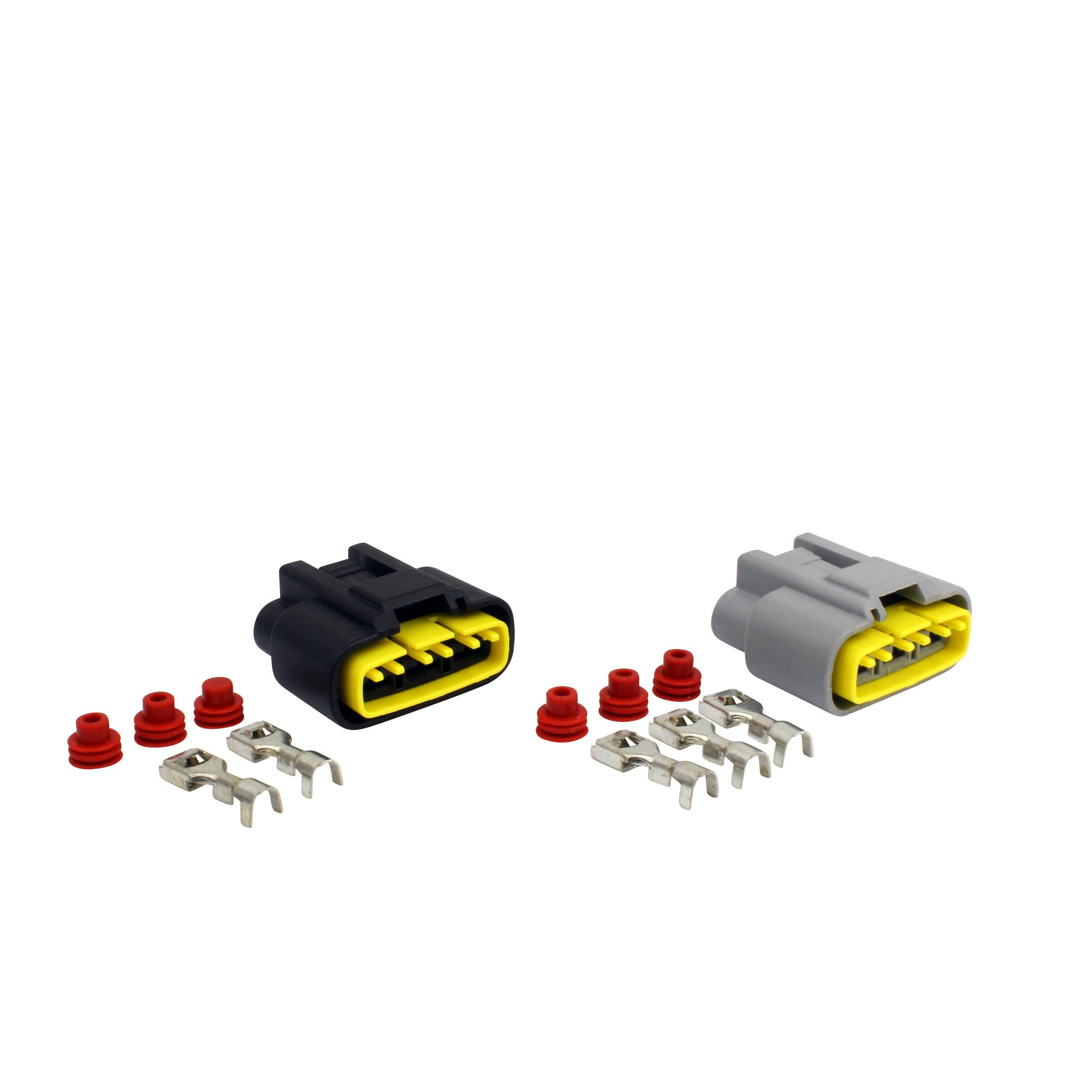

We include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
Before installing your new SERIES Voltage Regulator Rectifier :
Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors
Take a look at our installation instructions video !

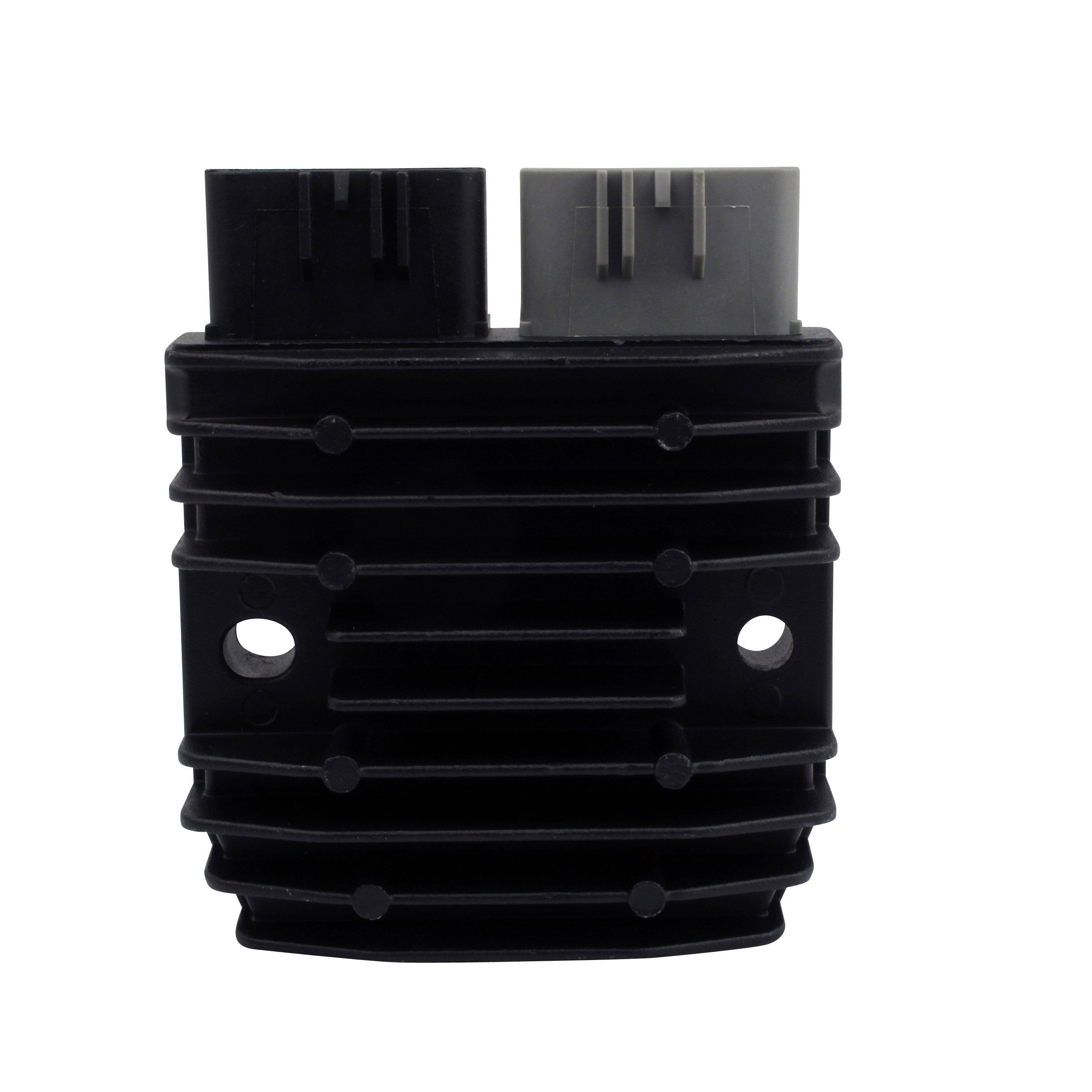

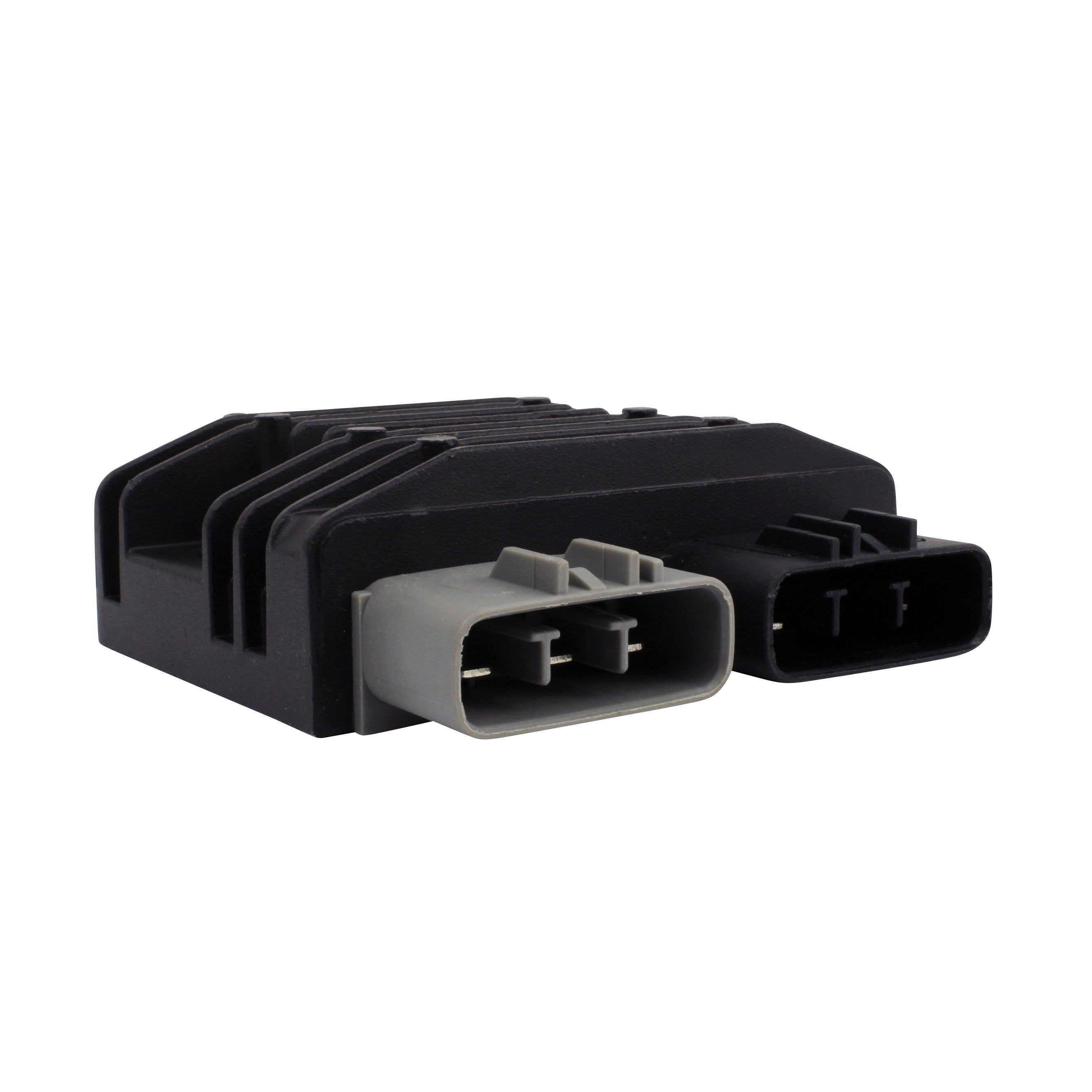

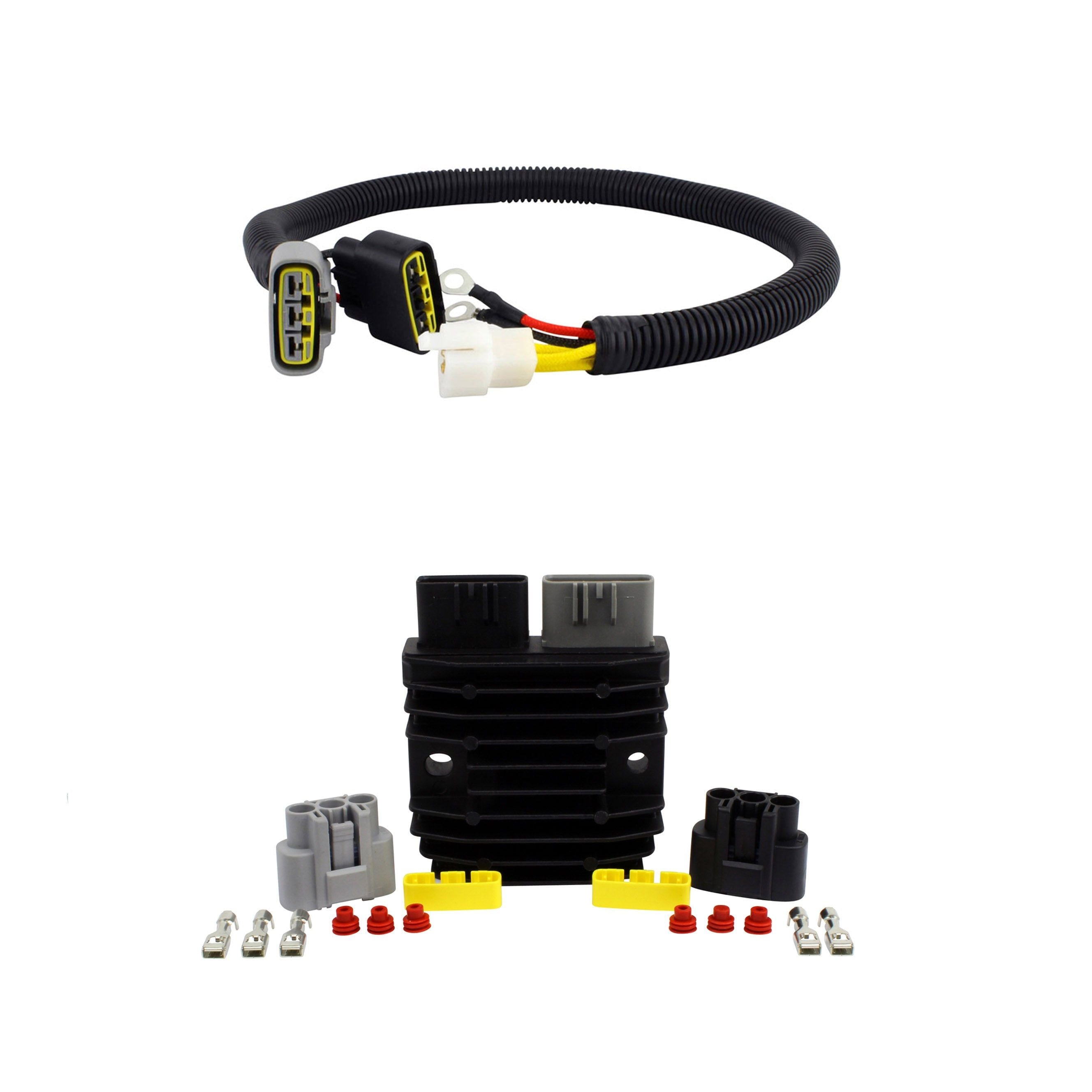

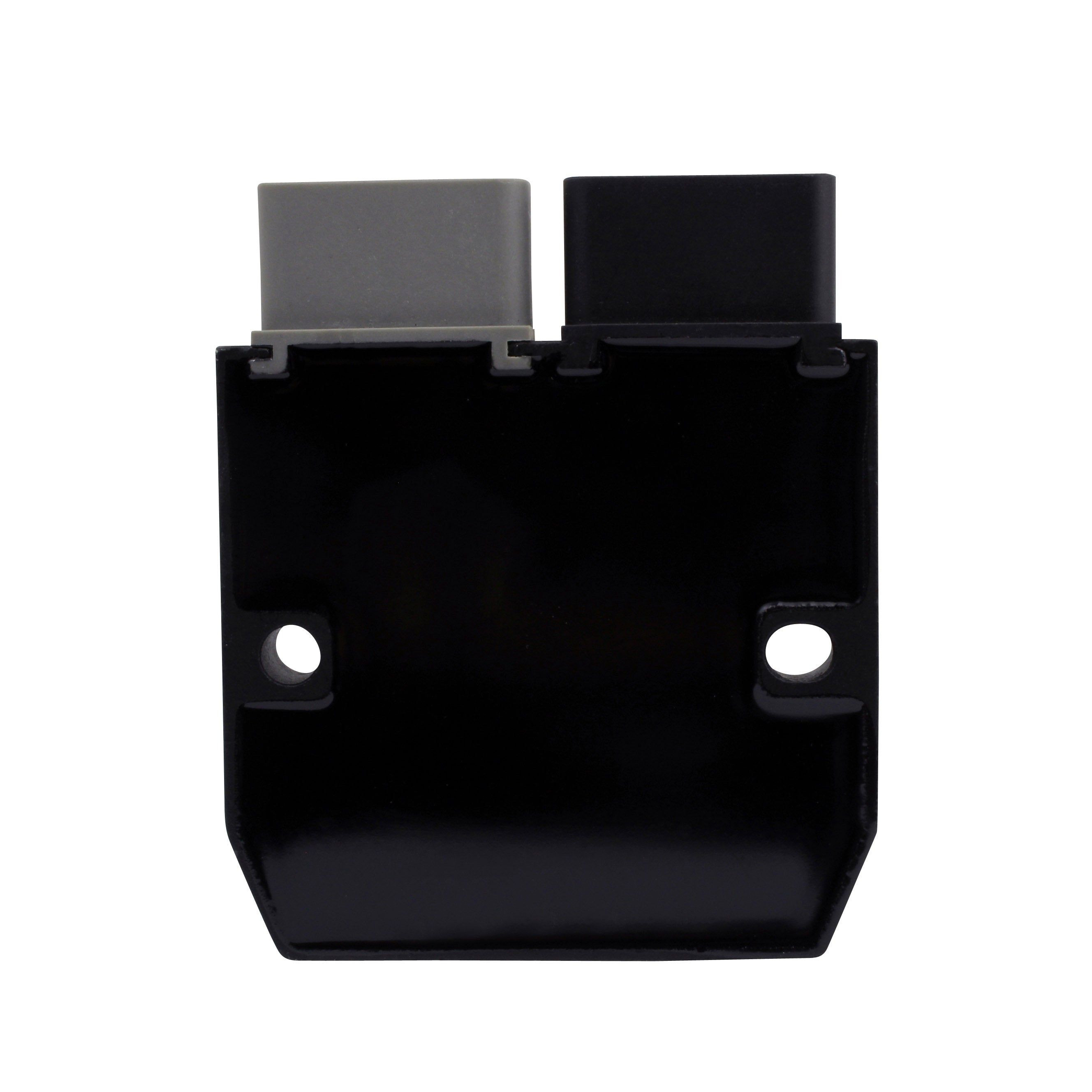

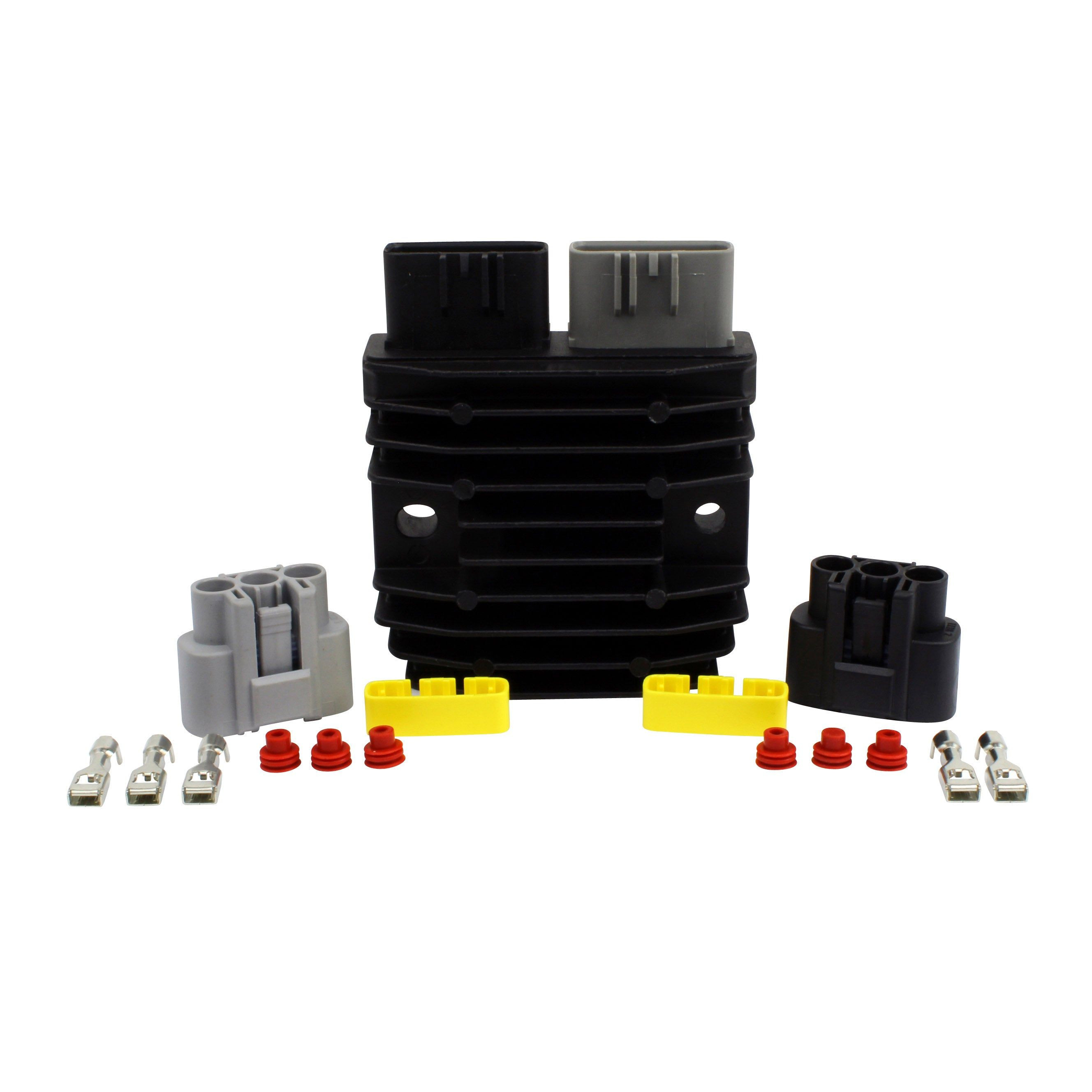

RMSTATOR Suzuki DR-Z400 KLX400 Series Voltage Regulator Rectifier Bypass Kit Bolt On Free Power Mod
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
