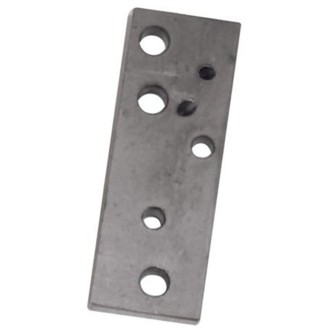

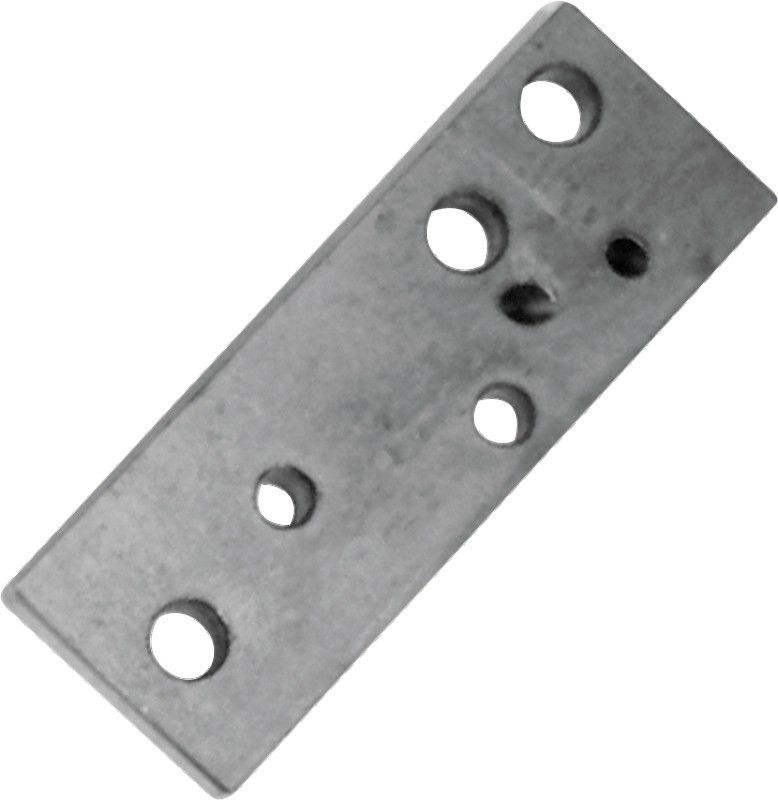

53-80 BT Oil Passage Drill Jig

Part Number 53-0013 (132875634)

Select vehicle for guaranteed fit

$70.95 FREE SHIPPING

Out of stock

FREE SHIPPING

Description

The S&S crankcase oil passage drilling jig is used to perform crankcase drilling modifications when installing an S&S oil pump assembly on early big twin crankcases. Made of hardened steel for durability, this fixture enables the builder to do four modifications.

Fitment

This part fits the following vehicles.

Harley-Davidson

1988-1991 FLSTC Heritage Softail Classic
1990-1991 FLSTF Fat Boy
1986-1990 FLST Heritage Softail
1987-1991 FXLR Low Rider Custom
1982-1991 FXRS Low Glide
1983-1991 FXRT Sport Glide
1983-1985 FXSB Low Rider - Belt
1977-1982 FXS Low Rider
1984-1991 FXST Softail Standard
1988-1991 FXSTS Springer Softail
1980-1986 FXWG Wide Glide

Features & benefits

Primary chain oil supply passage from the breather valve gear cavity to the back side of the oil pump body on late generator and early alternator crankcases
Pressure relief passage from behind the main oil pressure valve to the gear cavity on alternator crankcases
Crankshaft and main bearings supply passage on early alternator crankcases
Crankshaft and main bearings supply passage on generator crankcases
