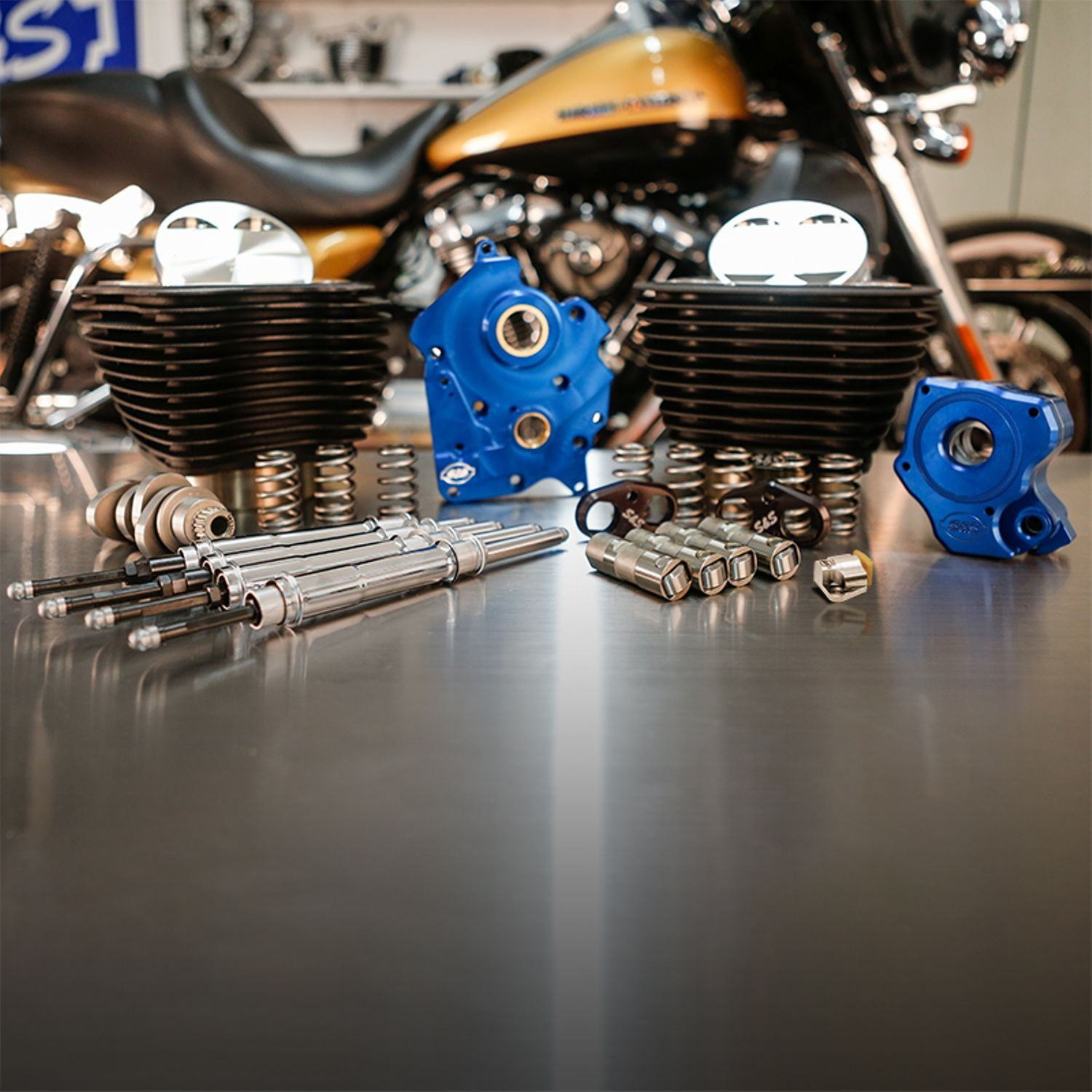

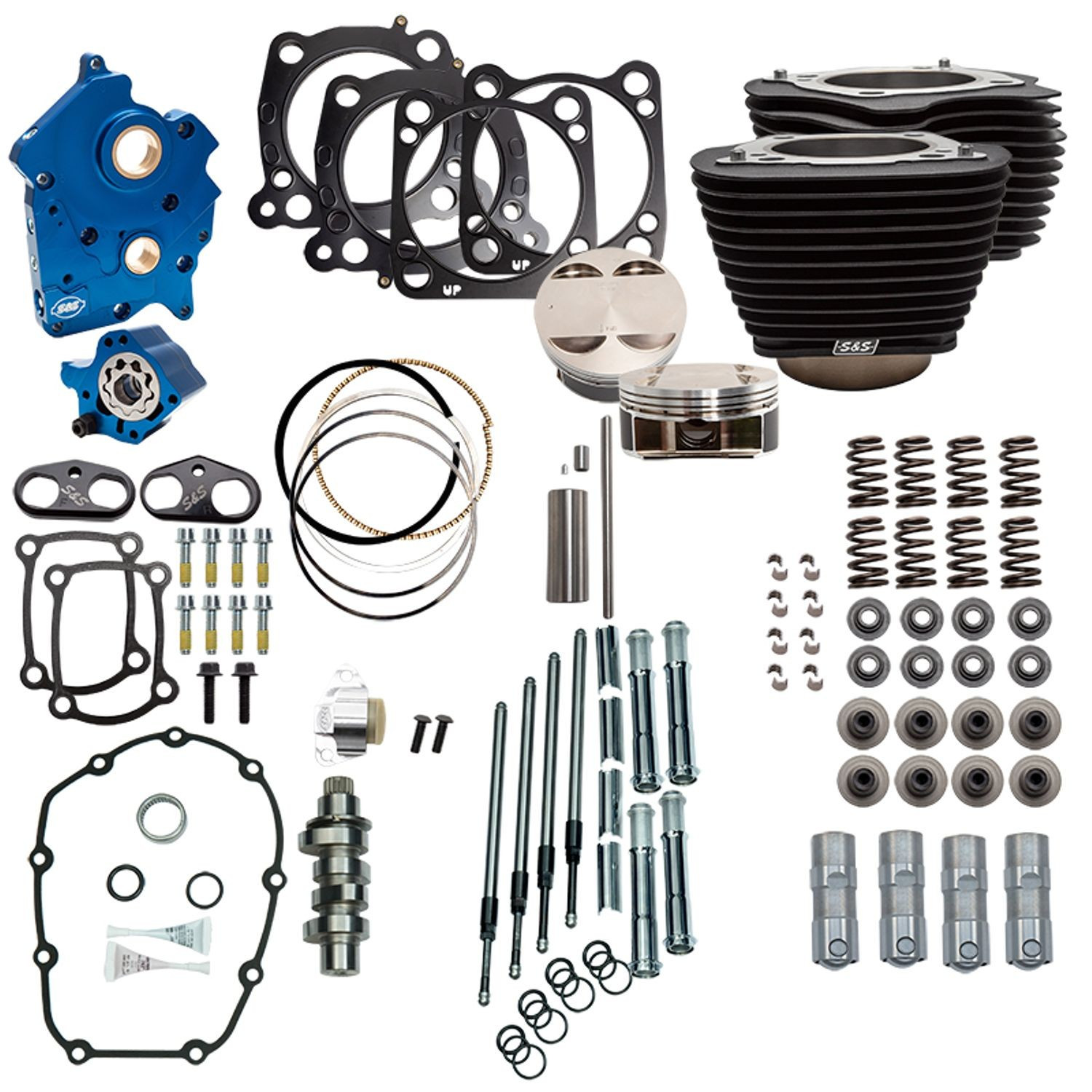

Name: S&S Cycle® 310-1105B - 128 CI Oil Cooled Power Package, Chain Drive
Brand: S&S Cycle
SKU: mpn5125602875
Price: 3265.95 USD
Availability: OutOfStock

Vehicle Fitment

Harley Davidson

Features

Big Bore Kit:
114" to 128" Big Bore Kit for Stock Stroke Flywheel
Wrinkle Black Finish
Non-Highlighted Fins
No case machining required
4.250" bore
Forged Pistons
11.1:1 Compression Ratio
Oil Pump/Cam Plate:
Precision Machined from Billet Aluminum
Blue Anodized Finish
Passage Plugs Removeable for servicing
Independant Scavenge Sections for Flywheel Cavity and Cam Chest
Debris Screens in both scavenge pickups
Magnet in Cam Chest to help to stop debris from entering oil pump
Increased Flow Capacity on both Feed and Scavenge side
Adjustable Pressure Relief Valve is adjustable with unit installed in engine
Pushrods:
Quickee Pushrods w/Chrome Pushrod Tubes
Tappets:
S&S Precision Tappets
Tappet Cuffs:
Hard Anodized Black Coating
Billet Aluminum Construction
Stronger than Stock Material eliminates Distortion
Improve tappet stability in high lift and high rpm situations
Cam:

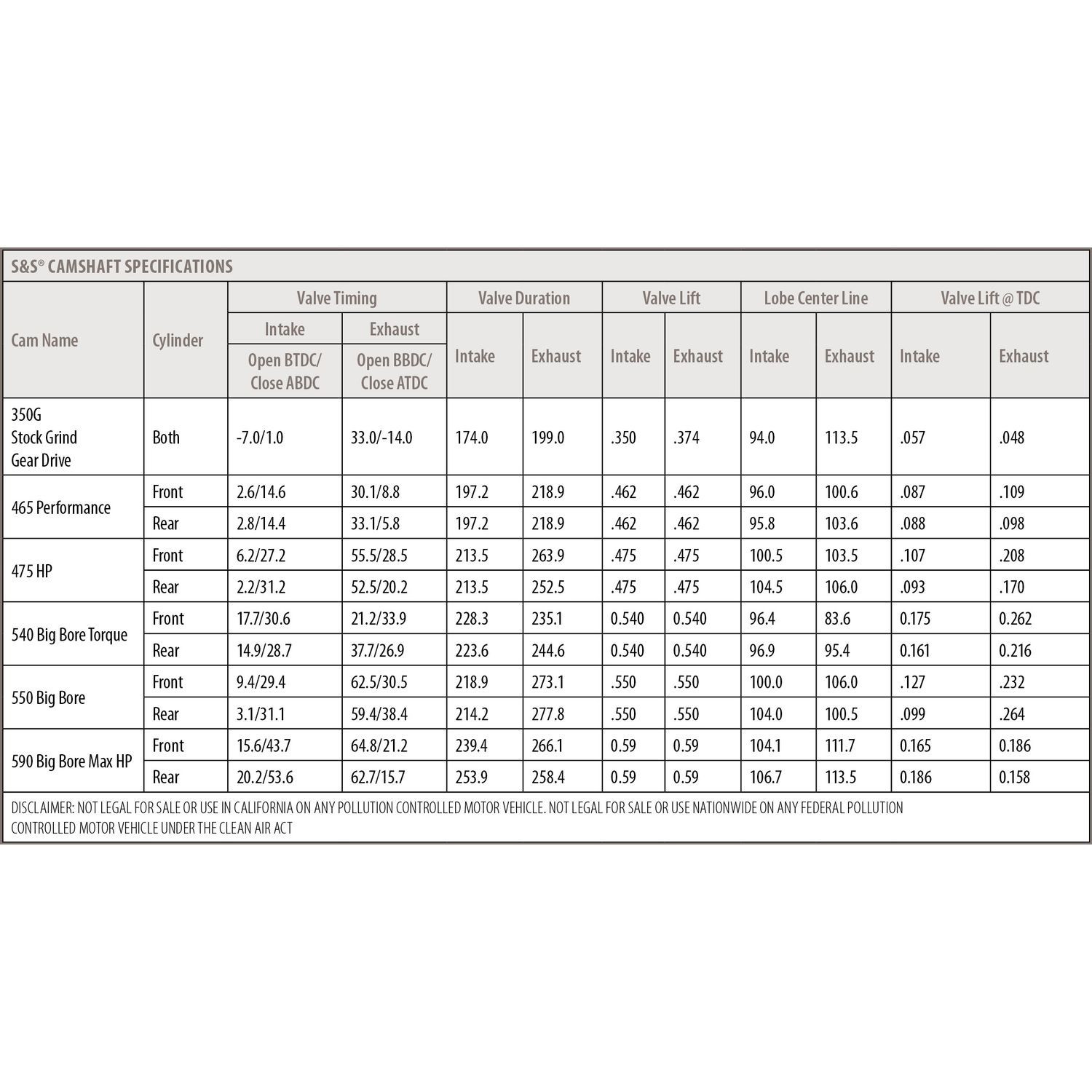

S&S 550 Cam- Designed for Big Bore Applications
Chain Drive
Valve Springs:
Work well with cams up to .605 lift
High Performance Conical Single Wire Spring
Includes all gaskets, bearings, and hardware required for installation
MADE IN USA

Product Details

128 CI Oil Cooled Power Package, Chain Drive (310-1105B) by S&S Cycle®. With Non-Highlighted Fins. Chrome Pushrod Tubes, Wrinkle Black. This top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship. Manufactured from industry-leading materials using up-to-date equipment, it ensures everlasting reliability and enduring value. This product is distinguished by total quality assurance, unsurpassed by anybody else.

Installation

S&S Cycle® - Installation Instructions

S&S Cycle® - Installation Instructions S&S Cycle Authorized Dealer

Brand:

S&S Cycle

Part Number:

310-1105B

Alternate MPN:

3101105B

Warranty

Limited Warranty for EXHAUST SYSTEMS AND COMPONENTS

S&S Cycle, Inc. (the “Company”) warrants to the original purchaser that each new product manufactured and assembled by the Company will be free, under normal use and maintenance, from significant manufacturing defects in materials and workmanship for one (1) year, subject to the following exceptions, exclusions, obligations, and limitations. All warranty periods shall begin from the date of purchase by the original retail customer or date of installation, whichever comes first.

Limited Warranty for COMPLETE FACTORY-ASSEMBLED ENGINES

S&S Cycle, Inc. (the “Company”) warrants to the original purchaser that each new product manufactured and assembled by the Company will be free, under normal use and maintenance, from significant manufacturing defects in materials and workmanship for two (2) years (KN and T143 Engines one (1) year limited warranty), subject to the following exceptions, exclusions, obligations, and limitations. All warranty periods shall begin from the date of purchase by the original retail customer or one year from date of manufacture, whichever comes first.

Disclaimer/Limitation of Liability

EXCEPT AS SPECIFICALLY SET FORTH ABOVE, NO EXPRESS WARRANTY IS GIVEN BY THE COMPANY WITH RESPECT TO ANY ENGINES, PARTS, OR COMPONENTS. ANY WARRANTY IMPLIED BY LAW, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS EXPRESSLY LIMITED TO THE DURATION OF THE LIMITED WARRANTY SET FORTH ABOVE. THE COMPANY MAKES NO OTHER EXPRESS WARRANTY. THE COMPANY SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE.

Some states and countries do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you, and you may have other rights which vary from state to state.

Limited Warranty for STANDARD PARTS

S&S® Cycle, Incorporated (the “Company”) warrants these parts to be free from defects in material and workmanship. If the parts become defective during the warranty coverage period, the Company will, at its option, repair or replace any, or all, defective parts. Repair or replacement of defective parts is the sole and exclusive remedy. The warranty coverage remains in force for a period of twelve (12) months from the date that the original Consumer Purchaser buys the parts.

Electrical and electronic components are covered by a warranty duration of six (6) months. However, warranty coverage will automatically terminate if the original Purchaser sells or otherwise transfers all or any portion of the purchased parts.
