Description

Lift supports are pressurized cylinders that are used to support hoods, hatches and rear window glass in automotive applications. Lift supports are also used in many non-automotive applications. Each Strongarm® lift support is custom engineered, and manufactured beyond industry standards to provide smoother operating, and longer lasting performance. Lift supports should be replaced in pairs to ensure safe, reliable support of your hood, hatch, or liftgate.

Fitment

This part fits the following vehicles.

2005-2012 Nissan Pathfinder

Features & benefits

Exact fit original equipment design guarantees correct fit and function
Engineered and built to meet or exceed original equipment quality standards
Individually tested for performance and reliability
Hardened, nitride plated steel shaft provides optimal durability
Rubber O-ring piston seal prevents leakage for a controlled lift and consistent performance
Heavy gauge steel body is electrostatically painted and heat cured to OE specs
Self-Cleaning Piston Assembly provides smooth operation and more reliable performance
Upper bushing is manufactured with quality precision providing exact fit and promotes longer operating life
No special installation tools required

Specifications

AAP_UDA_119	Y
AAP_UDA_12	EA
AAP_UDA_120	Y
AAP_UDA_121	N
AAP_UDA_122	N
AAP_UDA_123	N
AAP_UDA_124	N
AAP_UDA_125	N
AAP_UDA_126	N
AAP_UDA_127	N
AAP_UDA_128	N
AAP_UDA_129	N
AAP_UDA_130	N
AAP_UDA_131	N
AAP_UDA_132	N
AAP_UDA_133	N
AAP_UDA_22	1
AAP_UDA_31	565
AAP_UDA_32	Str
AAP_UDA_4	70
Compressed Length	13.622
Country Of Origin	US
Cylinder Outside Diameter	22
End 1 Material	Nylon
End 1 Size	10
End 1 Type	Ball Socket
End 2 Material	Nylon
End 2 Size	10
End 2 Type	Ball Socket
Extended Length	19.303
Inner Shaft Diameter	10
Internal Rebound Spring	No
Maximum Force	185
Outer Cylinder Color	Black
Outer Cylinder Material	Steel
Street Legal	Yes
Stroke Length	5.681
Universal Or Specific Fit	Specific

Warranty

12 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).

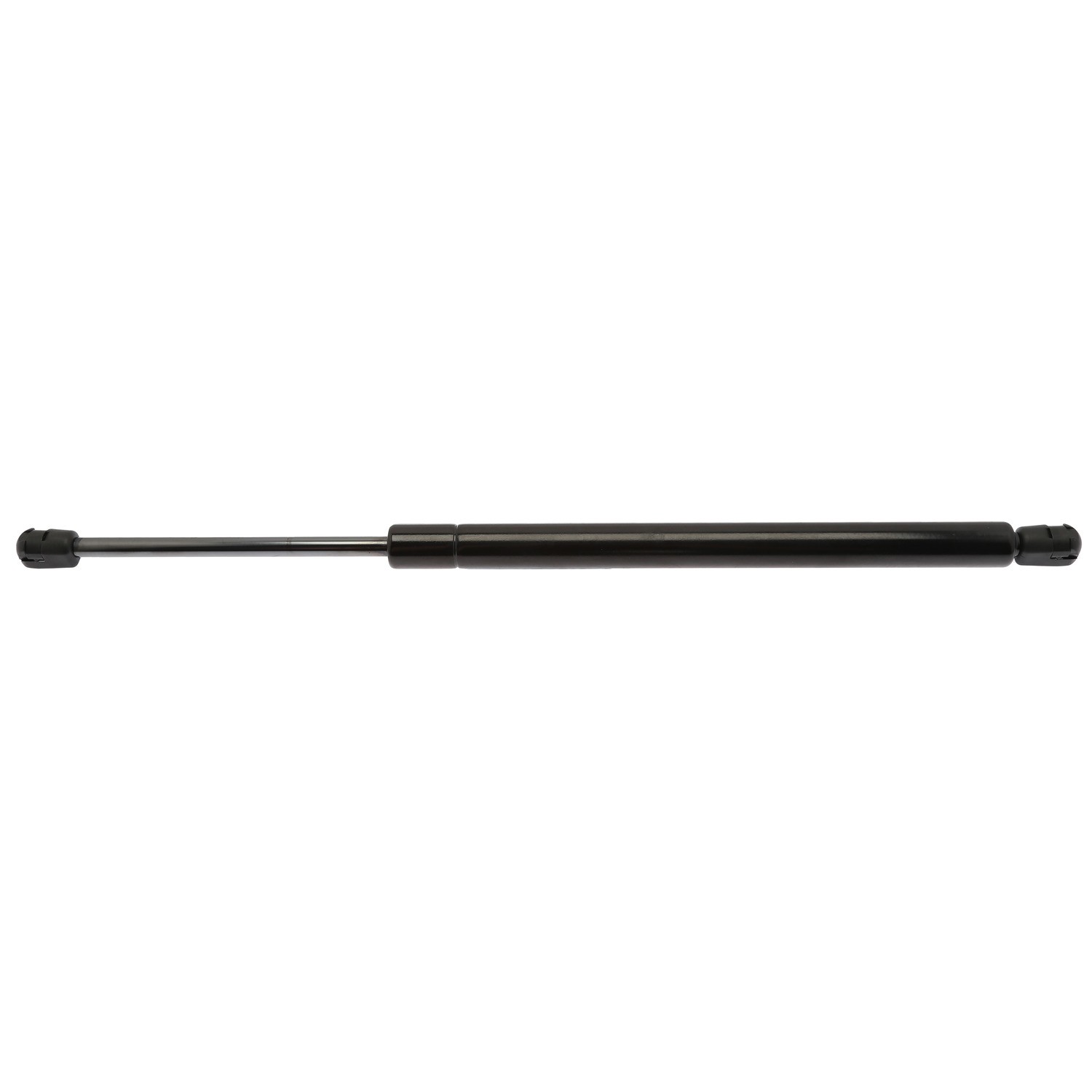

Liftgate Lift Support
