Squadron SAE/Pro Fog Pocket Kit - '21-23 F-150 w/ DRL (SAE Fog; Baja Amber; Upfitter Wiring)

Description

The Baja Designs Squadron SAE/Squadron Pro fog pocket light kit for the 2021-2023 Ford F-150 trucks w/daytime running lights is a premium, high-performance upgrade engineered for both on-road and off-road use.

This all-inclusive LED fog light kit includes one pair of Squadron SAE road-legal fog lights offering 2,420 raw lumens each and one pair of Squadron Pro lights in a versatile Driving/Combo lens pattern producing 4,095 raw lumens each, delivering powerful illumination exactly where you need it.

For convenience and full control, one pair of lights connects to your OEM F-150 fog light switch, while both pairs can be activated via the included toggle switch harness or your factory upfitter switch (depending on what kit you choose).

The next-generation Squadron SAE is engineered with advanced aspheric projector optics and cutting-edge LED technology, producing a 56 percent increase in luminous output over previous SAE models.

These lights are SAE J583 compliant, providing a sharp, road-safe beam pattern ideal for fog, dust, rain, and low-visibility conditions. Built to illuminate Zone 1 with a controlled, glare-free cutoff, the Squadron SAE delivers unmatched clarity and safety.

For trail illumination, the Squadron Pros offers lighting into zones 1-4, giving your clarity while staying safe when off the beaten path. Designed specifically for Ford F-150 trucks with Daytime Running Lights (DRL), this kit is backed by Baja Designs' limited lifetime warranty and a 30-day satisfaction guarantee, giving you total confidence on and off the road.

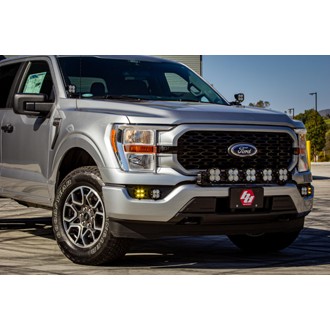

Note: This kit comes with everything you need to install and is designed to be used on the F-150 with Daytime Running Lights (DRL).
USPTO Reg No. 5,766,659

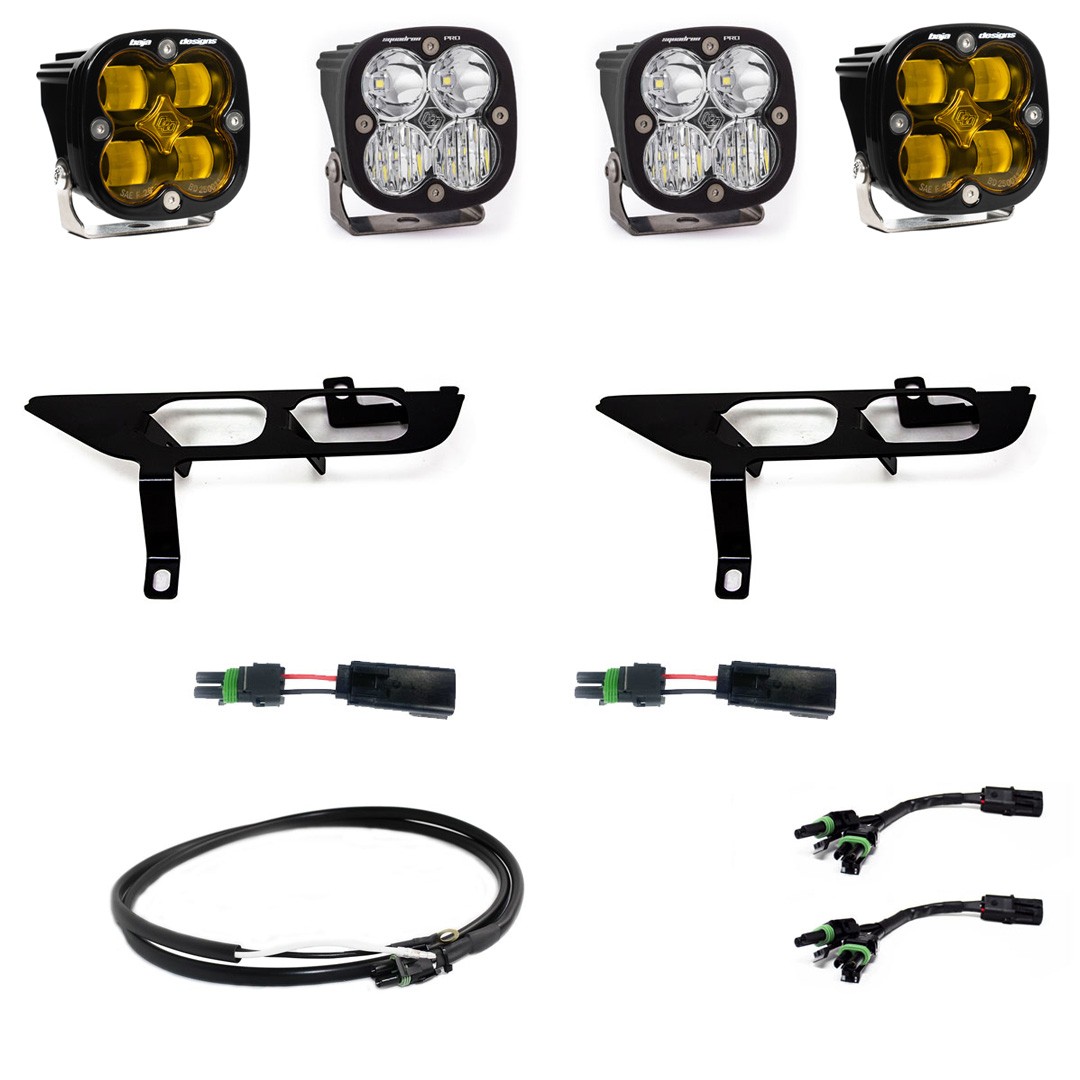

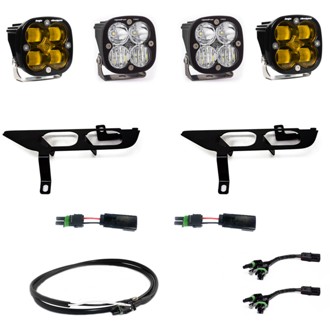

Toggle Kit Includes:

• (2x) Squadron SAE -Clear or Baja Amber
• (2x) Squadron Pro -Clear Driving Combo
• (2x) Mounting Brackets
• (2x) Adaptor Harness (600043)
• (2x) Splitter Harness (613607)
• (1x) Toggle Harness (640139)
• (1x) 55 inch Splitter Harness
• (2x) Anti-Backfeed Harness (600017)

Upfitter Kit Includes:

• (2x) Squadron SAE -Clear or Baja Amber
• (2x) Squadron Pro -Clear Driving Combo
• (2x) Mounting Brackets
• (2x) Adaptor Harness (600043)
• (2x) Splitter Harness (613607)
• (1x) Upfitter Harness (640093)
• (1x) 55 inch Splitter Harness
• (2x) Anti-Backfeed Harness (600017)

Squadron SAE Specifications (Per Light):

• Lumens: 2,420
• Wattage/Amps: 29W/2.1A

Squadron Pro Specifications (Per Light):

• Lumens: 4,095
• Wattage/Amps: 41.4W / 3A

The Baja Designs Advantage:

• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color

Note: uService is Not a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.

Fitment

This part fits the following vehicles.

Features & benefits

• This all-inclusive LED fog light kit includes one pair of Squadron® SAE road-legal fog lights offering 2,420 raw lumens each and one pair of Squadron® Pro lights in a versatile Driving/Combo lens pattern producing 4,095 raw lumens each, delivering powerful illumination exactly where you need it
• For convenience and full control, one pair of lights connects to your OEM F-150 fog light switch, while both pairs can be activated via the included toggle switch harness or your factory upfitter switch (depending on what kit you choose)
• The next-generation Squadron® SAE is engineered with advanced aspheric projector optics and cutting-edge LED technology, producing a 56% increase in luminous output over previous SAE models
• Four Light Pods, Mounts, Upfitter Wiring Harness/Splitter
