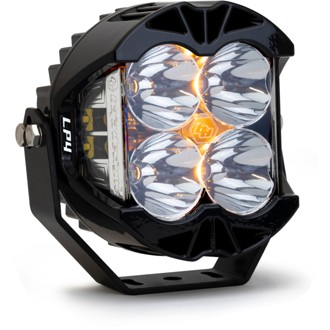

The LP4 is the smallest variant in the LP lineup and uses the same design architecture of its larger siblings. The LP4 features a total of 8,857 raw lumens, pumping out 6,885 forward projecting raw lumens and 1,972 raw lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT) providing 200-degree spread of light that illuminates zones 1, 2 and 3 along with reaching into zone 4 spot.
To keep your light performing at its highest level, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology that allows air to travel through the front of the housing and over the rear heat sinks - drastically improving cooling capacity and performance.
The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.
Backed by our 30 Day Satisfaction Gaurantee and Lifetime Limited Warranty for the ultimate in purchase protection. Note: This light does not come with a wiring harness.
The applicable wiring harness for this light is 640175.
Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for Exhibition use only. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles.
The owner/driver is responsible for observing all highway equipment laws and safety regulations.
• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Safely Driving LEDs at 100 percent
• 5000K Daylight -Less Driver Fatigue, Natural Color
| Amperage Rating (A) | 5.500 specifications |
|---|---|
| Average Rated Life (hr.) | 49,930 specifications |
| Backlight Amperage Rating (A) | 0.350 specifications |
| Backlight Wattage (W) | 4.830 specifications |
| Beam Pattern | Spot specifications |
| Bezel Material | Powder Coat Cast Aluminum specifications |
| Brackets Included | Yes |
| Brightness (Lumens) | 8857 specifications |
| Color | Clear |
| Country Of Origin | USA |
| Depth (in.) | 3.200 dimensions |
| Description | Spot; Clear specifications |
| Finish | Powdercoat |
| Height (in.) | 5.100 dimensions |
| Housing Color | Black specifications |
| Housing Material | Powder Coat Cast Aluminum specifications |
| Housing Type | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 5.100 dimensions |
| Lens Color | Clear specifications |
| Lens Material | Hardcoated Polycarbonate specifications |
| Life Span Expectancy | 49,930 Hours |
| Light Quantity | 1 specifications |
| Lighting Modes | Beam/Day-Time Running Backlighting specifications |
| Lighting Quantity | 4 specifications |
| Lighting Technology | LED specifications |
| Lighting Type | Forward Projecting specifications |
| Material | Aircraft Grade Aluminum |
| Mounting Hardware Included | Yes specifications |
| Mounting Hardware Material | Stainless Steel specifications |
| Overvoltage Protection | Built-In specifications |
| Product Type | LP4 Pro LED Light Pod specifications |
| Secondary Amperage Rating (A) | 1.000 specifications |
| Secondary Brightness (Lumens) | 1972 specifications |
| Secondary Light Quantity | 4 LEDs specifications |
| Secondary Lighting Technology | LED specifications |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) specifications |
| Secondary Wattage (W) | 15 specifications |
| Sold As | Each |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) standards & complian |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian |
| Terminal Connector | DT06-4S Deutsch specifications |
| Terminal Type | Mating Connector specifications |
| Universal | Yes |
| Universal Or Specific | Universal specifications |
| UPC | 819314029375 |
| Waterproof Rating | IP69K (Waterproof up to 9ft Pressure Washable) |
| Wattage (W) | 75.900 specifications |
| Weight (lbs.) | 2.800 dimensions |
| Wiring Harness Included | No specifications |
