Description

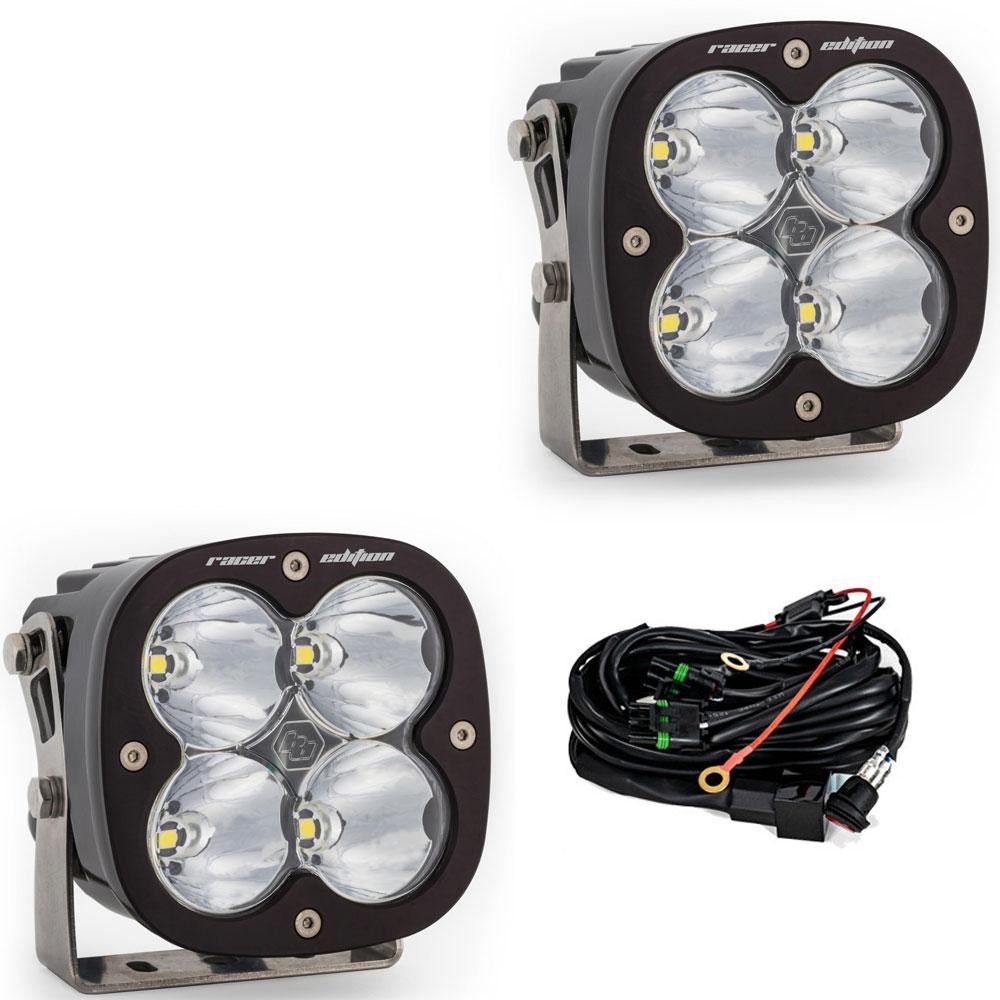

The Baja Designs XL Racer now features next-gen LEDs, delivering 2,800 lumens per light with an 85 percent increase in range. It throws light 40 percent farther than the XL Pro, using high-intensity LEDs housed in durable anodized and powder-coated aluminum.
With a lifespan of nearly 50,000 hours, it enhances your nighttime off-roading. Equipped with High-Speed Spot reflectors for a longer beam pattern and a 20 percent dimming option, it's perfect for reaching lighting zone 5.
Backed by a 30-Day Satisfaction Guarantee and Limited Lifetime Warranty. For hi-lo functionality, use the 640119 harness.
ELS Scores: Effective Lighting Score (ELS)
XL Racer Spot (Clear): ELS 58 degree / 2.4/ 674'/ 1825
Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Safely Driving LEDs at 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color
Features & benefits
- It throws light 40% farther than the XL Pro, using high-intensity LEDs housed in durable anodized and powder-coated aluminum
- With a lifespan of nearly 50,000 hours, it enhances your nighttime off-roading
- Equipped with High-Speed Spot reflectors for a longer beam pattern and a 20% dimming option, it’s perfect for reaching lighting zone 5
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Two Light Pods, Wiring Harness
Specifications
| Amperage Rating (A) | 3.300 specifications |
|---|---|
| Average Rated Life (hr.) | 49,930 specifications |
| Beam Pattern | Racer Edition Spot specifications |
| Bezel Material | Powder Coated Cast Aluminum specifications |
| Bracket Material | Stainless Steel |
| Brackets Included | Yes |
| Brightness (Lumens) | 2800 specifications |
| Color | Black |
| Country Of Origin | USA |
| Depth (in.) | 3.650 dimensions |
| Description | Racer Edition Spot; Clear; Pair specifications |
| Height (in.) | 4.430 dimensions |
| Housing Color | Black specifications |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum specifications |
| Housing Type | Hard Anodized and Powder Coated Cast Aluminum |
| IK10 Compliant | IK10 Compliant (Mechanical Impact Testing) |
| Length (in.) | 4.430 dimensions |
| Lens Color | Clear specifications |
| Lens Material | Hardcoated Polycarbonate specifications |
| Life Span Expectancy | 49,930 Hours |
| Light Quantity | 2 specifications |
| Lighting Modes | High Beam/Dimming Feature (20%) specifications |
| Lighting Quantity | 4 specifications |
| Lighting Technology | High Intensity LED specifications |
| Lighting Type | Forward Projecting specifications |
| Mfg Label | LED Light Bar |
| Mounting Hardware Included | Yes specifications |
| Mounting Hardware Material | Stainless Steel specifications |
| Overvoltage Protection | Built-In specifications |
| Product Type | XL80 Racer Edition LED Light Pod Pair w/ Wiring Harness specifications |
| Series | XL Racer Edition |
| Size | XL |
| Sold As | Pair |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) standards & complian |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian |
| Universal | Yes |
| Universal Or Specific | Universal specifications |
| UPC | 819314022598 |
| Waterproof Rating | IP69K (Waterproof, Submersible to 9ft) |
| Wattage (W) | 45.540 specifications |
| Wattage/AMP | 40W / 3.33A |
| Weight (lbs.) | 2.450 dimensions |
| Wiring Harness Included | Yes specifications |
