Baja Designs

BAJ LP6 Lights

Part Number 270001 (132608271)

UPC: 819314028590

Color

$532.95

In stockShips by 2nd Nov

Description

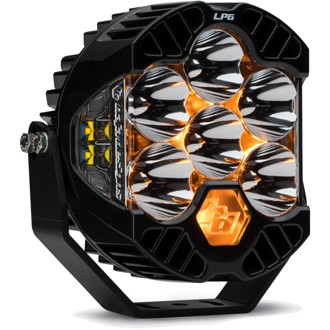

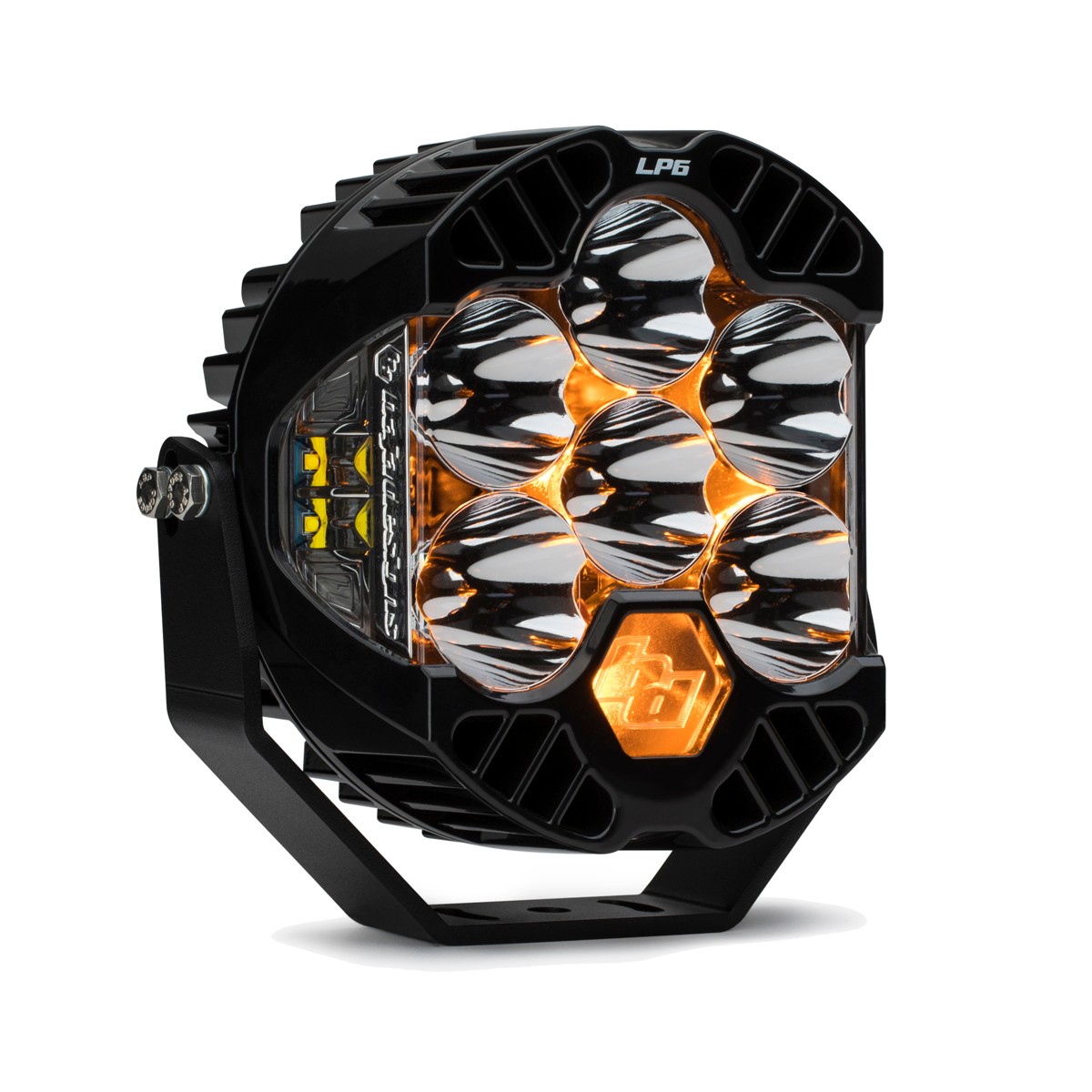

The LP6 Pro stands as a 6-inch powerhouse, delivering a total of 11,225 lumens and a 200-degree spread of usable LED light through our dedicated Integrated Peripheral Technology (IPT).

For optimal performance, the LP6 integrates Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. Featuring colored daytime running light, low power, and high-power modes, the LP6 effortlessly caters to all your lighting needs.

Available in various patterns, the LP6 Pro suits diverse preferences. The Driving/Combo pattern offers maximum trail coverage with a blend of driving (42 degrees) and spot (8 degrees) optics for both near-field and distance applications.

The Spot pattern, with its longer and narrower 8-degree beam focus, illuminates further down the trail or road, ideal for use with additional wide cornering or driving/combo auxiliary lights in Lighting Zones 4 & 5.

With additional red, blue, or green backlight options alongside the original amber, the LP6 Pro allows enthusiasts to customize their vehicle for shows, photo shoots, or anywhere attention is desired.

Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are intended for exhibition use only. Avoid usage on public roads to prevent confusion with law enforcement or emergency vehicles.

The owner/driver is responsible for adhering to all highway equipment laws and safety regulations.

• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Safely Driving LEDs at 100 percent
• 5000K Daylight -Less Driver Fatigue, Natural Color

Features & benefits

To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology
This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance
With an colored daytime running light, low power, and high-power mode, the LP6 easily fulfills all your lighting needs
One Light Pod

Specifications

Amperage Rating (A)	7.500 specifications
Average Rated Life (hr.)	49,930 specifications
Backlight Amperage Rating (A)	0.300 specifications
Backlight Wattage (W)	4.140 specifications
Beam Pattern	Spot specifications
Bezel Material	Powder Coat Cast Aluminum specifications
Brackets Included	Yes
Brightness (Lumens)	11225 specifications
Color	Black
Country Of Origin	USA
Depth (in.)	3.200 dimensions
Description	Spot; Clear specifications
Finish	Powdercoat
Height (in.)	6.500 dimensions
Housing Color	Black specifications
Housing Material	Powder Coat Cast Aluminum specifications
Housing Type	Hard Anodized Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Length (in.)	6.500 dimensions
Lens Color	Clear specifications
Lens Material	Hardcoated Polycarbonate specifications
Life Span Expectancy	49,930 Hours
Light Quantity	1 specifications
Lighting Modes	High Beam/Low Beam/Day-Time Running Backlighting specifications
Lighting Quantity	6 specifications
Lighting Technology	LED specifications
Lighting Type	Forward Projecting specifications
Mounting Hardware Included	Yes specifications
Mounting Hardware Material	Stainless Steel specifications
Overvoltage Protection	Built-In specifications
Product Type	LP6 Pro LED Light Pod specifications
Secondary Amperage Rating (A)	1.000 specifications
Secondary Brightness (Lumens)	1972 specifications
Secondary Light Quantity	4 LEDs specifications
Secondary Lighting Technology	LED specifications
Secondary Lighting Type	Integrated Peripheral Technology (IPT) specifications
Secondary Wattage (W)	15 specifications
Sold As	Each
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing) standards & complian
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian
Terminal Connector	DT06-4S Deutsch specifications
Terminal Type	Mating Connector specifications
Universal	Yes
Universal Or Specific	Universal specifications
UPC	819314028590
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Wattage (W)	103.500 specifications
Weight (lbs.)	4.200 dimensions
Wiring Harness Included	No specifications

Videos and guides

Installation Instructions PDF
