RTL-M Mini LED Rear Light Bar (6 Inch; No Plate Light)

Part Number 100602 (132608263)

UPC: 819314029337

$225.95 FREE SHIPPING

In stockShips by 2nd Nov

FREE SHIPPING

Description

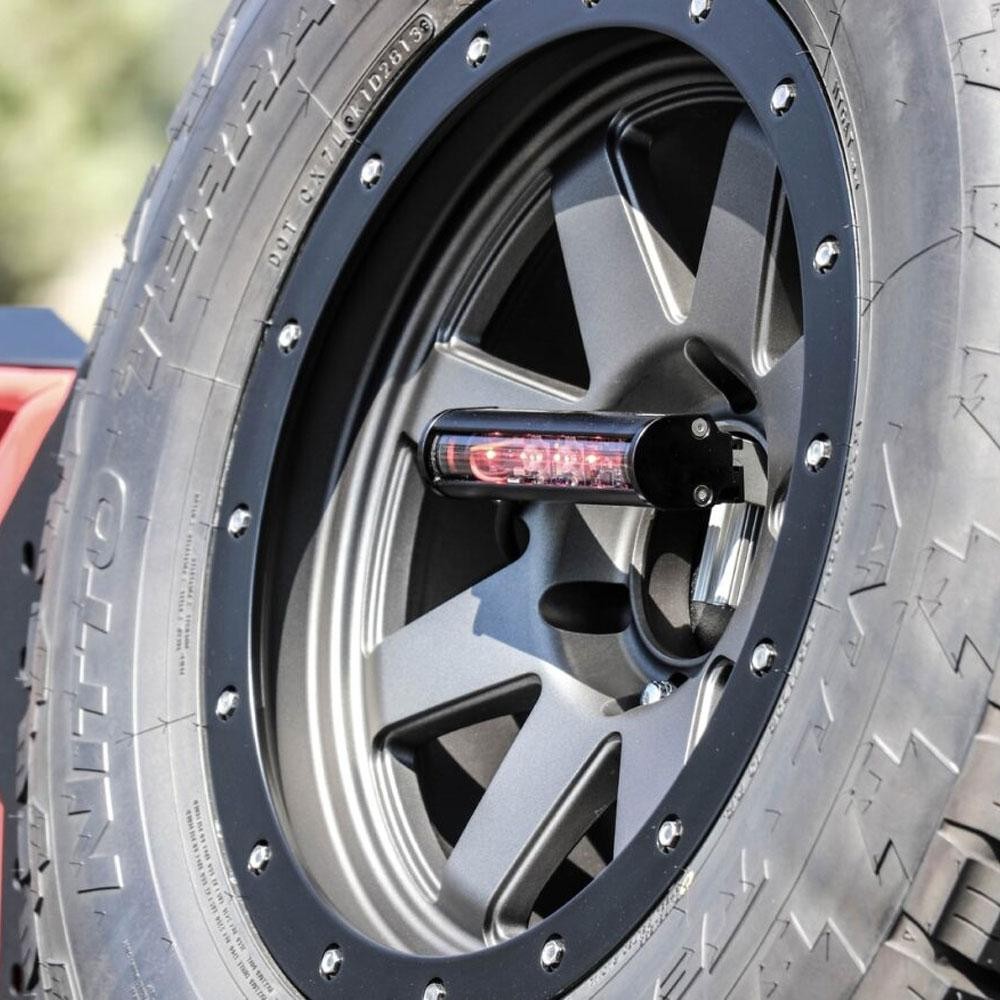

The RTL-M (Rear Tail Light -Mini) is a miniature version of Baja Designs' existing RTL. At a compact 6-inches, this light bar is exceptionally useful on vehicles where space is limited, such as: Jeeps, motorcycles, UTVs, and ATVs.

The RTL-M includes five red LEDs which function as the running and brake lights. The high visibility of these LEDs provides extra safety to any off-road enthusiast, from the casual weekend warrior, to the dedicated racer.

The bar also features a pair of central white LEDs which act as cargo and scene lighting. Perfect for grabbing gear out of the toolbox or lighting the camp area.

The RTL-M also features an optional license plate illuminator for those that would like to use the product with our Universal License Plate Mount or Jeep JK Spare Tire Mount.

Note: The RTL-M bar does not come with a wiring harness. The correct harness will be 640127 (Automotive RTL Harness) or 640605 (RTL-M License Plate Harness).

• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color

Features & benefits

Satisfaction Guarantee – 30-Day Money Back Guarantee
One Light Bar

Specifications

Average Rated Life (hr.)	49,930 specifications
Beam Pattern	Rear Tail Light specifications
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Brightness (Lumens)	312 specifications
Country Of Origin	USA
Depth (in.)	2.5 dimensions
Description	Does Not Include Plate Light specifications
Height (in.)	1.56 dimensions
Housing Color	Black specifications
Housing Type	Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Length (in.)	6.69 dimensions
Lens Color	Red specifications
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Light Quantity	1 specifications
Lighting Modes	Beam specifications
Lighting Quantity	5 specifications
Lighting Technology	LED specifications
Lighting Type	Rear Projecting specifications
Mfg Label	Tail light
Mounting Hardware Description	Mounting Hardware specifications
Mounting Hardware Included	Yes specifications
Mounting Hardware Material	Stainless Steel specifications
Overvoltage Protection	Built-In specifications
Patent No.	D802,187 standards & complian
Product Type	RTL-M 6 Inch LED Rear Tail Light specifications
Sold As	Each
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing) standards & complian
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian
Universal	Yes
Universal Or Specific	Universal specifications
UPC	819314029337
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Wattage (W)	5.5 (Brake); 8.5 (Carbo); 0.75 (Tail Light( specifications
Weight (lbs.)	1.1 dimensions
Wiring Harness Included	No specifications
