Baja Designs

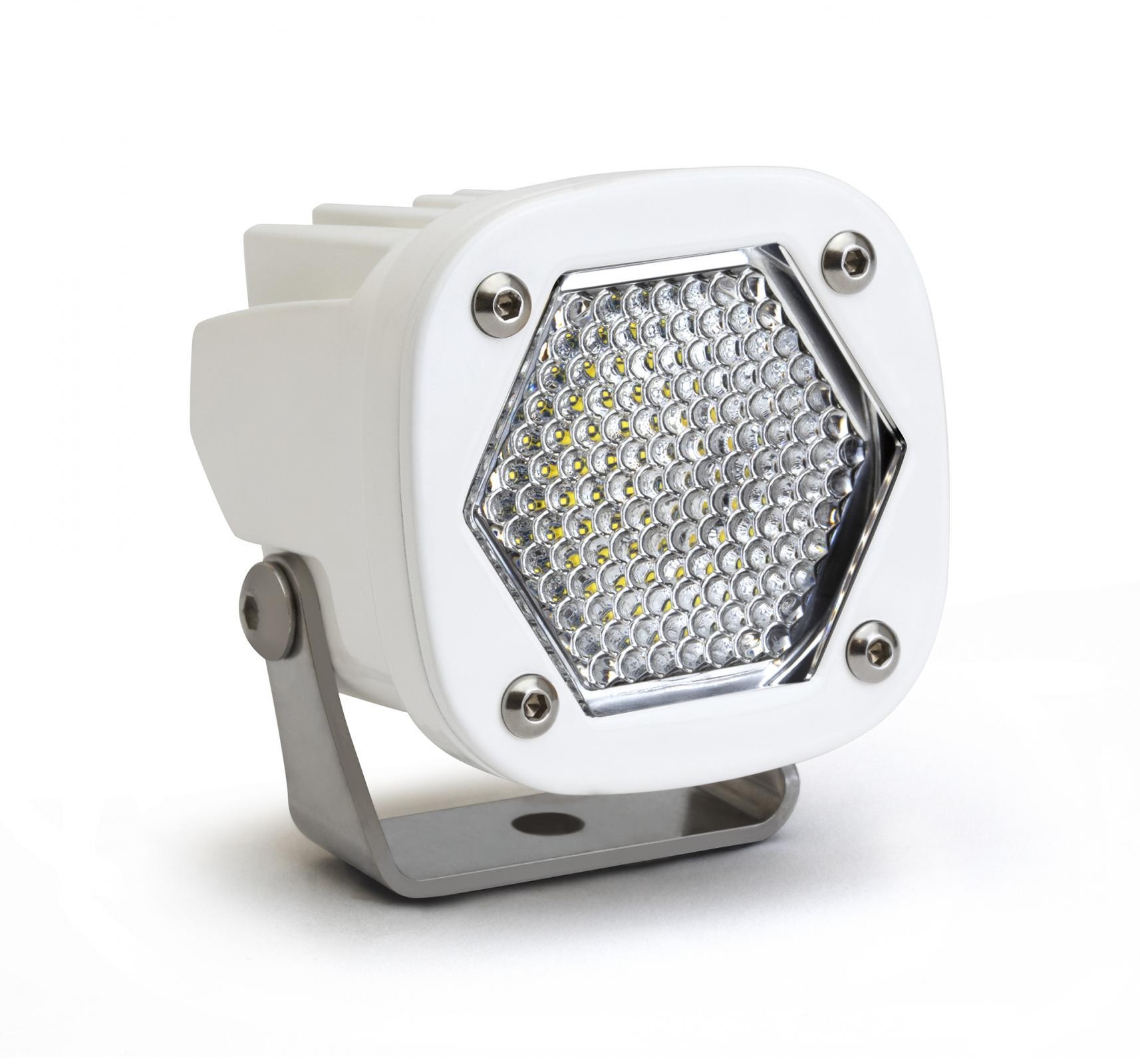

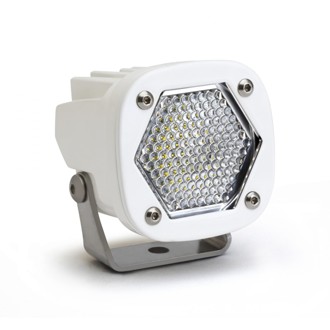

S1 White LED Light Pod (Work/Scene; Clear)

Part Number 380006WT (132671997)

UPC: 810031740734

Color

$146.95

Out of stock

Description

Designed from the ground up our new S1 fills the shoes of a large light in a small package! The S1 utilizes a highly specialized reflector and LED combination to put 2,320 raw lumens down range.

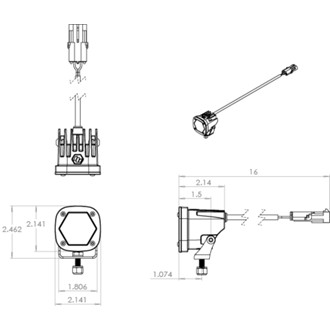

With the 2.1 inch length, width, and height, the S1 is highly versatile for any application that is in need of light. This version has a white-coated finish that is perfect for marine applications.

Whether you're looking for a light to drive off of, or something to light up a campsite the S1 will exceed your expectations! US Patent Number 11273751.

ELS Scores:
S1 Spot Clear: ELS 72‚Е/ 6.1/ 155'/ 1927

Note: Single lights do not come with wiring harness. Add our Squadron/S1/S2 2-pin Harness (640117) to your order if you need a harness.

• Satisfaction Guarantee, 30-Day Money Back Guarantee
• Limited Lifetime Warranty, Complete Purchase Protection
• uService, Replaceable Lenses And Optics
• ClearView, All The Light, Right Where You Need It
• MoistureBlock, Waterproof, Rain Proof, Submersible
• CopperDrive, Only LED Driven At 100 Percent
• 5000K Daylight, Less Driver Fatigue, Natural Color

Features & benefits

Satisfaction Guarantee – 30-Day Money Back Guarantee
With the 2
1 inch length, width, and height, the S1 is highly versatile for any application that is in need of light
This version has a white-coated finish that is perfect for marine applications
One Light Pod

Specifications

Amperage Rating (A)	1.420 specifications
Average Rated Life (hr.)	49,930 specifications
Beam Pattern	Work/Scene specifications
Bezel Material	Powder Coated Cast Aluminum specifications
Bracket Material	Stainless Steel
Brackets Included	Yes
Brightness (Lumens)	2320 specifications
Color	Clear
Country Of Origin	USA
Depth (in.)	2.100 dimensions
Description	White Housing; Work/Scene; Clear specifications
Finish	Powdercoat
Height (in.)	2.100 dimensions
Housing Color	White specifications
Housing Material	Hard Anodized and Powder Coated Cast Aluminum specifications
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Length (in.)	2.100 dimensions
Lens Color	Clear specifications
Lens Material	Hardcoated Polycarbonate specifications
Life Span Expectancy	49,930 Hours
Light Quantity	1 specifications
Lighting Modes	Beam specifications
Lighting Quantity	1 specifications
Lighting Technology	LED specifications
Lighting Type	Forward Projecting specifications
Material	Aircraft Grade Aluminum
Mounting Hardware Included	Yes specifications
Mounting Hardware Material	Stainless Steel specifications
Overvoltage Protection	Built-In specifications
Product Type	S1 LED Light Pod specifications
Sold As	Each
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing) standards & complian
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian
Universal	Yes
UPC	810031740734
Voltage	9-28 specifications
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Wattage (W)	19.596 specifications
Weight (lbs.)	0.400 dimensions
Wiring Harness Included	No specifications
