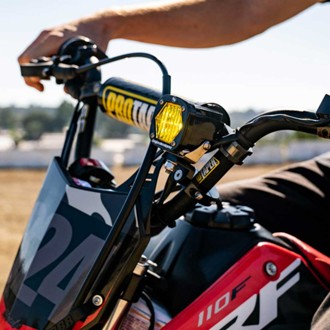

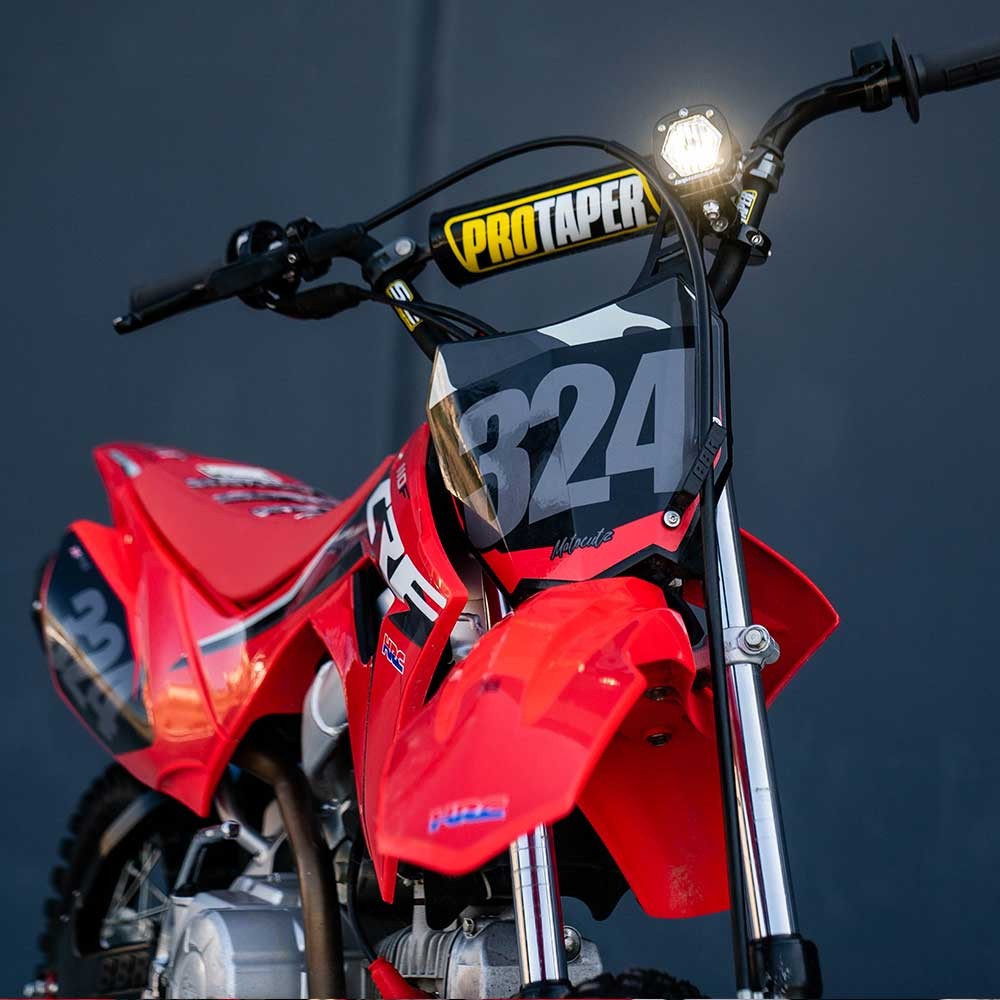

After a long day of riding, the best form of release around the fire pit is a friendly challenge on the pit bikes. Be the envy of your friends, and have a competitive edge by outfitting your little steed with an S1 Pit Bike Moto Kit!

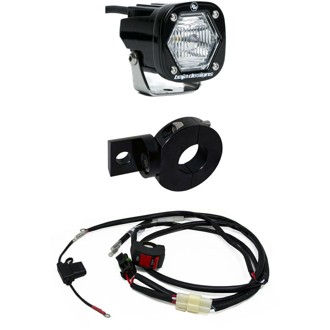

This kit is designed to work on most 7/8 diameter bars, and includes a wiring harness designed to run off the battery. US Patent Number 11273751.
| Amperage Rating (A) | 1.420 specifications |
|---|---|
| Average Rated Life (hr.) | 49,930 specifications |
| Barcode | 00810031744268 |
| Beam Pattern | Wide Cornering specifications |
| Bezel Material | Billet Machined Aluminum specifications |
| Bracket Material | Stainless Steel |
| Brackets Included | Yes |
| Brightness (Lumens) | 2320 specifications |
| Color | Clear |
| Country Of Origin | USA |
| Depth (in.) | 2.100 dimensions |
| Description | Wide Cornering; Clear; 7/8" Handlebar Mount specifications |
| Dimensions | 8.1" x 8" x 4" |
| Height (in.) | 2.100 dimensions |
| Housing Color | Black specifications |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum specifications |
| Housing Type | Hard Anodized and Powder Coated Cast Aluminum |
| IK10 Compliant | IK10 Compliant (Mechanical Impact Testing) |
| Length (in.) | 2.100 dimensions |
| Lens Color | Clear specifications |
| Lens Material | Hardcoated Polycarbonate specifications |
| Life Span Expectancy | 49,930 Hours |
| Light Quantity | 1 specifications |
| Lighting Modes | Beam specifications |
| Lighting Quantity | 1 specifications |
| Lighting Technology | LED specifications |
| Lighting Type | Forward Projecting specifications |
| Mounting Hardware Description | Mounting Brackets specifications |
| Mounting Hardware Included | Yes specifications |
| Mounting Hardware Material | Stainless Steel specifications |
| Overvoltage Protection | Built-In specifications |
| Product Type | Moto Electric Start Pit Bike S1 Auxiliary Light Kit specifications |
| Series | S1 |
| Sold As | Kit |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) standards & complian |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian |
| UPC | 810031744268 |
| Voltage | 9-28 specifications |
| Waterproof Rating | IP69K (Waterproof up to 9ft Pressure Washable) |
| Wattage (W) | 19.596 specifications |
| Weight | 3 lbs |
| Weight (lbs.) | 0.400 dimensions |
| Wiring Harness Included | Yes specifications |
Limited Lifetime
