Baja Designs

Moto Electric Start Pit Bike S1 Auxiliary Light Kit (Wide Cornering; Baja Amber)

Part Number 387003 (132989767)

UPC: 810031744275

Package contents: 1 Each per Box

Color

$197.95

Out of stock

Description

After a long day of riding, the best form of release around the fire pit is a friendly challenge on the pit bikes. Be the envy of your friends, and have a competitive edge by outfitting your little steed with an S1 Pit Bike Moto Kit!

This kit is designed to work on most 7/8 diameter bars, and includes a wiring harness designed to run off the battery. US Patent Number 11273751.

• Satisfaction Guarantee, 30-Day Money Back Guarantee
• Limited Lifetime Warranty, Complete Purchase Protection
• uService, Replaceable Lenses And Optics
• ClearView, All The Light, Right Where You Need It
• MoistureBlock, Waterproof, Rain Proof, Submersible
• CopperDrive, Only LED Driven At 100 Percent
• 5000K Daylight, Less Driver Fatigue, Natural Color

•
• Note: Will work for most electric start bikes that have at least 20W+ of power available.

Features & benefits

Satisfaction Guarantee – 30-Day Money Back Guarantee
Note: Will work for most electric start bikes that have at least 20W+ of power available.

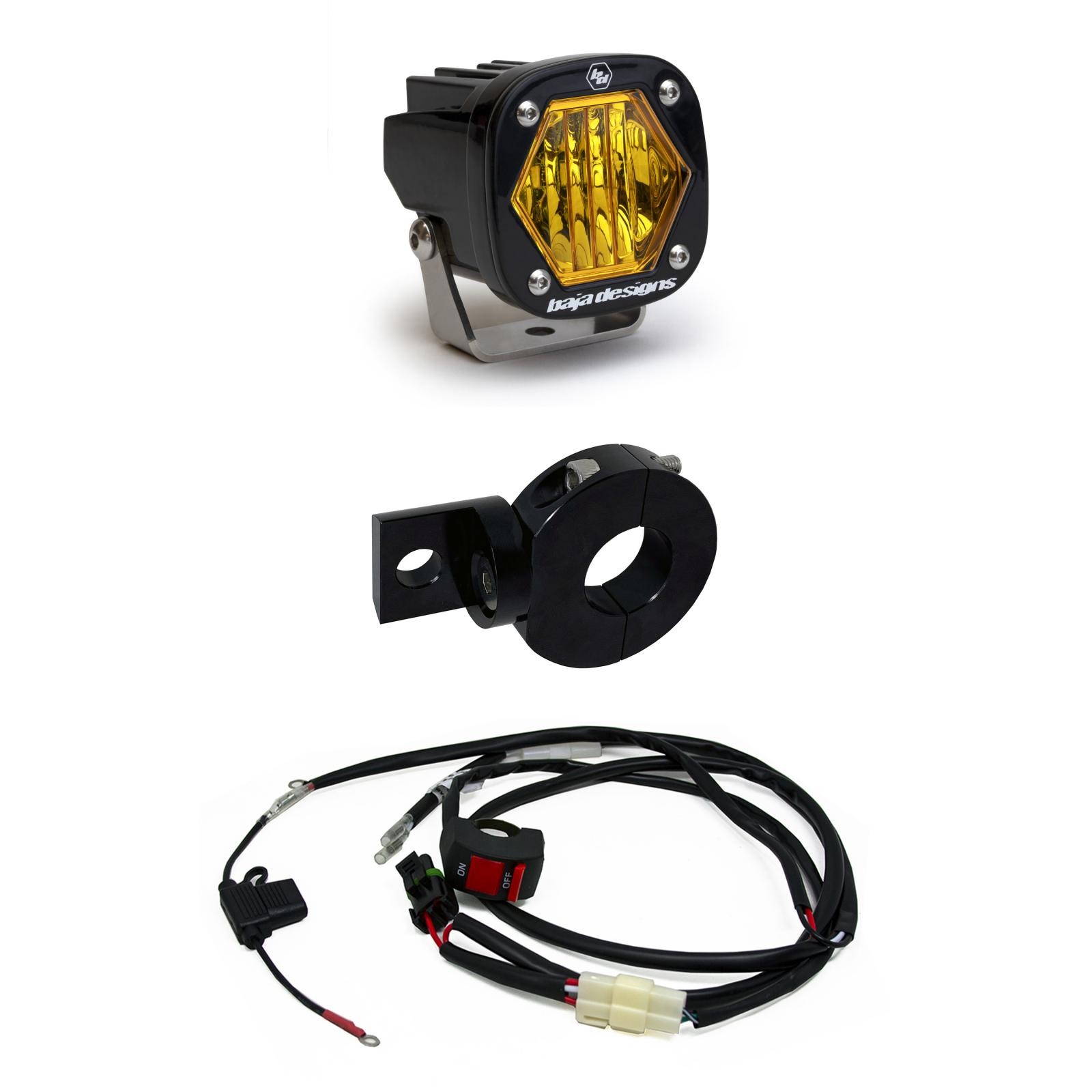

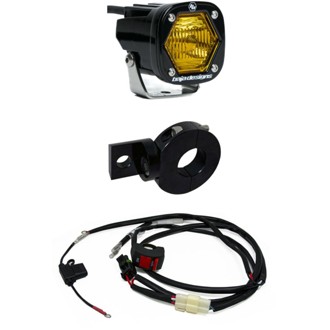

One Light Pod, Mounts, Hardware, Wiring Harness

Specifications

Amperage Rating (A)	1.420 specifications
Average Rated Life (hr.)	49,930 specifications
Beam Pattern	Wide Cornering specifications
Bezel Material	Billet Machined Aluminum specifications
Bracket Material	Stainless Steel
Brackets Included	Yes
Brightness (Lumens)	2320 specifications
Color	Baja Amber
Country Of Origin	USA
Depth (in.)	2.100 dimensions
Description	Wide Cornering; Amber; 7/8" Handlebar Mount specifications
Height (in.)	2.100 dimensions
Housing Color	Black specifications
Housing Material	Hard Anodized and Powder Coated Cast Aluminum specifications
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Length (in.)	2.100 dimensions
Lens Color	Amber specifications
Lens Material	Hardcoated Polycarbonate specifications
Life Span Expectancy	49,930 Hours
Light Quantity	1 specifications
Lighting Modes	Beam specifications
Lighting Quantity	1 specifications
Lighting Technology	LED specifications
Lighting Type	Forward Projecting specifications
Mounting Hardware Description	Mounting Brackets specifications
Mounting Hardware Included	Yes specifications
Mounting Hardware Material	Stainless Steel specifications
Overvoltage Protection	Built-In specifications
Product Type	Moto Electric Start Pit Bike S1 Auxiliary Light Kit specifications
Sold As	Kit
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing) standards & complian
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing) standards & complian
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable) standards & complian
Universal	No
UPC	810031744275
Voltage	9-28 specifications
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Wattage (W)	19.596 specifications
Weight (lbs.)	0.400 dimensions
Wiring Harness Included	Yes specifications
