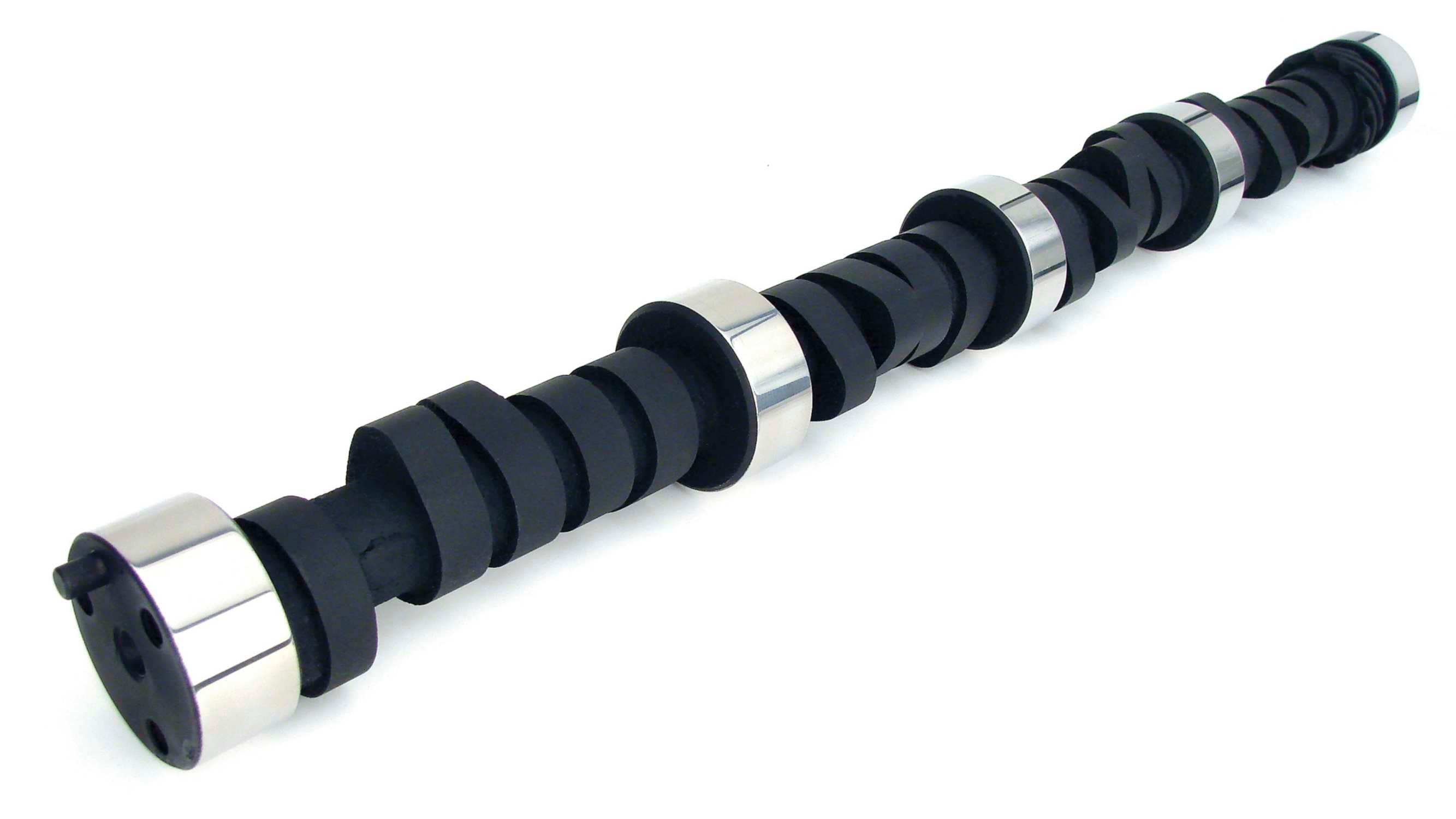

Camshaft CS XE250H-10

Description

excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-230-2 Grind #XE250H-10. Duration @ 0.006": 250 / 260deg. Duration @ 0.050": 206 / 212deg. Max Lift w/ 1.5RR: .432" / .444". Lobe Separation: 110deg. Lobe ID#'s: 5440 / 5207. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block. Bore: 4.040" Stroke: 3.480" Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R Intake: Edelbrock Performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 417 ft/lbs @ 3700 RPM. Max Power: 333 HP @ 4700 RPM. Manifold Vacuum: 19.5" Hg @ 800 RPM & 21" Hg @ 1000 RPM w/ no load.

Features & benefits

• Melling offers a full line of OE replacement and high performance camshafts for cars, light duty, medium duty and heavy duty trucks. Melling listings include OEM applications to match the engine requirements desired including horsepower, economy and needed engine torque. Melling camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials.
