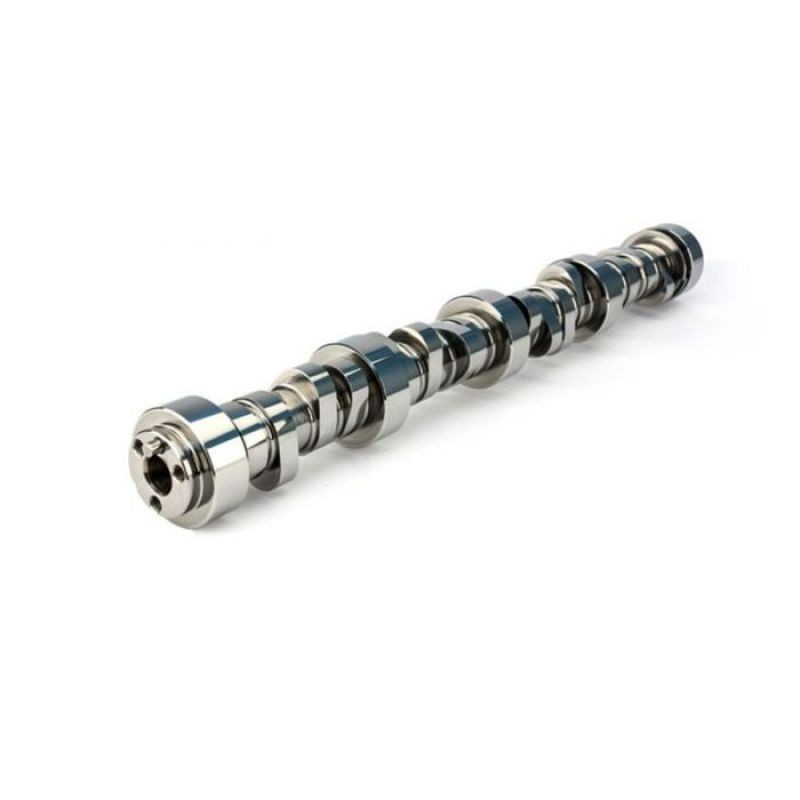

GM LS Gen III/IV 4.8L/5.3L/6.0L HV Camshaft 226/234 .575/.570 Hyd Roller

Part Number 54-275-11 (132829655)
Package contents: 1 Each per Box
MADE IN USA
$404.95 FREE SHIPPING

In stockShips by 19th Nov
FREE SHIPPING

Description

This COMP Cams HV cam is designed with a focus toward either drivability, towing and response in larger displacement (6.0L up) engines or moving peak torque to higher RPM in smaller displacement (4.8L & 5.3L) applications. Awesome performance gains with +94 horsepower at peak and increased torque from 2800 rpm up. Get the most out of your cruiser or daily driver while enjoying great street manners. The HV cam will provide a deep rumble with a noticeable lope. At .575" lift, this cam is designed to take advantage of the inexpensive 26906 valve spring upgrade. Also compatible with stock converters.

Features & benefits

  • Melling offers a full line of OE replacement and high performance camshafts for cars, light duty, medium duty and heavy duty trucks. Melling listings include OEM applications to match the engine requirements desired including horsepower, economy and needed engine torque. Melling camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials.

Specifications

Advance 4.5
Advertised Exhaust Duration 286 dd
Advertised Intake Duration 279 dd
Barcode 00036584426622
Basic Operating RPM Range 2700 - 6500
Cam Type Hydraulic Roller
Camshaft Intake Centerline 108
Camshaft Series HV
Computer Controlled Compatible Yes
Country Of Origin USA
Dimensions 24.45" x 3" x 2.85"
Direct Injection No
Engine Platform GM LS GEN III/IV
Exhaust Close ATDC 0
Exhaust Duration At .050 Inch Lift 234 dd
Exhaust Lobe Lift 0.335 in
Exhaust Open BBDC 54
Exhaust Valve Lash Hyd
Exhaust Valve Lift 0.57 in
Exhaust Valve Lift With Factory Rocker Arm Ratio 0.57 in
Factory Rocker Ratio 1.7
Fuel Management Strategy Compatible No
Grind Number LS279HV12
Intake Close ABDC 41
Intake Duration At .050 Inch Lift 226 dd
Intake Lobe Lift 0.338 in
Intake Open BTDC 5
Intake Valve Lash Hyd
Intake Valve Lift 0.575 in
Intake Valve Lift With Factory Rocker Arm Ratio 0.575 in
Lifter Type Hydraulic Roller
Lobe Separation 112.5 dd
Phaser Requirement None
Street Legal Yes
Usage Street
Valve Springs Required Yes
VVT Compatible No
Weight 10.05 lbs

Warranty

12 Months

About COMP Cams

COMP Cams® is the leading American manufacturer of high-quality, performance-based internal engine components, including camshafts, valve springs, rocker arms, lifters, pushrods, and other valve train components. We help our customers with innovative technological advancements through extensive research and development. Our quality workmanship and engineering ensure confidence for racers and street performance enthusiasts. COMP Cams is a proud member of the Edelbrock Group family of brands, which include Edelbrock®, FAST® (Fuel Air Spark Technology), TCI® Automotive, Russell® Performance and Lunati Power®. Headquartered in Olive Branch, Mississippi, COMP Cams remains an innovative American company focused on results-driven technology and superior customer support. We believe in the automotive lifestyle and continue to support the passion for our American pastime. For more information about the Edelbrock Group or any partner brands, visit www.edelbrockgroup.com.
