COMP Cams

Stage 2 LST Max HP Solid Roller Master Cam Kit for 3-Bolt LS w/ Stock Pistons

Part Number MK54-313-11 (132614741)

Package contents: 1 Kit per Box

Select vehicle for guaranteed fit

$3,006.50

Out of stock

Description

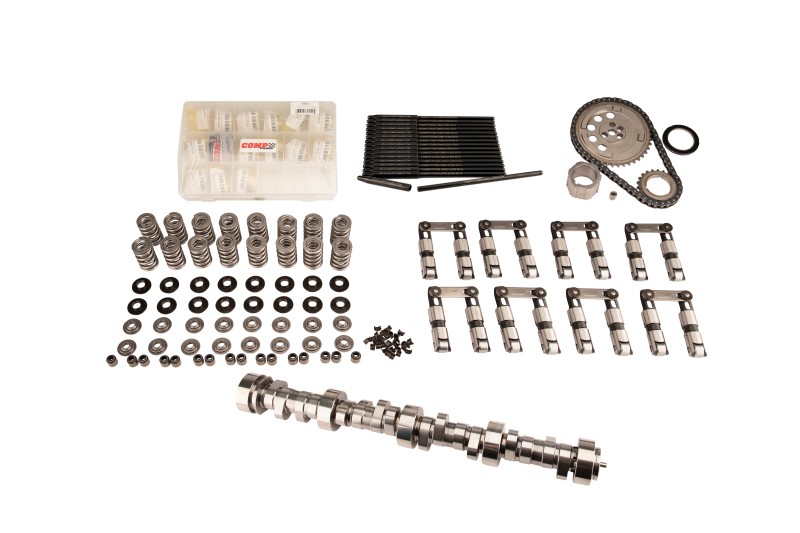

The Stage 2 Max Horsepower Solid Roller Master LS Cam Kit delivers max HP from 3,500-7,500 RPM in LS engines with factory valve relief pistons. Includes lifters, timing set, XD-A pushrods, springs, retainers, locks, spring seats and seals.

Features & benefits

New rocker arms should always be part of a new camshaft installation. To make selection of the desired combination of camshaft and rocker arms easier, offers camshaft / rocker arm kits that provide the camshaft and correct rocker arm combinations for your engine application. Melling camshaft and rocker arm kits include the camshaft, rocker arms and a 4 oz container of lube.

Specifications

Advertised Exhaust Duration	294 dd
Advertised Intake Duration	282 dd
Amazon ASIN	B07MSVHMSV
Assembly Lubricant Included	No
Barcode	00036584387442
Basic Operating RPM Range	3,300-7,500 r3
C.A.R.B. E.O. Number	N/A
C.A.R.B. Exempt For On-Road Vehicles?	No
C.A.R.B. Exemption Reason	N/A
Cam Type	Solid Roller
Camshaft Gear Attachment	3-Bolt
Camshaft Material	Billet Steel
Camshaft Series	Low Shock Technology
Country Of Origin	USA
Dimensions	0.1" x 0.1" x 0.1"
Engine Family	GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Estimated Horsepower Gain With Kit	93 hj
Exhaust Duration At .050 Inch Lift	254 dd
Exhaust Valve Lift	0.668 in
Gaskets Included	No
Grind Number	282LGW13
Intake Duration At .050 Inch Lift	242 dd
Intake Valve Lift	0.672 in
Kit Type	MK-Kit
Lifter Type	Solid Roller
Lifters Included	Yes
Lobe Separation	113 dd
Locks Included	Yes
Pushrods Included	Yes
Recommended Cam Install Kit For LS7	5622
Recommended Cam Install Kit For Non-LS7	5621
Recommended Cold Lash Setting - Exhaust	0.009 in
Recommended Cold Lash Setting - Intake	0.007 in
Recommended Max-Lift BSR Shaft Rocker System	1981-16 (LS1), 1982-16 (LS3), 1983-16 (LS7)
Recommended Upgraded Stock Rocker Arms	1477-16 (LS1), 1478-16 (LS3), 1479-16 (LS7)
Retainers Included	Yes
Stage	2
Street Legal	Yes - Except CA
Timing Set Included	Yes
Usage	Street/Strip
Valve Seals Included	Yes
Valve Spring Seats Included	Yes
Valve Springs Included	Yes
Weight	27.25 lbs

Warranty

12 Months
