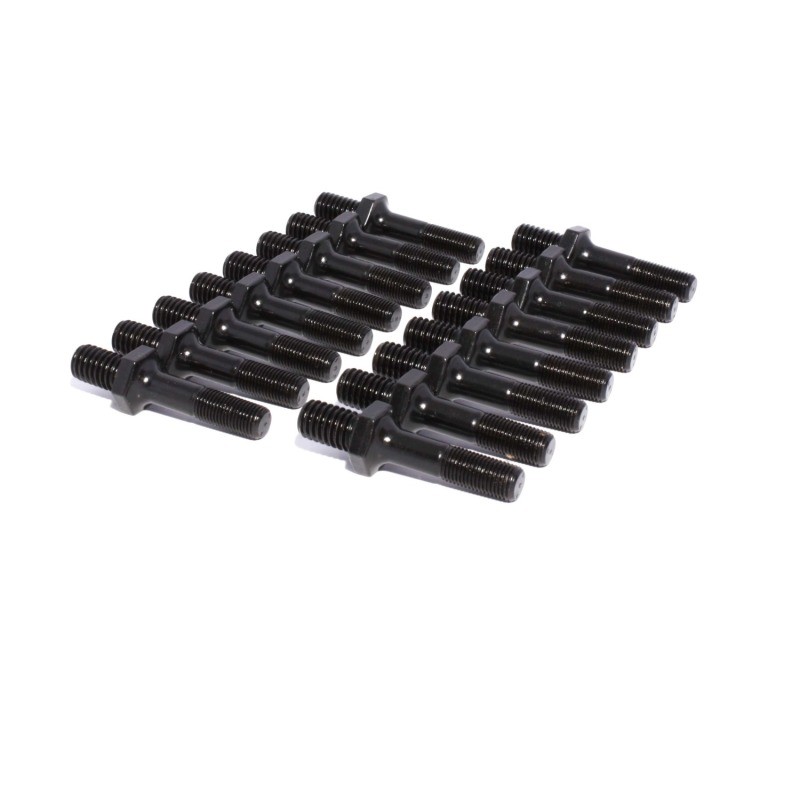

Studs 3/8 Hi-Tech

Description

COMP Cams takes pride in having the finest Rocker arm Studs available on the market. The High Energyâ„¢ and Magnum Series Studs work well in Applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required as with high rpm Roller Cam Applications, the Hi-Techâ„¢ Race Stud is the answer. This Stud has a thin jam nut for Rocker clearance, rolled threads for maximum contact and a ground-flat top so accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams Studs have generous radii and a black oxide finish. Designed for ultimate strength and locking force High Energy and Magnum polylocks are best for moderate lift and spring pressure Applications Hi-Tech Polylocks work well in all high end Race applications. The Stud girdle polylocks are precision ground for minimum runout and tapered for extra strength in the locking area.

Base Thread

Part # Description Diameter Length Stud Diameter Effective Stud Length

4505-16 Hi-Tech Race Rocker Stud 7/16" .680" 3/8" 1.750"

Features & benefits

• Melling recommends new rocker arm studs with every engine rebuild. Old studs are subject to metal failure, stud stretching, and worn threads. Studs also tend to be lost or damaged during the rebuilding process. There is also a danger of metal cracking when the old rocker arm stud is removed from the head. Melling rocker arm studs are manufactured to high quality and material standards. Using new rocker arm studs assures proper installation and valve train adjustment.
