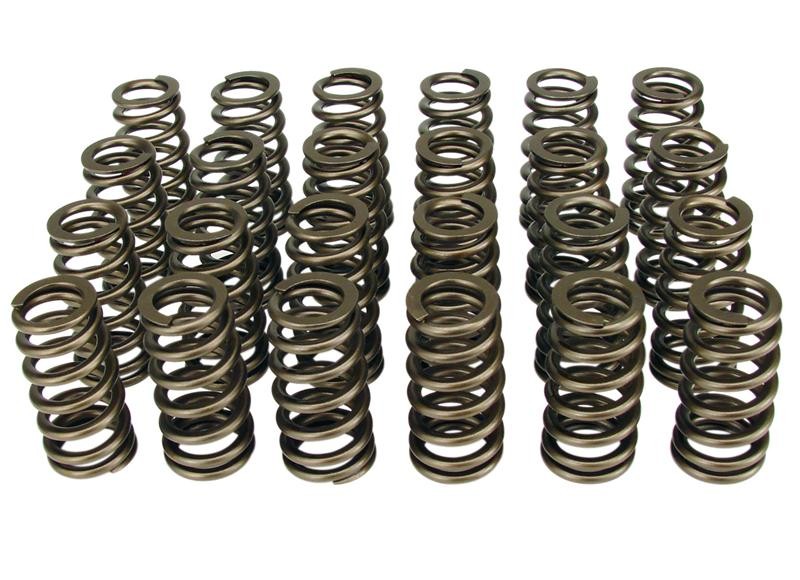

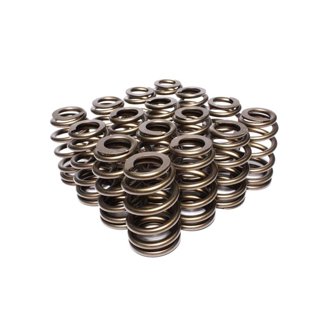

Race Sportsman 1.454" OD Beehive Springs, 1.800" Installed Height, 16 Springs

Part Number 26056-16 (132976330)
Package contents: 1 Set per Box
MADE IN USA
$387.18

In stockShips by 18th Nov

Description

COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

Part #
OD
ID
Seat Load
Open Load
Coil Bind
Rate (Lbs./In.)
Titanium Retainer
Steel Retainer
Cup Seat
Shims

26056
Top Bottom
1.1851.454
.7311.000
160 @ 1.800
420 @ 1.150
1.100
400
785
703, 705
4696, 4697, 4704
4757

Specifications

Amazon ASIN B002EE0BLS
Barcode 00036584188148
C.A.R.B. E.O. Number N/A
C.A.R.B. Exempt For On-Road Vehicles? Yes
C.A.R.B. Exemption Reason No impact on pollution output of vehicle.
Coil Bind Height 1.1 in
Compatible .570" Guide Diameter Spring Seats 4696-16
Compatible .630" Guide Diameter Spring Seats 4697-16
Compatible Retainer 785-16
Compatible Shims 4757
Compatible Spring Cup (O.D. Locator) 4704-16
Country Of Origin USA
Damper No
Dimensions 13.3" x 3.8" x 2.9"
Number Of Springs 1
Outer Bottom Spring Inside Diameter 1 in
Outer Bottom Spring Outside Diameter 1.454 in
Outer Top Spring Inside Diameter 0.731 in
Outer Top Spring Outside Diameter 1.185 in
Seat Height 1.8 in
Seat Pressure 160 ps
Spring Rate 400 ppi
Street Legal Yes
Valve Spring Series Race Sportsman
Weight 3.6 lbs

Warranty

12 Months
