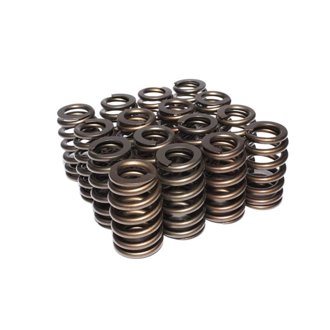

Performance Street 1.240" OD Beehive Spring, 1.700" Installed Height, 16 Springs

Part Number 26981-16 (132703112)
Package contents: 1 Set per Box
Select vehicle for guaranteed fit
MADE IN USA
$325.05

In stockShips by 18th Nov

Description

With a .525" maximum lift, these Beehive Valve Springs were designed for hydraulic or Solid flat tappet as well as hydraulic Roller cams. They work in most Small Block Chevy heads with no machining. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

Part #
OD
ID
Seat Load
Open Load
Coil Bind
Rate (Lbs./In.)
Titanium Retainer
Steel Retainer
Cup Seat
Shims

26981
Top Bottom
1.0651.240
.650.825
110 @ 1.700
292 @ 1.175
1.115
347
788
1787, 787, 795
4693
4753

Specifications

Amazon ASIN B0014F35M0
Barcode 00036584126409
C.A.R.B. E.O. Number N/A
C.A.R.B. Exempt For On-Road Vehicles? Yes
C.A.R.B. Exemption Reason No impact on pollution output of vehicle.
Coil Bind Height 1.115 in
Compatible .570" Guide Diameter Spring Seats 4693-16
Compatible Retainer 795-16
Compatible Shims 4753
Country Of Origin USA
Damper No
Dimensions 10.25" x 3" x 2.25"
Number Of Springs 1
Outer Bottom Spring Inside Diameter 0.825 in
Outer Bottom Spring Outside Diameter 1.24 in
Outer Top Spring Inside Diameter 0.65 in
Outer Top Spring Outside Diameter 1.065 in
Seat Height 1.7 in
Seat Pressure 110 ps
Spring Rate 347 ppi
Street Legal Yes
Valve Spring Series Performance Street
Weight 3 lbs

Warranty

12 Months
