Deka

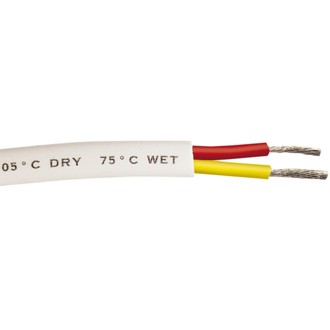

UL Listed 1426 Tinned Multi Conductor Wire/Cable

Name: UL Listed 1426 Tinned Multi Conductor Wire/Cable
Brand: Deka
SKU: 101677194
Availability: OutOfStock

Part Number 04524 (101677194)

Color

Unavailable

Description

UL/CSA Listed, multi-conductor tinned wire with a white jacket ideal for use in the high corrosive environment of marine applications. The special electro-tinned copper strands also increase protection against corrosion for recreational vehicles, automotive, trucks, and trailers. The tinned copper stranding is extremely flexible for easy routing through marine applications and easier to solder than bare copper. This product is made of flame retardant, PVC insulation that is highly resistant to water, oil, grease, gasoline, and other damaging solvents. The high voltage tolerance of up to 600 volts adds to the versatility of its use in multiple marine and other suitable applications.

Features & benefits

Manufactured in Kutztown, PA.

Specifications

Color	YELLOW/RED
Conductor Material	TINNED COPPER
Country Of Origin	USA
Freight Class	70
Gauge	10
Length	100 FT
NMFC	30310
Nominal OD	0.263 X 0.456
Stranding	104/30
Temperature Rating	105C
Voltage	600
Wet Temperature Rating	75C
