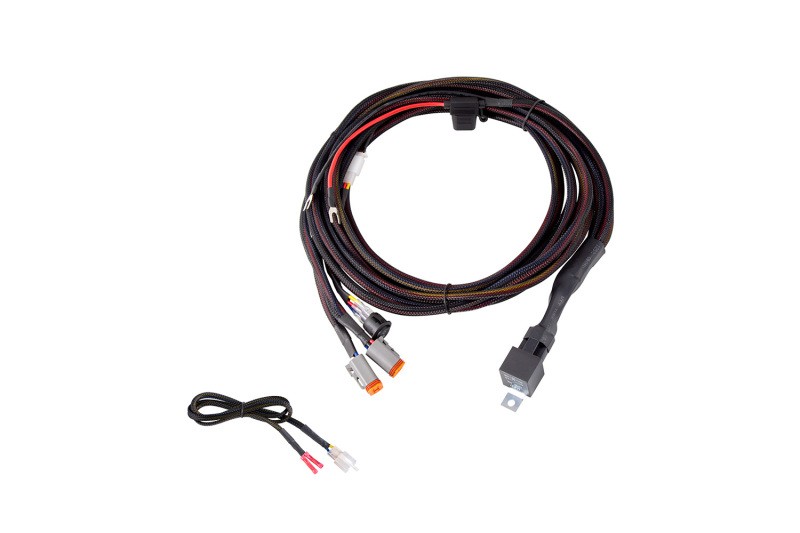

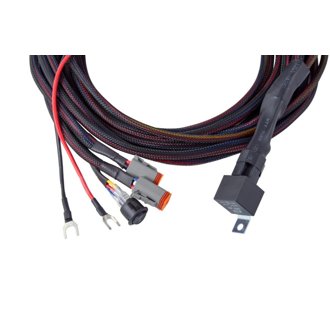

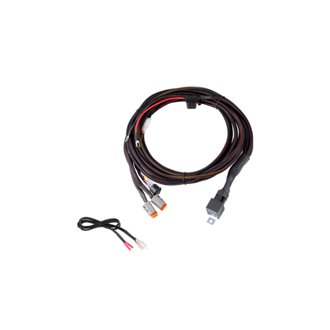

Connects Directly To The Battery To Power Your Offroad Lighting.

Description

<p><strong>Features</p></strong> <ul> <li>Powers Diode Dynamics LED pods with backlight functionality.</li> <li>Connects directly to the battery to power your LED pods.</li> <li>High capacity 14AWG wiring.</li> <li>Dual Deutsch DT output connectors.</li> <li>30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.</li> </ul> <p><strong>Overview</p></strong> <p><strong>Stage Series.</strong> This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.</p> <p>This harness safely powers up to <strong>25A of auxiliary lamps</strong>. Please refer to the current draw data below.</p> <ul> <li>C1 Sport: 1.2A</li> <li>C1 Pro: 1.7A</li> <li>SSC2 Sport: 0.6A</li> <li>SSC2 Pro: 1.75A</li> <li> SS3 Non-Backlit Sport: 2.9A</li> <li> SS3 Non-Backlit Pro: 1.2A</li> <li> SS3 Non-Backlit Max: 3.3A</li> <li>SS3 Backlit Sport: 1.06A </li> <li>SS3 Backlit Pro: 2.87A </li> <li> SS5 Sport: 2.8A</li> <li> SS5 Pro: 6.7A</li> </ul> <p><strong>Control through OEM Aux Switches.</strong> This harness includes an OEM aux switch adapter wire that allows you to control your lights using a factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the included toggle switch adapter wire to mount a switch.</p>

Diode Dynamics is a manufacturer of automotive LED lighting products. Founded in 2006, we focus on the development of unique products, incorporating the latest LED and optical technology. By directly manufacturing many of our products in St. Louis, Missouri, we are able to carefully control quality, while bringing unique items to market faster than the competition. We back our products with an industry-leading no-hassle warranty, and the best service and support experience possible. Whether it's replacement LED bulbs, full LED assemblies, multicolor accents, or unique lighting control modules, Diode Dynamics is the leader in specialty LED lighting.

Features & benefits

• Connects directly to the battery to power your offroad lighting
• High capacity 14AWG wiring

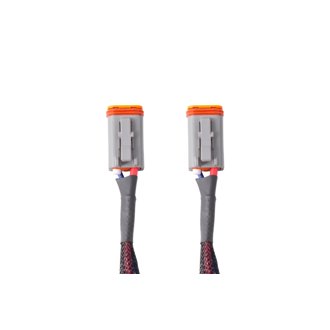

• Dual Deutsch DT output connectors
• Black wire sheathing to protect cables
• 25A waterproof fuse and 60 amp 12V relay to safeguard the electrical systems in your offroad lighting</p>
• 25A waterproof fuse and 60 amp 12V relay to safeguard the electrical systems in your offroad lighting
• battery to power your offroad lighting
• Connects directly to the&nbsp
• Intense Focus on Quality
• US-Based Company
• Industry Leading Warranties
