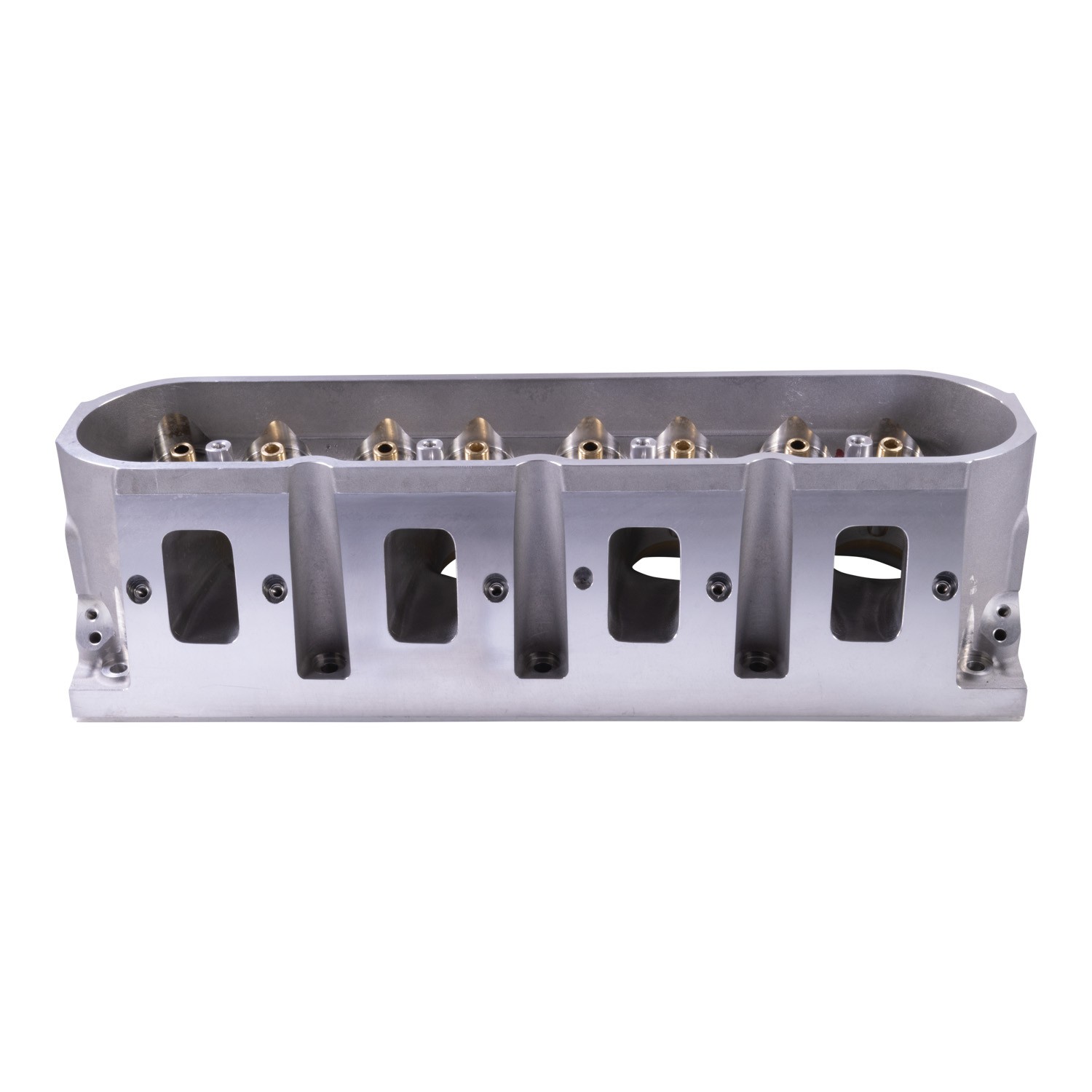

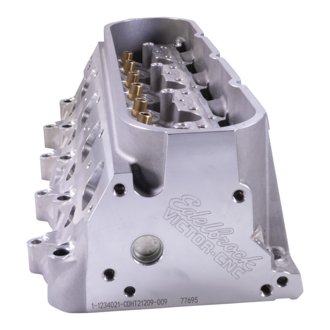

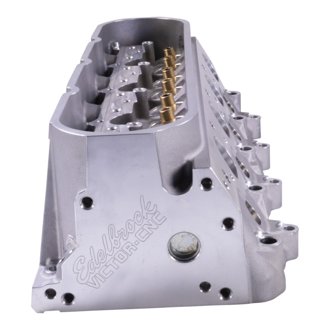

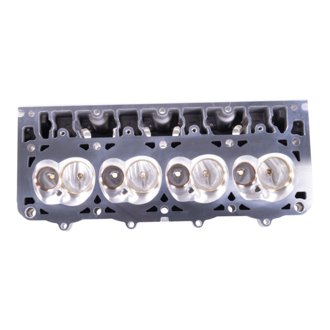

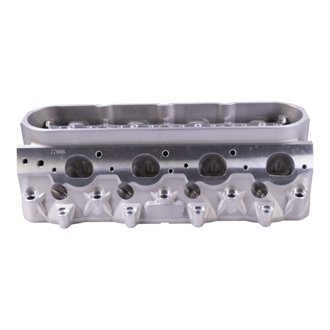

Victor CNC LS7 307cc 2.250" x 1.615" VJ, Copper , Bare

Description

The Edelbrock Victor CNC 12 6-Bolt Head for GM LS7 291cc/69cc Individual #77666 is designed for maximum effort naturally aspirated and boosted applications. It features .220 raised intake runners and .100 raised exhaust ports that provide a better line of sight into the cylinders and allow for an improved short turn. The raised intake runner design fits both stock and aftermarket LS7 intake manifolds and can be used with stock or aftermarket valve trains. The head utilizes the GM LS 6-bolt design, making it compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and improves head gasket sealing – ideal for high compression naturally aspirated engines and high boost applications. Features include a 12-degree valve angle and fully CNC-machined ports for maximum airflow. CNC-machined runners and chambers, as well as the .220 raised intake ports and 12-degree valve angle, increase overall flow capability, while a revised water jacket design enhances thermal conductivity and tunability. The manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700 thick deck and .400 raised valve cover rail make this head ideal for maximum horsepower and high valve lift applications. All Edelbrock Victor CNC heads feature patented Clean Cast Technology(TM) , a process that eliminates casting flaws and promotes a smoother internal surface finish for greater air and coolant flow. These benefits provide more power and increased cooling ability. Part #77666 is a bare head that features: 307cc runners, 69cc chambers, 2.250 intake/1.615 exhaust valves, copper valve seats and no down nozzles.

Edelbrock® LLC is one of the nation's premier designers, manufacturers, and distributors of performance and replacement parts for the automotive aftermarket. Our line of products includes camshafts, carburetors, crate engines, cylinder heads, engine dress-up kits, fittings, fuel injection, fuel systems, gaskets, ignition, intake manifolds, sensors, superchargers, thermostats, tools, turbochargers, valve train components, and water pumps. Edelbrock is a proud member of the Edelbrock Group family of brands, including COMP Cams®, FAST® (Fuel Air Spark Technology), TCI® Automotive, Russell® Performance and Lunati Power®, representing over 130 years of performance. Headquartered in Olive Branch, Mississippi, Edelbrock focuses on the future with more innovative parts, creating more opportunities for our customers to go fast. For more information about the Edelbrock Group or any partner brands, visit www.edelbrockgroup.com.

When you design and sell the best-engineered performance products in the world, you have to have a rigorous testing program. Why? Without adequate testing, there's no way to stand behind your product with confidence. That's why every product we design and sell at Edelbrock is tested and approved by Edelbrock engineers in a real world environment on state-of-the-art equipment. Our three Super Flow computerized engine dynos are capable of measuring 11 separate engine variables up to speeds of 12,000 rpm. For 2007, we added a new Super Flow SF902 engine dyno. It's fully automated and programmable to simulate various driving situations, and is equipped with WinDyn software for the very latest in testing equipment. For real-world tuning, there's our Super Flow model SF-840 eddy-current chassis dyno that can handle up to 1,000 hp at the wheels and speeds of 200 mph. When all testing is completed, the results evaluated, and the part has passed all performance criteria, then, and only then, is the product deemed ready for production. These precise testing procedures are applied to the entire Edelbrock line for performance that's guaranteed. Edelbrock test vehicles are driven by Edelbrock engineers and employees to get a "real world" feeling for the performance improvements. Our products are also tested and used by professional race car teams and drivers. Working with these talented individuals is just another extension of our research and development process so when we say "proven performance" we really mean it! Top racing teams in all forms of motorsports rely on Edelbrock to produce parts that they can count on to win races and championships. Further underscoring our commitment to the racing community, Edelbrock is the only aftermarket intake manifold manufacturer licensed by NASCAR.

Features & benefits

• Premium 110 BHN aluminum alloy, .220" raised intake port, .100" raised exhaust port, Copper valve seats, 307cc or 291cc intake port volume, 2.250" or 2.200" x 1.615" valve job
• Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.

Specifications

Warranty

12 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
