Lighting Stator RM125 (87-91) RM250 (87-93)

Description

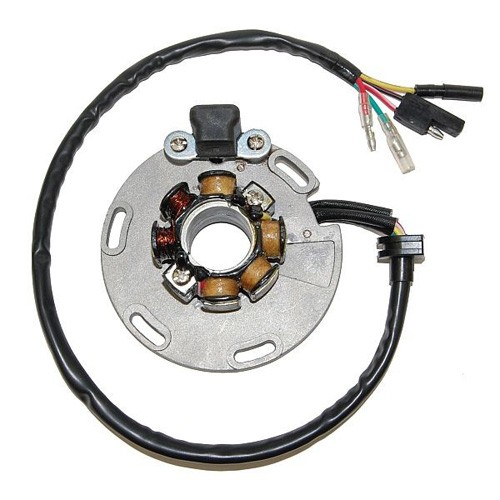

A complete lighting stator for your Suzuki RM that replaces the OE stator in your bike

Aluminum plate with 6-pole stator coil mounted, complete with wire leads, pulser and connectors, ready to plug in

This stator is a very cost effective and high quality replacement for the OE stator, and it provides a nice lighting output as well

We recommend using a 35W halogen bulb in your headlight, and safeguarding the system with our 344225 AC Voltage regulator

Plate Outside Diameter: 110mm

Stator Outside Diameter: 59mm

Resistance RED/BLACK - WHITE/RED: 195-230 (Source Coil)

Resistance GREEN - RED: 93-112 (Pickup Coil)

Resistance YELLOW - Ground: 0.8-1.2 (Lighting Coil)

One year warranty
